The Model 1053AS miniature high-speed digital modem offers multi-rate Async/Sync speeds to 115.2/128 kbps with
transparent modem signal controls. This 2-wire full-duplex modem uses 2B1Q modulation for superior noise immunity.
Multi-Rate Speeds
Full-duplex synchronous rates to 128 kbps and
asynchronous rates to 115.2 kbps
Noise Immunity
The 1053AS uses 2B1Q for improved perform-
ance in noisy environments
Pass RS-232 Control Signals
Transparently passes CTS, RTS, and DCD over
the 2-wire line
Long Reach
Industry leading distances of over 26,000 feet (8
km) without repeaters
Power Options
Universal AC power (90–260 VAC) as well as -12,
-24, & -48 VDC
Connectivity: WAN Products
High Speed Serial Extender
Model 1053AS

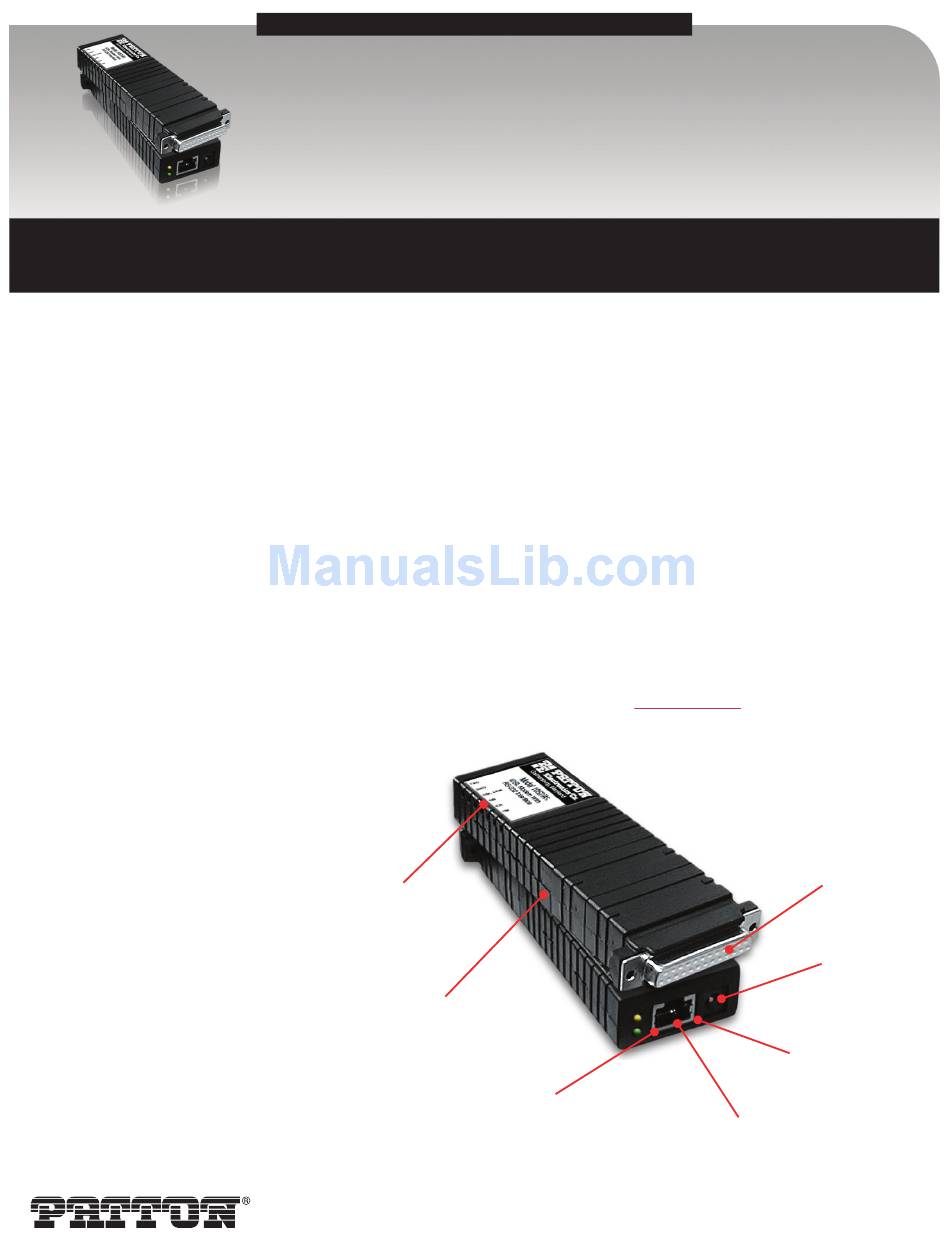

P atton's Model 1053AS is a long-range
powered, digital modem that operates
synchronously or asynchronously at
full duplex over a single twisted pair. The
Model 1053AS utilizes 2B1Q modulation for
superior signal strength even in the noisiest
environments. RS-232 serial connections
with speeds of 128 kbps can now be extend-
ed to distances over 5 miles (8 km) without
the use of repeaters! Using ordinary voice-
grade wire, the 1053AS Serial Extender pro-
vides a cost-effective solution for high speed,
dedicated end-to-end connections with syn-
chronous line rates up to 128 kbps and asyn-
LED indicators
Transparently passes RS-232
control signals
2-Wire full-duplex up to 128 kbps
Sync and 115.2 kbps Async
chronous line rates up to 115.2 kbps that
include RTS, CTS and DCD modem signals.
The Model 1053AS modem's miniature size
allows for a direct connection to your trans-
mission devices serial port. Two 8-position
DIP switches are located at the bottom of the
unit to allow the configuration of various
asynchronous or synchronous line rate set-
tings. Additionally, LEDs are conveniently
located on the side of the Model 1053AS to
provide at-a-glance status indication of the
unit.
For more information, visit
www.patton.com.
Interface options include
RS-232, DB-25, or DB-9
5 mile (8 km) reach
in noisy environments
Transformer isolation of
1500 VRMS
AC or DC
power options
