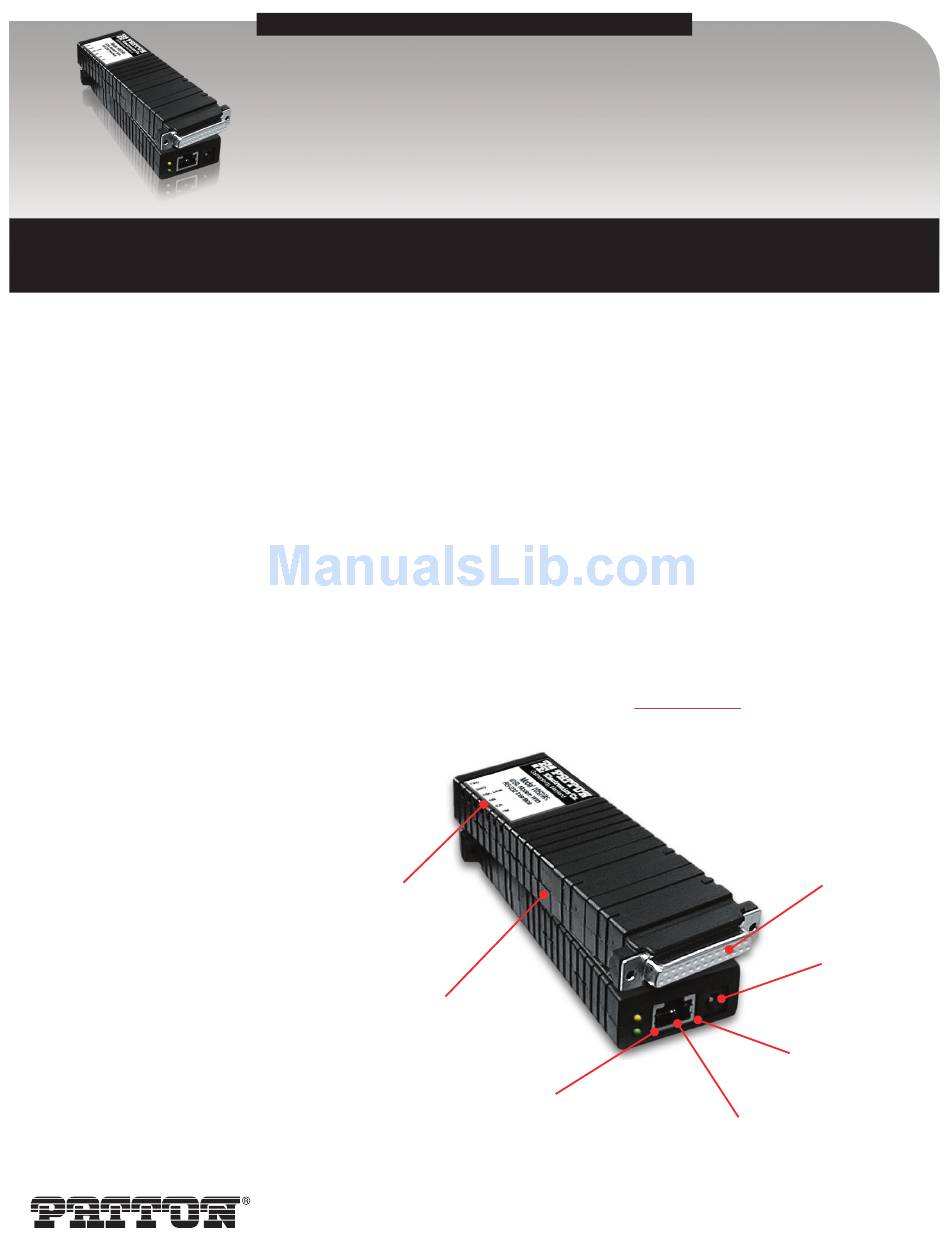

The Model 1052AS miniature digital modem offers multi-rate Async/Sync speeds to 38.4/128 kbps while transparently
passing modem control signals. This 2-wire full-duplex modem uses 2B1Q modulation for superior noise immunity.
Multi-Rate Speeds
Full-duplex synchronous rates to 128 kbps and
asynchronous rates to 38.4 kbps.
Noise Immunity
The 1052AS uses 2B1Q for improved perform-
ance in noisy environments.
Pass RS-232 Control Signals
Transparently passes CTS, RTS, and DCD over
the 2-wire line
Long Reach
Industry leading distances of over 26,000 feet (8
km) without repeaters
Power Options
Universal AC power (90–260 VAC) as well as -12,
-24, & -48 VDC
Connectivity: WAN Products
RS-232 Serial Extender
Model 1052AS
P
atton's Model 1052AS is a long-range
powered, RS-232 digital modem.
Operating synchronously or asynchro-
nously at full duplex over a single twisted
pair, the Model 1052AS uses 2B1Q modula-
tion for superior signal strength even in nois-
iest environments. RS-232 serial connections
can now be extended to distances over 5
miles (8 km) without the use of repeaters!
Using ordinary voice-grade wire, the 1052AS
RS-232 Serial Extender provides a cost-
effective solution for dedicated end-to-end
connections with synchronous line rates up
to 128 kbps and asynchronous line rates up
Transparently passes RS-232
control signals
2-Wire full-duplex up to 128 kbps
Sync and 115.2 kbps Async
to 38.4 kbps including RTS, CTS and DCD
modem signals.
The miniature size of the Model 1052AS
allows for a direct connection to your trans-
mission devices serial port. LEDs are conve-
niently located on the side of the Model
1052AS to provide at-a-glance status indica-
tion of the unit. Additionally, two 8-position
dip switches are located at the bottom of the
unit to allow the configuration of various
asynchronous or synchronous line rate set-
tings.
For more information, visit
www.patton.com.
Interface options include
RS-232, DB-25, or DB-9
5 mile (8 km) reach
in noisy environments
Transformer isolation of
1500 VRMS
AC or DC
power options
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patton 1052AS
Summary of Contents for Patton 1052AS
- Page 1 The Model 1052AS miniature digital modem offers multi-rate Async/Sync speeds to 38.4/128 kbps while transparently passing modem control signals. This 2-wire full-duplex modem uses 2B1Q modulation for superior noise immunity. Multi-Rate Speeds Full-duplex synchronous rates to 128 kbps and asynchronous rates to 38.4 kbps.
-
Page 2: Typical Application
Typical Application The Patton Model 1052AS offers premium performance using the most common, inexpen- sive cabling infrastructure in the world, voice-grade telephone wire. Using 2B1Q modula- tion a serial port can be extended to distances of over 5 miles (8 km).
