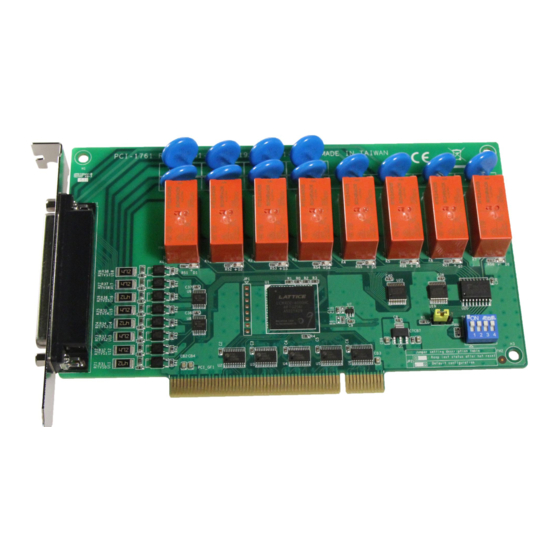

- Page 2 User Manual PCI-1761 8-ch Relay & 8-ch Isolated Digital Input PCI Card Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 3 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 4 EMI leakage, we strongly recommend the use of CE-compliant industrial enclo- sure products. Technical Support and Assistance Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance.
- Page 5 The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than 70 dB (A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein.
-
Page 6: Table Of Contents
Table C.2: Register for Relay Output Status......25 Table C.3: Register for Relay Output ......... 25 Isolated Digital Input Registers - BASE+1H ..........25 Board ID - BASE+2H ................25 PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 7 Interrupt Status Register - BASE+3H/4H/5H .......... 26 Table C.5: Register for Interrupt Status ........26 Interrupt Control Register - BASE+3H/4H/5H ......... 27 Table C.6: Register for Interrupt Control........27 PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 8: Chapter 1 Overview
Chapter Overview Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 9: Introduction
When the system has undergone a hot reset (i.e. without turning off the system power), the PCI-1761 can either retain outputs values of each channel, or return to its default configuration as open status, depending on its on-board jumper setting. This function protects the system from wrong operations during unexpected system resets. -
Page 10: Applications
Plug-and-Play function. Board ID The PCI-1761 has a built-in DIP Switch that helps define each card's ID when multi- ple PCI-1761 cards have been installed on the same PC chassis. The board ID set- ting function is very useful when users build their system with multiple PCI-1761 cards. -
Page 11: Software Overview
Read examples and driver manual Start to write your own application Figure 1.1 Installation Flow Chart Software Overview Advantech offers a rich set of DLL drivers, third-party driver support and application software to help fully exploit the functions of your PCI-1761 card: Device Drivers (on the companion DVD-ROM) ... -
Page 12: Accessories
(desktop mode) works seamlessly with development tools such as Visual Studio .Net, Visual C++, Visual Basic and Borland Delphi. Accessories Advantech offers a complete set of accessory products to support the PCI-1761 card. These accessories include: Wiring Cable The PCL-10137 shielded cable is specially designed for PCI-1761 cards to provide high resistance to noise. - Page 13 PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 14: Chapter 2 Installation
Chapter Installation Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 15: Unpacking
Unpacking After receiving your PCI-1761 package, please inspect ita contents first. The package should contain the following items: PCI-1761 card Companion CD-ROM (DLL driver included) Startup Manual Switch and Jumper Settings The PCI-1761 card has one function switch settings. -
Page 16: Table 2.2: Board Id Setting (Sw1)
Board ID (SW1) The PCI-1761 has a built-in DIP switch (SW1), which is used to define each card’s board ID. When there are multiple cards on the same chassis, this board ID switch is useful for identifying each card’s device number. -
Page 17: I/O Connectors
I/O Connectors Pin Assignments Figure 2-2 shows the pin assignments for the 37-pin I/O connector on the PCI-1761 Figure 2.2 I/O Connector Pin Assignments PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 18: Hardware Installation
A complete device installation procedure should include device setup, configuration and testing. The following sections will guide you through the Setup, Configuration and Testing of your device. PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 19: Device Setup & Configuration
Device Setup & Configuration The Advantech Navigator program is a utility that allows you to set up, configure and test your device, and later stores your settings on the system registry. These settings will be used when you call the APIs of Advantech Device Drivers. -
Page 20: Chapter 3 Signal Connections
Chapter Signal Connections Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 21: Overview
This chapter provides useful information about how to connect input and output signals to the PCI-1761 via the I/O connector. Isolated Digital Input Connections The PCI-1761 has 8 isolated digital input channels designated IDI0~IDI7. Each of isolated digital input channel accepts 10~50 V voltage inputs, and accept bi-direc- tional input. -
Page 22: Relay Connections
Relay Connections After power on, the initial relay output status of PCI-1761 is shown as below: Figure 3.2 Relay Output Connection A write operation to I/O address, BASE +0, will change the output status of each relay. For example, if Bit 0 of BASE +0 is set "1" (logic high), relay 0, K0, will switch from position "NORMALLY CLOSED", R0_NC, to position "NORMALLY OPEN",... - Page 23 PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 24 Appendix Specifications Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 25: Appendix A Specifications
Operating Time Typical. 7 ms, Max. 15 ms Releasing time Typical. 2 ms, Max. 6ms Life Expectancy 2 x 10 cycles min. @ 2A/250V PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 26: Table A.3: General Specifications
Temperature Operating 0 ~ +60°C (32 ~ 140°F) Storage -20 ~ +70°C (-4 ~158°F) Relative Humidity 5 - 95 % RH non-condensing Certifications CE/FCC PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 27 PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 28: Appendix B Block Diagram
Appendix Block Diagram Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 29: Block Diagram
Block Diagram Appendix PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 30: Appendix C Register Structure And Format
Appendix Register Structure and Format Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 31: Overview
For example, BASE+0 is the card's base address and BASE+7 is the base address plus seven bytes. Table C-1 shows the function of each register of the PCI-1761 or driver and its address relative to the card's base address. -
Page 32: Relay I/O Registers - Base+0H
C.3 Relay I/O Registers - BASE+0H The PCI-1761 offers 8-ch relay actuators. These I/O channels use the input and out- put ports at addresses BASE+0H. Table C.2: Register for Relay Output Status Read Relay Output Status Bit # BASE +0H Table C.3: Register for Relay Output... -
Page 33: C.6 Interrupt Status Register - Base+3H/4H/5H
The interrupt can be triggered by a rising edge or falling edge of the interrupt signal, as determined by the value in this bit. Rising edge trigger Falling edge trigger PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 34: C.7 Interrupt Control Register - Base+3H/4H/5H
Rising edge trigger Falling edge trigger Appendix PCI-1761 User Manual Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 35 All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2007 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
