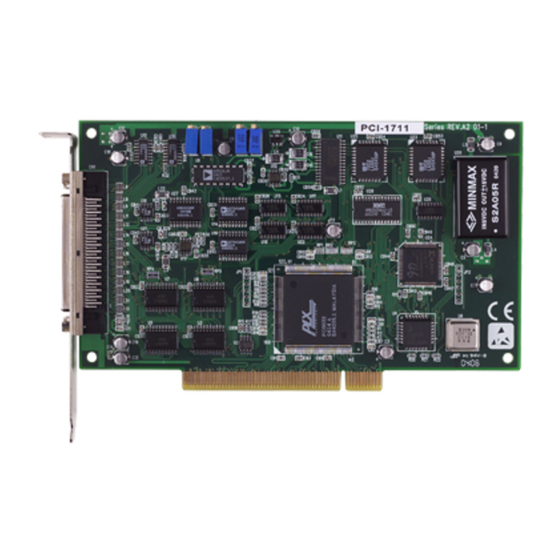

- Page 1 PCI-1711U Series Entry-level 100 kS/s, 12-bit, 16-ch PCI Multifunction Card User Manual...
- Page 2 No part of this man- ual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reli- able.
- Page 3 Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or...
- Page 4 This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information.
-
Page 5: Table Of Contents
Accessories................ 9 Chapter 2 Installation ............. 12 Unpacking ............... 12 Driver Installation ............13 Figure 2.1:Setup Screen of Advantech Automation Soft- ware 14 Figure 2.2:Different Options for Driver Setup .... 14 Hardware Installation ............15 Device Setup & Configuration ........16 Figure 2.3:The Device Manager Dialog Box .... - Page 6 VR Assignment .............. 39 Figure C.1:PCI-1711U VR Assignment ...... 39 A/D Calibration ............... 40 D/A Calibration (PCI-1711U)......... 40 PCI-1711U Series User Manual...
- Page 7 Introduction...
-
Page 8: Chapter 1 Introduction
The following sections of this chapter will provide further information about features of the multifunction cards, a Quick Start for installation, together with some brief information on software and accessories for the PCI-1711U cards. PCI-1711U Series User Manual... -
Page 9: Features
1.1 Features • 16 single-ended inputs • 12-bit A/D converter, up to 100 kHz sampling rate • Programmable gain for each input channel • Automatic channel/gain scanning • Onboard 1K word FIFO buffer with software selectable interrupt • 16 digital inputs and 16 digital outputs, TTL compatible •... -
Page 10: Applications
Note: For detailed specifications of the PCI-1711U/UL, please refer to Appendix A. 1.2 Applications • Transducer and sensor measurements • Waveform acquisition and analysis • Process control and monitoring • Vibration and transient analysis PCI-1711U Series User Manual... -
Page 11: Installation Guide
Before you install your PCI-1711U/UL card, please make sure you have the following necessary components: • PCI-1711U/UL DA&C card • PCI-1711U/UL User Manual • Driver software Advantech DLL drivers (included in the companion CD-ROM) • Personal computer or workstation with a PCI-bus slot (running Win- dows 2000/XP/7) •... -
Page 12: Figure 1.1:Installation Flow Chart
Figure 1.1: Installation Flow Chart PCI-1711U Series User Manual... -
Page 13: Software Overview
Device Drivers Advantech Device Driver software is included on the companion CD- ROM at no extra charge. It also comes with all Advantech DA&C cards. Advantech’s Device Drivers features a complete I/O function library to help boost your application performance. Advantech Device Drivers for Windows 2000/XP/7 works seamlessly with development tools such as Visual Studio .Net, Visual C++, Visual Basic, Borland C++ Builder and... - Page 14 Device Drivers chapter and the Function Overview chapter on the Device Drivers Manual. Programming with Device Drivers Function Library Advantech Device Drivers offer a rich function library that can be utilized in various application programs. This function library consists of numer- ous APIs that support many development tools, such as Visual Studio .Net, Visual C++, Visual Basic, Delphi and C++ Builder.
-
Page 15: Accessories
Alternatively, you can refer to the Device Drivers Error Codes Appendix in the Device Drivers Manual for a detailed listing of Error Codes, Error IDs and Error Messages. 1.6 Accessories Advantech offers a complete set of accessory products to support the PCI-1711U/UL card. These accessories include: Wiring Cables PCL-10168 The PCL-10168 cable is a 68-pin SCSI shielded cable for PCI-1711U/UL cards. - Page 16 PCI-1711U Series User Manual...
- Page 17 Installation...
-
Page 18: Chapter 2 Installation
• Avoid physical contact with materials that could hold static electricity such as plastic, vinyl and Styrofoam. • Whenever you handle the card, grasp it only by its edges. DO NOT TOUCH the exposed metal pins of the connector or the electronic com- ponents. PCI-1711U Series User Manual... -
Page 19: Driver Installation
The Advantech Device Drivers Setup program for the PCI-1711U/UL card is included in the companion CD-ROM that is shipped with your DA&C card package. Please follow the steps below to install the driver software: Insert the companion CD-ROM into your CD-ROM drive. -
Page 20: Figure 2.1:Setup Screen Of Advantech Automation Soft Ware
Figure 2.1: Setup Screen of Advantech Automation Software Select the Device Manager option to install. Select the Individual Driver option. Select the specific device then follow the installation instructions step by step to complete your device driver installation and setup. -
Page 21: Hardware Installation
Plug in the power cord and turn on the computer. After your card is properly installed on your system, you can now config- ure your device using the Advantech Device Manager Program that has itself already been installed on your system during driver setup. A com- plete device installation procedure should include device setup, configu- ration and testing. -
Page 22: Device Setup & Configuration
2.4 Device Setup & Configuration The Advantech Device Manager program is a utility that allows you to set up, configure and test your device, and later stores your settings on the system registry. These settings will be used when you call the APIs of Advantech Device Drivers. -
Page 23: Figure 2.4:The Device Setting Dialog Box
Configuring the Device Please click the Setup button to configure your device. On the Device Setting dialog box (Fig. 2-4), you can specify the D/A volt- age reference either as External or Internal and specify the voltage output range for the two D/A channels. Figure 2.4: The Device Setting Dialog Box After your card is properly installed and configured, you can click the Test…... - Page 24 PCI-1711U Series User Manual...
- Page 25 Signal Connections...
-
Page 26: Chapter 3 Signal Connections
Table 3.1. If there are multiple identical cards in the same chassis, the BoardID switch helps differentiate the boards by identifying each card’s device number with the switch setting. The BoardID switch’s unique identifier has been set to 0 at the factory. PCI-1711U Series User Manual... -
Page 27: Table 3.1:Board Id Setting (Sw1)
If you need to adjust it to other numbers, set SW1 by referring to DIP switch settings below. Table 3.1: Board ID Setting (SW1) Position 1 Position 2 Position 3 Position 4 BoardID Default Setting is 0 Chapter 3... -
Page 28: Signal Connections
Pin Assignment Figure 3-2 shows the pin assignments for the 68-pin I/O connector on the PCI-1711U/UL. Figure 3.2: I/O Connector Pin Assignments for the PCI-1711U Series *Note: Pins 23~25 and pins 57~59 are not defined for PCI-1711UL PCI-1711U Series User Manual... -
Page 29: I/O Connector Signal Description
3.3.1 I/O Connector Signal Description Table 3.2: I/O Connector Signal Descriptions Signal Name Reference Direction Description AI<0…15> AIGND Input Analog Input Channels 0 through 15. Each channel pair, AI<i, i+1> (i = 0, 2, 4...14), can be configured as either two single-ended inputs or one differential input. -
Page 30: Analog Input Connections
"floating" source. It is fairly sim- ple to connect a single ended channel to a floating signal source. A stan- dard wiring diagram looks like this: Signal Input To A/D A.GND A.GND A.GND PCI-1711U Series User Manual... -
Page 31: Figure 3.3:Analog Output Connections
Analog Output Connection The PCI-1711U/UL provides two D/A output channels. You can use the internal precision -5 V or -10 V reference to generate 0 to +5 V or 0 to +10 V D/A output. Use an external reference for other D/A output ranges. The maximum reference input voltage is ±10 V and maximum output scaling is ±10 V. -
Page 32: Digital Signal Connections
TTL Devices D.GND D.GND To receive an OPEN/SHORT signal from a switch or relay, add a pull-up resistor to ensure that the input is held at a high level when the contacts are open. 4.7K D.GND PCI-1711U Series User Manual... -
Page 33: Field Wiring Considerations
3.4 Field Wiring Considerations When you use PCI-1711U cards to acquire data from outside, noises in the environment might significantly affect the accuracy of your measure- ments if due cautions are not taken. The following measures will be help- ful to reduce possible interference running signal wires between signal sources and the PCI-1711U card. - Page 34 PCI-1711U Series User Manual...
- Page 35 Specifications...
-
Page 36: Appendix A Specifications
Input Protection 30 Vp-p Input 300 MΩ/5pF Impedance Trigger Mode Software, on-board programmable pacer or external Accuracy INLE: ±0.5 LSB Monotonicity: 12 bits Offset error: Adjustable to zero Gain error: 0.005% FSR (Gain=1) SNR: 68 dB ENOB: 11 bits PCI-1711U Series User Manual... -
Page 37: Analog Output
A.2 Analog Output 2 (PCI-1711U only) Channels 12-bit Resolution Using Internal Reference 0 ~ +5V, 0 ~ +10 V Output Range Using External Reference 0 ~ x V @ x V (-10 ≤ x ≤ Relative ±0.5 LSB Accuracy Differential Non-linearity ±0.5 LSB (monotonic) Adjustable to zero Gain Error... -
Page 38: Digital Output
(10 MHz max.) selected by software 10 MHz Max. Input Frequency 0.8 V max. Clock Input High 2.0 V min. 0.8 V max. Gate Input High 2.0 V min. 0.5 V max.@+24 mA Counter Output High 2.4 V min.@-15 mA PCI-1711U Series User Manual... -
Page 39: General
A.6 General 68-pin SCSI female I/O Connector Type 175 x 100 mm (6.9" x 3.9") Dimensions +5 V @ 850 mA Power Consumption Typical +5 V @ 1 A Max. 0~60° C (32~140° F) Temperature Operating (refer to IEC 68-2-1,2) -20~ 70°... - Page 40 PCI-1711U Series User Manual...
- Page 41 Block Diagrams...
-
Page 42: Appendix B Block Diagrams
Appendix B Block Diagrams PCI-1711U Series User Manual... - Page 43 Calibration...
-
Page 44: Appendix C Calibration
2. Everytime the analog output range is changed. We provide the Advantech Device Manager on the companion CD-ROM to assist you with D/A and A/D calibration. The Advantech Device Man- ager makes calibration easy. With a variety of prompts and graphic dis- plays, these programs will lead you through the calibration and setup procedures, showing you all the correct settings and adjustments. -
Page 45: C.1 Vr Assignment
C.1 VR Assignment The five variable resistors (VRs) on the PCI-1711U/UL board help you make accurate adjustment on all A/D and D/A channels. See the figure in Appendix C for help finding the VRs. The following list shows the func- tion of each VR: Function A/D bipolar offset... -
Page 46: C.2 A/D Calibration
Using a precision voltmeter to calibrate the A/D outputs is recommended. Regular and accurate calibration ensures maximum possible accuracy. The A/D calibration tool in the Advantech Device Manager leads you through the whole A/D offset and gain adjustment procedure. The basic steps are outlined below: Connect a DC voltage source of +9.995 V to AI0.
