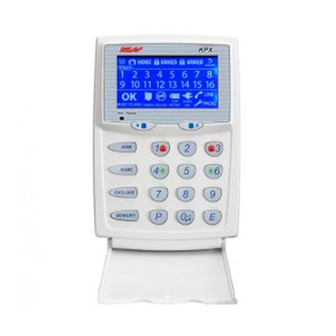

Ness D16 Owner's Manual
16 zone control panel and dialler
Hide thumbs
Also See for D16:
- Installation & programming manual (96 pages) ,
- User manual (36 pages) ,
- User manual (28 pages)
Related Manuals for Ness D16
Summary of Contents for Ness D16
- Page 1 NESS D16 16 Zone Control Panel and Dialler OWNER’S MANUAL REVISION 2, JULY 2001 Technical Manuals Online! - http://www.tech-man.com...
- Page 2 REVISION 2, JULY 2001 D16 USER MANUAL Document Part Number: 890-247 For product: 100-687 D16 Control Panel © 2001 Ness Security Products Pty Ltd ACN 069 984 372 D16installer4 pmo200701 Specifications may change without notice. Technical Manuals Online! - http://www.tech-man.com...
-
Page 3: Table Of Contents
CONTENTS Features ..............4 Introduction ..............5 Keypad ................ 6 Visual Indicators ............7 OPERATION ..............8 Arming ..............9 Disarming .............. 10 Resetting Alarms ........... 10 Monitor Mode ............11 Panic ..............12 Duress ..............12 Excluding Zones ........... 13 Alarm Memory ............ -
Page 4: Features
Simple to Program and Use. • Comes complete with an AC plug pack and supports a 12V 7Ah battery to maintain system security under all power supply conditions NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 5: Introduction
INTRODUCTION The Ness D16 micro computer based 16 zone Arming by remote control from outside the control panel is the heart of your security system premises. to which all your detection devices connect. When you enter the premises the panel will ignore... -
Page 6: Keypad
The “Not Ready” light is on when the panel is not ready to Arm. i.e, a zone is unsealed, there may still be movement in the premises or a door or window left open NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 7: Visual Indicators
Normal Radio Key or other radio device has a other radio device has a low low battery battery NOT READY Ready to Arm Not ready to Arm light NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 8: Operation
Areas will operate both Areas All control panel operations are controlled simultaneously. by the D16 keypad except if an optional key COMMON AREA ZONES switch or radio control equipment is installed. Zones assigned to both Areas are Armed only when Area1 and Area2 are both Armed. -
Page 9: Arming
Unsealed at the end of exit time. One long beep indicates an invalid entry or an alarm is outstanding and needs to be reset by entering your User Code first. NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 10: Disarming
Disarming the panel. by entering Memory Mode. If you arrive at your premises and find the strobe light flashing (if installed), reset the NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 11: Monitor Mode
4 seconds. (Your installer The panel must be fully Disarmed before must enable Radio Key Monitor Arming for Arming in Monitor Mode. this to work). NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 12: Panic
To Disarm and send a DURESS alarm, prefix ENABLE THE DURESS FUNCTION, CONSULT your User Code with one of the digits 5, 6, 8 YOUR INSTALLER or 9 when Disarming. NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 13: Excluding Zones
OFF the the panel is Disarmed and also when Armed. zone lights to be Included. Zones can only be Excluded when the panel is Disarmed. NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 14: Alarm Memory
Tamper alarm (Siren cover, panel etc) EXCLUDE Panic alarm BATTERY Low Battery MAINS Mains power failure RADIO, BATTERY, ZONE Radio Device battery low RADIO, BATTERY, ARM Radio Key battery low NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 15: Programming
Program Mode. of an alarm. User Codes may need to be re-programmed if a If your Ness D16 panel is monitored by a Central person has forgotten their code, to give a new user Station, the Follow Me number is ignored. -
Page 16: User Code Programming
Enter the new code Enter new the code again EXAMPLE 2: To program User Code 2 as an ARM ONLY code. Enter the new code Enter new the code again NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 17: Entry/Exit Timer Programming
EXAMPLE 5: To program the Follow Me Telephone Number Enter the new Telephone Number (Up to 15 digits long) EXAMPLE 6: To delete the Follow Me Telephone Number NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 18: Wireless Accessories
Ness Radio PIR (Passive Infrared) with the Ness D16, D24 panels. motion detector for wireless motion detection. The Ness radio Keypad is suitable for use as a portable keypad or for adding an extra keypad in Can be used in combination with Part No. -
Page 19: Monitoring, Described
AUDIBLE MONITORING SEQUENCE Central Station Monitoring is highly recommended and is the most effective method of monitoring When triggered by an alarm, the D16 will dial the your D16 alarm system. For further information programmed telephone number/s and output the... -
Page 20: Remote Operation By Telephone
REMOTE OPERATION recognises the code or 1 long beep to OPERATING THE D16 BY TELEPHONE The D16 will allow a user to call in to the signal the code was invalid and to try panel, using a standard DTMF telephone, again. - Page 21 1. Dial D16 telephone number. Listen for 1 double ring then hang up. 2. Wait 10 seconds, then dial the D16 telephone number again. 3. The D16 answers immediately and gives a 2 second beep followed by low tone. 4. PRESS...
-
Page 22: Troubleshooting
The cause of the alarm • A PANIC button has been triggered can be identified by entering the Alarm Memory Mode as described on page 14. NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 23: Installation Record
Zone 6 Zone 7 Zone 8 Zone 9 Zone 10 Zone 11 Zone 12 Zone 13 Zone 14 Zone 15 Zone 16 NOTES © 2001 Ness Security Products NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com... -
Page 24: Operation Summary
...or together To view MEMORY: [User Code] ...or (The next most recent event will be displayed) Press ..and so on (Up to 30 events) To exit MEMORY mode: NESS D16 CONTROL PANEL - USER MANUAL Technical Manuals Online! - http://www.tech-man.com...
