Summary of Contents for Ness D16
- Page 1 A L A R M C O N T R O L P A N E L A N D D I A L L E R U S E R ’ S M A N U A L A$15.00 Revision Ness D16 control panel – User’s manual INC GST...
- Page 2 NESS SECURITY PRODUCTS Australian Communications Authority TELECOMMUNICATIONS COMPLIANCE Document Part Number: 890-247 For product: 100-687 D16 Control Panel (V4.5) © 2002 Ness Security Products Pty Ltd ABN 28 069 984 372 D16 user rev4.5 pmo180602 Specifications may change without notice.
-
Page 3: Table Of Contents
Programming Options Table ........ 19 User Code programming ........20 Entry/Exit Timer programming ......21 Telephone Number programming ....... 21 Remote Operation by Telephone ...... 22-23 Ness Accessories ..........24-25 Troubleshooting ............26 Installation Record ............ 27 OPERATION SUMMARY .......... 28... -
Page 4: Features
• Comes complete with an AC plug pack and supports a 12V 7Ah battery to maintain system security under all power supply conditions NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 5: Introduction
INTRODUCTION The Ness D16 micro computer based 16 zone Arming the system may be done through the control panel is the heart of your security keypad or with the use of optional Radio Keys system to which all your detection devices for Arming by remote control from outside the connect. -

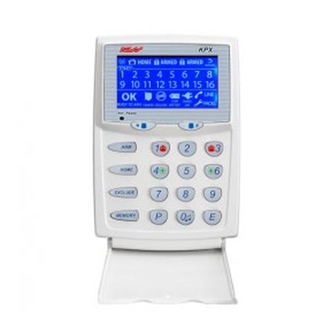

Page 6: Keypad
To display all the keypad icons press and hold status and is the main interface for controlling button for at least 2 seconds. All the the many powerful features of the D16 system. icons will be on whilst the button is held down. -
Page 7: Visual Indicators
RADIO, BATTERY, ARM ..Radio Key battery low, (Radio Key number is NOT indicated) RADIO, TAMPER, ZONE ..Radio Device tamper alarm (Device number is indicated by zone light/s) RADIO, MONITOR, ZONE ..Radio Supervision fail (Device number is indicated by zone light/s) NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 8: Keypad Operation
All control panel operations are controlled by by both offices is assigned to both areas the D16 keypad except if an optional key meaning it will automatically Arm when both switch or radio control equipment is installed. -
Page 9: Arming
Normal user codes can arm the panel only if it is fully disarmed first. User codes that are programmed to be Arm Only codes can arm the panel from Monitor mode or from the disarmed state. See page 20 for User Code Programming. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 10: Disarming
Alarm Memory Mode otherwise it will time out after 72 hours. as described on page 15. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 11: Monitor Mode
4 seconds or by pressing the ON button The panel must be fully Disarmed before twice within 5 seconds. (Your installer must Arming in Monitor Mode. enable Radio Key Monitor Arming for this to work). NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 12: Keypad Panic
* THE DURESS ALARM CAN BE PROGRAMMED TO your User Code with one of the digits 5, 6, 8 or SOUND THE INTERNAL SIREN (RESET OUTPUT). THIS 9 when Disarming. OPTION IS OFF BY DEFAULT. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 13: Keypad Fire Alarm
Sends a Medical Alarm report by dialler. • If your system is monitored by a central monitoring station • If Medical Alarm Report has been enabled by your installer Medical Alarm does not sound sirens. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 14: Excluding Zones
• EXCLUDE E works only when the panel is Disarmed. • EXCLUDE [User Code] E works in any state. • EXCLUDE [User Code] E can only exclude the zones in the Area assigned to that code. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 15: View Memory
RADIO, BATTERY, ARM ..Radio Key battery low, (Radio Key number is NOT indicated) RADIO, TAMPER, ZONE ..Radio Device tamper alarm (Device number is indicated by zone light/s) RADIO, MONITOR, ZONE ..Radio Supervision fail (Device number is indicated by zone light/s) NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 16: Radio Key Operation
Press the OFF button to reset a Panic alarm. * The Ness Radio Key is optional and is not supplied with any Ness control panels as standard. * Ness radio products require a Ness Radio Interface (100-200) to be fitted to the control panel. -
Page 17: Monitoring Operation
Me Telephone Number. AUDIBLE MONITORING SEQUENCE MONITORING MONITORED TELEPHONE LINE When triggered by an alarm, the D16 will dial the STATION PREMISES programmed telephone number/s and output the audible message for 45 seconds or until it is acknowledged. ACKNOWLEDGING THE ALARM... -
Page 18: Programming
‘Follow Me’ Telephone Number is the telephone number the dialler will call in the event of an alarm. If your Ness D16 panel is monitored by a Central Station, the Follow Me number is ignored. The factory default... -
Page 19: Programming Options Table
Follow Me Telephone No. P00E Up to 15 digits NOTE: The Entry Delay 2 timer programs in 10 second intervals. Example: if a value of 6 is programmed, the time is 60 seconds. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 20: User Code Programming
• The Master Code, (User Code 1), cannot be an ARM ONLY code. • The Master Code must always be programmed, all other codes are optional. * For a list of programming option numbers, see the Programming Options Table on page 19. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 21: Entry/Exit Timer Programming
The panel must be in program mode. (Program light ON). • To program the Follow Me Telephone Number to be 9123 1234: P00E 91231234 E • To delete the Follow Me Telephone Number: P00E MEMORY E NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 22: Remote Operation By Telephone
1. Dial the D16 telephone number. Listen for one double ring then hang up. 2. Wait 10 seconds, then dial the D16 telephone number again. The D16 will answer immediately and gives a 2 second beep followed by low tone. 3. PRESS... - Page 23 • If an alarm occurs which requires the D16 to dial out while attempting remote control, the D16 will treat the alarm as a priority, give a constant tone as a warning and then hang up.
-
Page 24: Ness Accessories
SIRENS MOTION DETECTORS The range of warning devices includes horn speakers, Ness manufactures a range of high quality and efficient polytough siren covers, internal ‘screamers’ and satellite motion detectors - including passive infra-red detectors, dual technology / microwave and infra-red devices as sirens with their own battery backup. -
Page 25: Wireless Products
ON, OFF and PANIC buttons in a slim, waterproof remote control. The Ness radio Keypad is suitable for use as a portable keypad or for adding an extra keypad in areas where it is * Ness radio products require a Ness Radio Interface (100- not possible to install wires. -
Page 26: Troubleshooting
Cannot enter Program Mode The panel is Armed. Disarm the panel before attempting to Only the Master Code can enter enter Program Mode. Program Mode. Try again using the Master Code. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 27: Installation Record
User Code 9 P19E User Code 10 P20E User Code 11 P21E User Code 12 P22E User Code 13 P23E User Code 14 P24E User Code 15 P25E © 2002 Ness Security Products NESS D16 (V4.5) CONTROL PANEL - USER MANUAL... -
Page 28: Operation Summary
* NOTE ON ARMING: Normal user codes can arm the panel only if it is fully disarmed first. User codes that are programmed to be Arm Only codes can arm the panel from Monitor mode or from the disarmed state. NESS D16 (V4.5) CONTROL PANEL - USER MANUAL...
