Ness D24 User Manual

Ness D24 User Manual

Alarm control panel and dialler

Advertisement

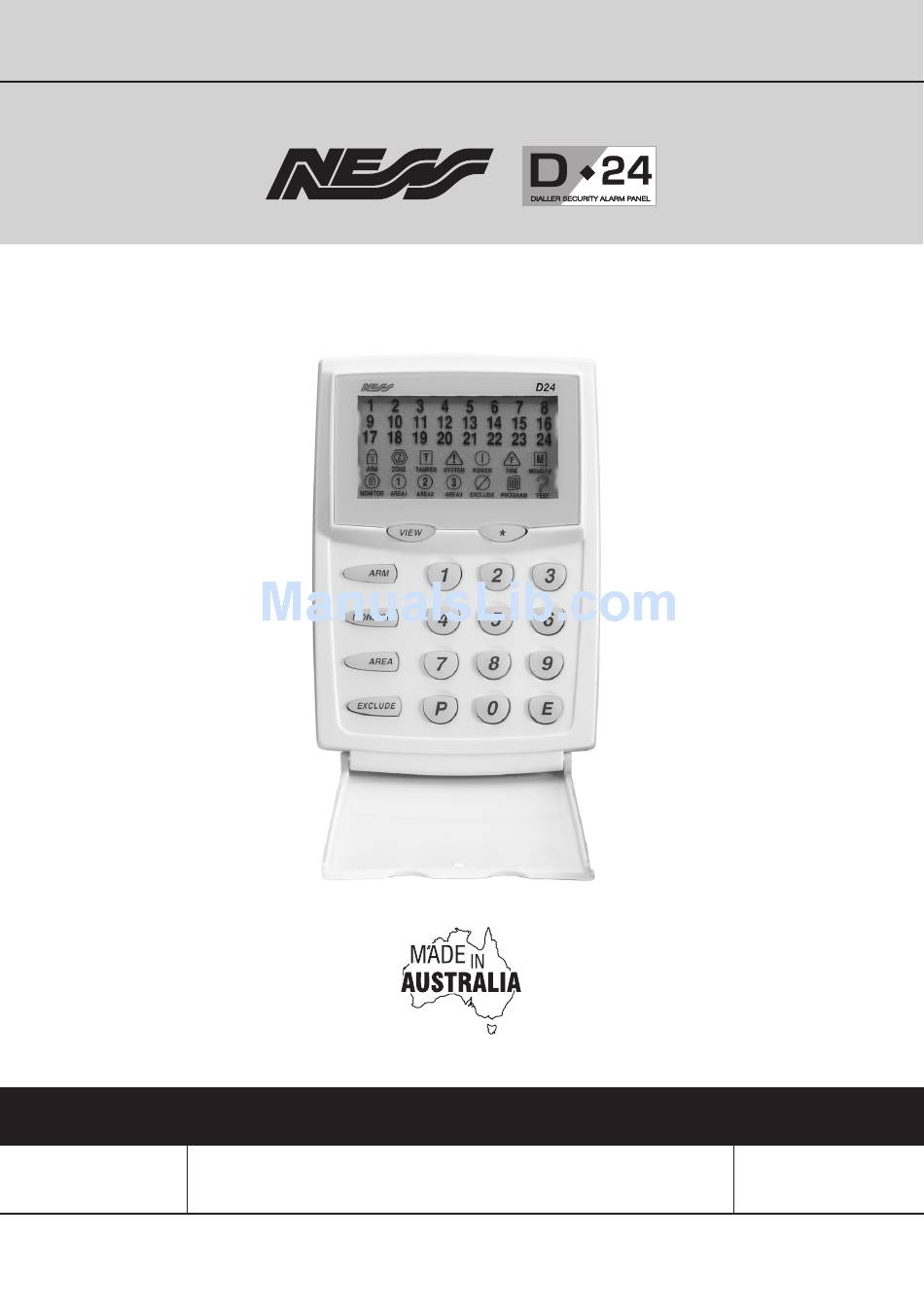

D24
A L A R M C O N T R O L P A N E L A N D D I A L L E R
U S E R ' S M A N U A L
A$15.00
Revision
Ness D24 control panel – User's manual
INC GST
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D24 and is the answer not in the manual?

Questions and answers

Simon Brott
April 27, 2025

Hi, I have a Ness D24 alarm system and have a faulty zone. I can temporarily exclude this zone but want to permanently remove this zone from this alarm. Do you know how I can do this? Thank you, Simon

1 comments:
Mr. Anderson
May 14, 2025

You cannot permanently remove a faulty zone using the user-level exclude function. Zone exclusion is temporary and resets when the panel is disarmed. To permanently remove a zone, programming changes must be made in the system's configuration, which typically requires installer access.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Ness D24

  • Page 1 A L A R M C O N T R O L P A N E L A N D D I A L L E R U S E R ’ S M A N U A L A$15.00 Revision Ness D24 control panel – User’s manual INC GST...
  • Page 2 REVISION 2 November 2002 NESS SECURITY PRODUCTS Australian Communications Authority Document Part Number: 890-252 TELECOMMUNICATIONS COMPLIANCE For product: 100-660 D24 Control Panel © 2002 Ness Security Products Pty Ltd ABN 28 069 984 372 D24user rev2 pmo131102 Specifications may change without notice.
  • Page 3: Table Of Contents

    CONTENTS Features ................. 4 Keypad ................. 5 Keypad Display Table ............6 View Menu Operation ............7 OPERATION ................. 8 Arming ................9 Disarming ................9 AREA Operation .............. 10 Arming & Disarming Areas ..........11 Administrator Code ............12 Monitor Mode ..............
  • Page 4: Features

    • Comes complete with an AC plug pack and supports a 12V 7Ah battery to maintain system security under all power supply conditions • Two separate Monitor Modes (Home Mode) NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 5: Keypad

    LCD ICON DISPLAY MONITOR AREA 1 AREA 2 AREA 3 EXCLUDE PROGRAM TEST VIEW PANIC BUTTON (Press & Hold) MONITOR AREA EXCLUDE PROGRAM BUTTON ENTER BUTTON KEYPAD DISPLAY TEST: Press and hold button. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 6: Keypad Display Table

    Area 1 Monitor AREA 1 Area 2 Armed Area 2 Monitor AREA 2 Area 3 Armed AREA 3 Exclude Mode Zone or other EXCLUDE alarm Excluded Normal User Program PROGRAM Mode Normal Siren Test TEST NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 7: View Menu Operation

    Step through the Memory display by pressing the button. At each step, VIEW the keypad icons display the history of Arming, Disarming and alarm events. Press to cancel the Memory display at any time NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 8: Operation

    OPERATION ARMING AND DISARMING OPERATING MODES The Ness D24 micro computer based 24 zone The Ness D24 will operate in one of the following control panel is the heart of your security modes: system to which all your detection devices ARMED: The system is “On”...
  • Page 9: Arming

    ARMING & DISARMING ARMING THE SYSTEM If the D24 has not been programmed for Area operation, this method will Arm the entire system. Press... (If Two Button Keypad Operation is disabled. This is the factory default.) ...or (If Two Button Keypad Operation is enabled.) ...or...
  • Page 10: Area Operation

    AREA 3 AREA 3 AREA 3 AREA 1 AREA 2 AREA 1 AREA 2 AREA 1 AREA 2 Common Area automatically The Common Area remains Disarms Disarmed until all Areas are again Armed. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 11: Arming & Disarming Areas

    TO DISARM YOUR AREA To Disarm the Area assigned to your code, simply enter your code followed by E. Press... [CODE] Three beeps will sound and the respective AREA icon will turn OFF NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 12: Administrator Code

    [CODE] Three beeps will sound and the selected AREA icon/s will turn OFF ...or a shortcut to Disarm all Areas Press... [CODE] Three beeps will sound and all AREA icons will turn OFF NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 13: Monitor Mode

    ALARM TYPES IN MONITOR MODE The Exit Delay time applies to Monitor mode. Monitor mode alarms can be programmed to ARMING SINGLE MONITOR MODE Press..or ...or [CODE] ARMING DUAL MONITOR MODE Press..or ...or ...or NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 14: Panic Alarm

    • IF DURESS ALARM IS USED, AVOID USER CODES THAT BEGIN WITH THE SAME NUMBER AS A DURESS DIGIT. • DURESS ALARM CAN ONLY USED IF YOUR SYSTEM IS MONITORED BY A CENTRAL STATION. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 15: Medical Alarm

    (if your system is monitored are enabled, the alarm indication is by the Fire by a Central Monitoring Station), or other actions icon on the keypad. as setup by your installer. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 16: View Menu

    1–8 will show which device) to indicate other alarms. POWER 0: Radio Key battery low. (Zone indicators 1– 8 will show which Radio Key) NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 17: View Memory

    Memory menu. Area 1 Arm Area 2 Arm Area 3 Arm Area 1 Monitor Mode [slow flash] Area 2 Monitor Mode [slow flash] Also see Keypad Display Table, page 6 NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 18 Next most recent event: - Panel was Armed. MEMORY VIEW Press... Next most recent event: - Mains power failure. POWER MEMORY VIEW Press..etc...Up to 50 events in memory. Press to exit Memory mode. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 19: Excluding Zones

    The selected System numbers will turn on. TO EXCLUDE POWER ALARMS Press... will be on) [POWER NUMBER] ...etc POWER EXCLUDE The selected Power numbers will turn on. TO EXIT EXCLUDE MODE Press... will flash while Disarmed and Armed) EXCLUDE NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 20: Test Mode

    Any which are still on STROBE and not flashing need to be checked by a service person. AUX 1 To exit View test: AUX 2 Press... KEYPAD BEEPS SIREN A, Tone 2 SIREN B, Tone 2 NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 21: Siren Test

    3 to 6 digits User Code 29 P029E 3 to 6 digits User Code 30 P030E 1 to 99 sec Entry Delay Time P17E 20 seconds Exit Delay Time P18E 60 seconds 1 to 99 sec NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 22: Programming

    DISABLED CODE Any Code except the Master Code can be taken out of service by programming its first digit to be zero. To Disable a Code: [NN] [CODE] [CODE] icons will be ON. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 23: Programming Codes

    To Program an Area Code assigned to AREA2 AREA2 AREA2 AREA2: AREA2 [NN] [CODE] [CODE] icon will be ON. AREA3 AREA3 To Program an Area Code assigned to AREA3 AREA3 AREA3: [NN] [CODE] [CODE] icon will be ON. NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 24: Entry/Exit Timer Programming

    1 to 99 seconds. To Program Exit Delay Time: [1~99] Example: Programming the Exit Delay Time to be 90 seconds. 1. Press... 2. The existing Exit Delay Time is displayed 3. Press... Enters the new time NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 25: Wireless Accessories

    SIRENS MOTION DETECTORS The range of warning devices includes horn speakers, Ness manufactures a range of high quality and efficient polytough siren covers, internal ‘screamers’ and satellite motion detectors - including passive infra-red detectors, sirens with their own battery backup.
  • Page 26 Ness D16, D24 panels. slim, waterproof remote control. The Ness radio Keypad is suitable for use as a portable * Ness radio products require a Ness Radio Interface (100- keypad or for adding an extra keypad in areas where it is 200) to be fitted to the control panel.
  • Page 27: Installation Record

    Zone 11 Zone 12 Zone 13 Zone 14 Zone 15 Zone 16 Zone 17 Zone 18 Zone 19 Zone 20 Zone 21 Zone 22 Zone 23 Zone 24 NOTES © 2001 Ness Security Products NESS D24 CONTROL PANEL - USER MANUAL...
  • Page 28: Operation Summary

    To exit EXCLUDE mode: PANIC alarm: Press and hold for 1 second ...or VIEW menu: [Repeat presses] Cycles viewing of menus ZONE TAMPER SYSTEM POWER MEMORY To exit VIEW mode: (Reverts to normal view) ZONE NESS D24 CONTROL PANEL - USER MANUAL...
