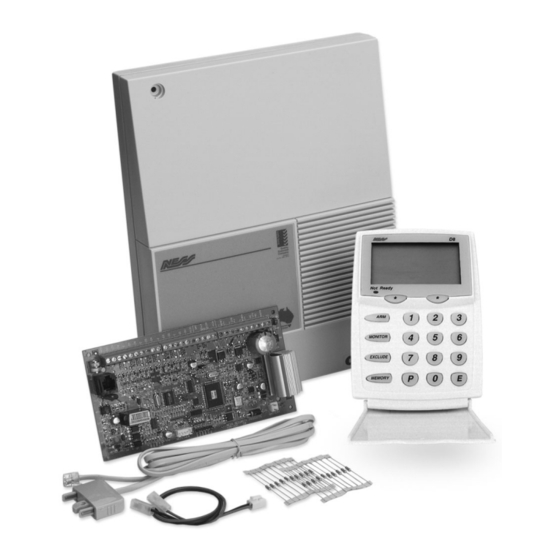

Ness D-16 Installation & Programming Manual

Control panel and dialler
Hide thumbs Also See for D-16:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, User Manual
C O N T R O L P A N E L A N D D I A L L E R
16
I N S T A L L AT I O N & P R O G R A M M I N G M A N U A L
A$15.00
Revision
Ness D16 control panel – Installation and programming manual
INC GST
4.6
Technical Manuals Online! - http://www.tech-man.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D-16 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ness D-16

Summary of Contents for Ness D-16

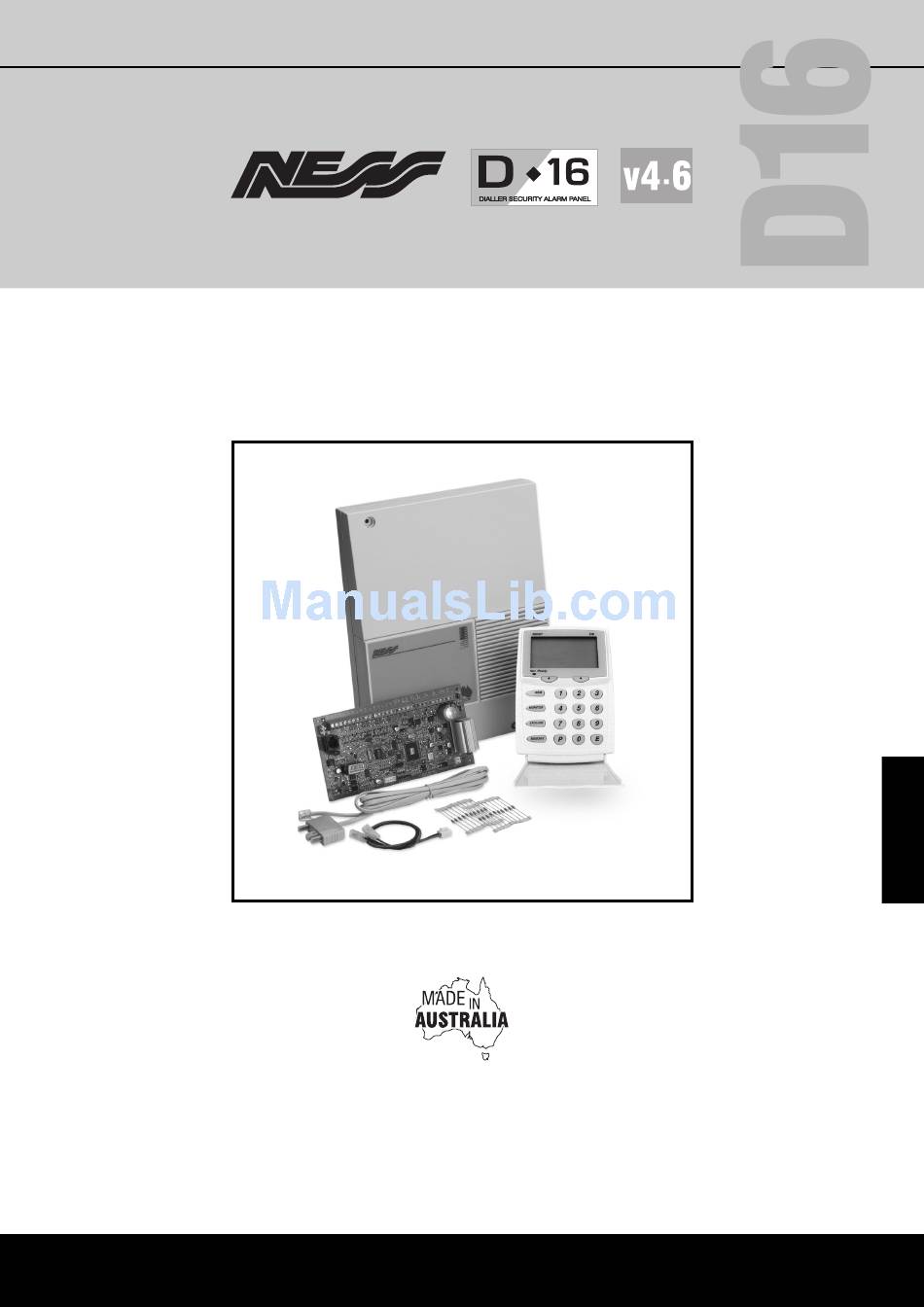

  • Page 1 I N S T A L L AT I O N & P R O G R A M M I N G M A N U A L A$15.00 Revision Ness D16 control panel – Installation and programming manual INC GST Technical Manuals Online! - http://www.tech-man.com...
  • Page 2 Australian Communications Authority TELECOMMUNICATIONS COMPLIANCE Document Part Number: 890-248 For product: 100-687 D16 Control Panel © 2003 Ness Security Products Pty Ltd ABN 28 069 984 372 D16installer rev4.6 pmo170303 Specifications may change without notice. 2 2 2 2 2 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL...

  • Page 3: Table Of Contents

    PROGRAMMING OPTIONS SUMMARY ....63 Dialling Method ............44 Disable Dialler ............45 INSTALLATION RECORD .......... 64 Contact ID format ........... 45 3 3 3 3 3 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 4: Introduction

    • Ultra-Modern and Impact resistant functional and attractive. The design and build of this product is based on the Ness Housing philosophy of excellence without compromise. •...

  • Page 5: Specifications

    End of line resistor ..2200 Ohm (or Zone Split 2200 Ohm & 4700 Ohm) Lead assembly for Internal Tamper Remote Keypad input ..Proprietary Tamper bracket Maximum Keypads ..3 J2 Header ...... Multi-pin connector for the Ness Radio Interface (100-200) Zone list label Housing cover screws OUTPUTS Circuit board standoff Siren .......

  • Page 6: D16 Connection Diagram

    Maximum BOX TAMPER SWITCH 3 keypads +12V +12V N.C. Contacts (WHITE) (supplied) Up to 2 x Ness 12V Siren (100-172) RESET OR 3 x Top Hat Screamer (100-238) “HEARTBEAT” LED J3 HEADER Constantly flashes Up to 2 x Strobe Light Provides Open Collector outputs as marked.

  • Page 7: Wiring Examples

    For N.C. Tamper Switches (SWI920) Colour: WHITE RED + BLACK - TAMP 100-172 Ness 12V Internal Siren. (RED & BLACK wires). Connects to RESET output. 7 7 7 7 7 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 8 24hr input. AC INPUT TERMINALS These terminals are for the connection of the Ness plug-pack. The Ness D-8 requires an AC transformer rating of 1.4 Amps @ 17 Vac minimum. (Ness Part No. POW215) BATTERY These terminals are for the connection of a sealed lead-acid rechargeable 12Volt battery.
  • Page 9 (P29E) or whenever the panel is reset, whichever comes first. • A Ness RK3 or RK4 Radio Key A maximum of 3 x 12V piezo Sirens (Ness Part No. NOI240, NOI 230, 100-238) or 2 X Ness PANIC button if options P68E 3E or Piezo (Part No 100-172) can be connected to this output.

  • Page 10: D16 Lcd Keypad

    RADIO, TAMPER, ZONE ..Radio Device tamper alarm (Device number is indicated by zone lights) RADIO, MONITOR, ZONE ..Radio Supervision fail (Device number is indicated by zone lights) NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 11: Operation Summary

    Saves changes and exits Temporary Day Zone selection mode. a Disarmed state first.* P64E 2E must be on for Enables/disables Temporary Day mode. enable the use of Temporary Day Zones. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 12: Quick Start Programming

    - supplied by the Central Station Account Number to identify the premises - supplied by the Central Station Factory default Master Code is: 123 Factory default Installer Code is: 000000 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 13: How To Enter Program Mode

    Selects a program The current value Enter new KEY SEQUENCE option (address) is displayed data IN PROGRAM MODE The keypad lights or icons will display the current value NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 14: User Codes

    Radio Key P10E programming, User Code 12 P22E User Code 13 P23E Page 56 User Code 14 P24E User Code 15 P25E Installer Code P99E Installer Code 000000 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 15: Timers

    EXAMPLE: To program Siren Time to be 4 minutes: • Siren times of longer than 5 minutes are P29E 4E contrary to noise pollution regulations in most areas. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 16: Vibration Sensitivity

    N/C Vibration BLUE contacts up for any required setting. N/C Tamper YELLOW 20mm GREEN loop 350mm cable 36mm 3mm holes at 27mm spacing NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 17: Zone Assignment

    Entry beeps can be disabled by program option P60E 1E. • When a zone is selected for this type, it is automatically deselected from any other zone type in the DELAY GROUP NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 18: Area Partitioning

    P51E [Zone No]E OFF: The zone is not a Monitor zone P64E 1E 2 second Monitor Mode alarm P51E [Zone No]E ON: The zone is a Monitor zone P64E 3E Monitor zones have Entry Delay2 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 19: Day Zones, Temporary Day Zones

    Temporary Day Zone selection mode. lost if the panel is powered down or reset, if Day Mode is enabled or disabled). but are not affected by arming/disarming or entering program mode. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 20 P46E Use the [Zone No] E sequence to turn ON zone 1 and zones 9-16. P45E P46E Area 1 zones Area 2 zones 15 16 Example: Zone 1 is assigned to both Areas, so it is a Common zone NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 21 9 10 11 12 13 14 15 selection ON and OFF. EXAMPLE: AREA 2 User codes 9-15 are assigned to AREA 2. P49E User Codes 1-8 P50E User Codes 9-15 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 22: Zone To Output Mapping

    P56E [Zone No]E OFF: The zone will not trigger the Keypad Sonalert NOTES: P56E [Zone No]E ON: The zone will trigger the Keypad Sonalert • 0E will turn all selections OFF MEMORY E will turn all selections ON NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 23 MEMORY E will turn all selections ON P59E [Zone No]E OFF: The zone will not trigger the AUX2 output P59E [Zone No]E ON: The zone will trigger the AUX2 output NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 24: Various Options

    P60E 3E ON: Keyswitch cycles between Arm and Disarm. available as RADIO ZONES however. P60E 2E & 3E ON: Keyswitch cycles between Arm, Monitor and Disarm. See: Zone Split, page 35 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 25 P60E 8E toggles the option ON and OFF P60E 8E OFF: ARM1 & ARM2 outputs turn on instantly P60E 8E ON: ARM1 & ARM2 outputs turn on at end of Exit Time NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 26: Tamper/Keypad Panic Output Mapping

    PANIC keys on the keypad (* E or ** P61E 7E: Keypad Panic Alarm to Keypad Sonalert output together, depending on Option P64E6E). P61E 8E: Keypad Panic Alarm to Siren output NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 27: System Operation Shortcuts

    • RELATED OPTIONS: P28E Exit Time EXAMPLE: If P28E = 22 seconds then if P62E 8E is ON, the exit time is 22 x 10 = 220 seconds. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 28: Monitor Mode Output Mapping

    Options P63E 1E-8E allow different outputs to be triggered when the panel is in MONITOR and DAY modes. For ZONE TO OUTPUT MAPPING (Armed & 24hr states) - see Options P54E - P59E, page 22 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 29: Miscellaneous Options

    P64E 4E toggles the option ON and OFF • RELATED OPTIONS: P68E 8E Quiet Chirps P64E 4E OFF: No Arm/Disarm chirps P64E 4E ON: Siren & Strobe outputs will chirp on arm/disarm NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 30 P64E 6E toggles the option ON and OFF P62E 4E Shortcut Keypad Panic P64E 6E OFF: No double key Keypad Panic • The Ness LCD keypad has two buttons P64E 6E ON: Double key Keypad Panic enabled labelled P64E 7E KEYPAD FIRE ALARM This option enables the Keypad Fire Alarm.

  • Page 31: Supervised Radio Zones

    The purpose of Radio Supervision is to verify the correct operation of • The Supervision signal from each Ness Radio PIRs. The Supervision signal from the Radio PIR tells the Supervised Radio PIR is individually panel that the device has not been removed from radio range and is timed.
  • Page 32 P66E 3E OFF: Supervision Keypad Sonalert disabled P65E Supervised Radio Zones AND all Supervision outputs trigger instantly P66E 3E ON: Supervision Keypad Sonalert enabled AND all Supervision outputs are delayed by 1 minute NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 33 60. For instance if P67E is set to 1 hour (60 minutes), then this option will reduce it to 1 minute. (i.e., 60 divided by 60). NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 34 P R O G R A M M I N G This page is intentionally blank NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 35: Zone Split

    2K2 resistor into 2x 1K1 resistors, joining them in series, and then placing the N.O. contact across one of the 1K1 resistors. (Make a 1K1 resistor by wiring 2x 2K2 resistors in parallel). NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 36: Misc. Radio Key Options

    4E has priority. P68E 4E OFF: Radio Key Panic triggers control panel Panic P68E 4E ON: Radio Key Panic pulses AUX1 See: TABLE, RADIO KEY TO AUX1 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 37 P68E 7E RK4 RADIO KEY AUX BUTTON TO AUX1 Ness RK4 radio key only. This option changes P68E 3E and 4E to work with the PROGRAM MODE LEVEL: AUX button button of an RK4 radio key instead of the PANIC button.
  • Page 38 P69E 4E OFF: Keypad gives 3 beeps on Arming • The keypad beeps on Arm/Disarm when P69E 4E ON: Keypad gives 6 beeps on Arming Arming/Disarming by keypad, keyswitch or by Radio Key NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 39 Table: RADIO KEY TO AUX2 P69E AUX2 disabled OFF OFF AUX toggles AUX2 AUX pulses AUX2 OFF ON Note: If both 7E & 8E are on, then the output is disabled. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 40: Telephone Numbers 1 & 2

    P72E (or P73E) existing account number is displayed Also see page 41, Hex Client Codes [ENTER NEW ACCOUNT No] E new account number is displayed EXAMPLE: To program Account No.1 to be 1239: P72E1239E NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 41: Telephone Number 3 - Test Calls

    HEX CLIENT CODE NOTES: Dialler client codes can now be entered in Hexadecimal. Use the following Note 1: If using the Ness LED keypad keys to enter the hex digits B, C, D, E or F. for programming, the Hex digits will not be displayed but are still programmed.

  • Page 42: Report Zone Alarms

    P79E 1E-16E toggles the option ON and OFF NOTES: P79E 1E-16E OFF: Multiple Zone Alarms disabled for that zone P79E 1E-16E ON: Multiple Zone Alarms enabled for that zone NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 43: Report Miscellaneous Alarms

    P82E 1E: Send Restoral immediately P82E 2E: Send Restoral after siren time P82E 3E: Send Restoral on Disarm & seal P82E 4E: Send Restoral on Disarm always NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 44: Test Call Interval

    P85E 1E-3E turns the option ON • Only one option is allowed to be ON P85E 1E: Auto Dialling (PULSE or DTMF) P85E 2E: Pulse Dialling always P85E 3E: DTMF Dialling always NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 45: Disable Dialler

    P86E 4E turns the option ON P86E 1E—6E is allowed to be ON • This is the best option to select for P86E 4E ON: Audible PULSE format enabled Audible Monitoring. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 46: Contact Id + Audible Dtmf Format

    18 Force Open (Cancel) ssss 18 Close ssss 18 Test Report ssss 18 Zone 1-16 Manual Exclude ssss 18 001-008 Zone 1-16 Auto Exclude ssss 18 001-008 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 47: Alternate Dialling

    (up to the maximum number of calls). PROGRAMMING SEQUENCE: P87E 4E toggles the option ON and OFF P87E 4E OFF: Maximum 10 dialling attempts P87E 4E ON: Maximum 4 dialling attempts NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 48: Area1 Open/Close Reports

    P88E 4E toggles the option ON and OFF NOTES: P88E 4E OFF: No Strobe Flash on kiss-off • RELATED OPTIONS: P88E 4E ON: Strobe Flash on kiss-off enabled P88E 3E Siren Chirp on kiss-off NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 49: Forced Opening Report

    P88E 8E toggles the option ON and OFF NOTES: P88E 8E OFF: No Auto Exclude Reports • P88E 8E ON: Auto Exclude Reports enabled P88E 7E Manual Exclude Reports NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 50: Enable Test Calls

    OFF. speaker to the Siren output. PROGRAMMING SEQUENCE: P89E 3E toggles the option ON and OFF P89E 3E OFF: No Listen-In P89E 3E ON: Listen-In enabled NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 51: Swinger Shutdown

    Australia and New Zealand). NOTES: PROGRAMMING SEQUENCE: P89E 7E toggles the option ON and OFF P89E 7E OFF: Clock uses mains frequency timing P89E 7E ON: Clock uses internal timing NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 52: Remote Access

    • Remote Access must also be enabled P90E 3E ON: Remote Arming enabled • RELATED OPTIONS: P90E 1E Enable Upload/Download • See page 62 for details on Remote Operation by telephone NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 53: Remote Disarming

    P90E 1E Enable Upload/Download P81E Telephone Number 4, Callback PROGRAMMING SEQUENCE: P90E 8E toggles the option ON and OFF P90E 8E OFF: No Callback P90E 8E ON: Callback Mode enabled NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 54: Required Rings

    LEDs. Example, version 4.5 is displayed by flashing 4 followed by 5. This test operates in User and Installer program mode. P999999999E (eight 9’s) Displays software version NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 55: Clear Radio Devices

    (Unlike User Codes, the installer code is not displayed when programming) For a complete list of factory default values, see the Programming Options Summary on page 63. NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 56 Each of the 15 User Codes, except for the Master Code, can be programmed to PROGRAM MODE LEVEL: be Radio Codes. This allows up to 14 Ness Radio Keys to be used for Arming Installer, Remote by PC and Disarming of the panel. The Ness RKP Radio Keypad can also be used with FACTORY DEFAULT: the D16, (see the RKP installer manual).

  • Page 57: Radio Device Programming

    PROGRAM MODE LEVEL: can accept both Radio Devices and normal zone inputs simultaneously. Installer, Remote by PC The optional 100-200 Ness Radio Interface is required for Radio Devices to FACTORY DEFAULT: No Radio Devices operate. A Radio Device is any type of Ness transmitter.

  • Page 58: Radio Quick Start

    • In cases where radio reception needs to be improved, the Radio Interface can be If the Ness Radio Interface is correctly installed, the D16 keypad will flash the RADIO light installed up to 50 metres away from the ON when any radio signal is detected (from both programmed and non-programmed radio control panel.

  • Page 59: Radio Devices - Operation

    SUPERVISION RADIO DEVICES - OPERATION ALARM: Any Ness Radio Device can operates on any zone 1-16 as programmed by P101E~P116E. The hardwired zones 1-16 continue to operate in parallel. (Radio Keys can operate on radio zones 1~16 for special purposes, but are normally programmed to operate as Radio Codes.

  • Page 60: Output Expander

    Zone 14 NESS SECURITY PRODUCTS Zone 15 Battery Fail Battery Fail Zone 15 D16 OUTPUT EXPANDER Zone 16 Ext. Tamper Ext. Tamper Zone 16 Connecting Two Output Expanders NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...
  • Page 61 P119E 1E-16E toggles the option ON and OFF P119E 1E-16E OFF: Output Expander zone alarm disabled for that zone P119E 1E-16E ON: Output Expander zone alarm enabled for that zone NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 62: Remote Operation By Telephone

    Finished - hang up finished press to force the D16 to tells the D16 that telephone commands will hang up. follow. The D16 will respond with either 3 NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 63: Programming Options Summary

    8E Exit Time x 10 2E Restoral after Siren Time ALL options are available in P82E INSTALLER PROGRAM MODE. 3E Restoral on Disarm & seal 4E Restore on Disarm always NESS D16 (V4.6) CONTROL PANEL - INSTALLER MANUAL Technical Manuals Online! - http://www.tech-man.com...

  • Page 64: Installation Record

    Date purchased: Date installed: Installation Company: Telephone: NESS D16 ALARM CONTROL PANEL Monitoring Company: INSTALLATION RECORD Telephone: ZONE ASSIGNMENT P26E ENTRY DELAY TIME 1 Seconds P27E ENTRY DELAY TIME 2 Seconds P28E EXIT DELAY TIME Seconds P29E SIREN RESET TIME...
