I Microphone - Icom iM304 Instruction Manual

y SCAN KEY [SCAN•TAG] (p. 11)
➥ Push to start or stop the Normal or Priority scan.
➥ Push and hold for 1 sec. to set or clear the displayed
channel as a TAG (scanned) channel.
• The favorite channels are set by the TAG channel setting.
➥ While pushing and holding [HI/LO] on the microphone,
push for 3 sec. to clear all TAG channels in the selected
channel group.
• Repeat above procedure to set all TAG channels.
u DISTRESS KEY [DISTRESS] (p. 16)
Push and hold for 5 sec. to transmit a Distress call.
i DSC/POSITION KEY [DSC•POS]
➥ Push to enter DSC menu. (p. 13)
➥ Push and hold for 1 sec. to show the current position
from a GPS receiver. (p. 15)

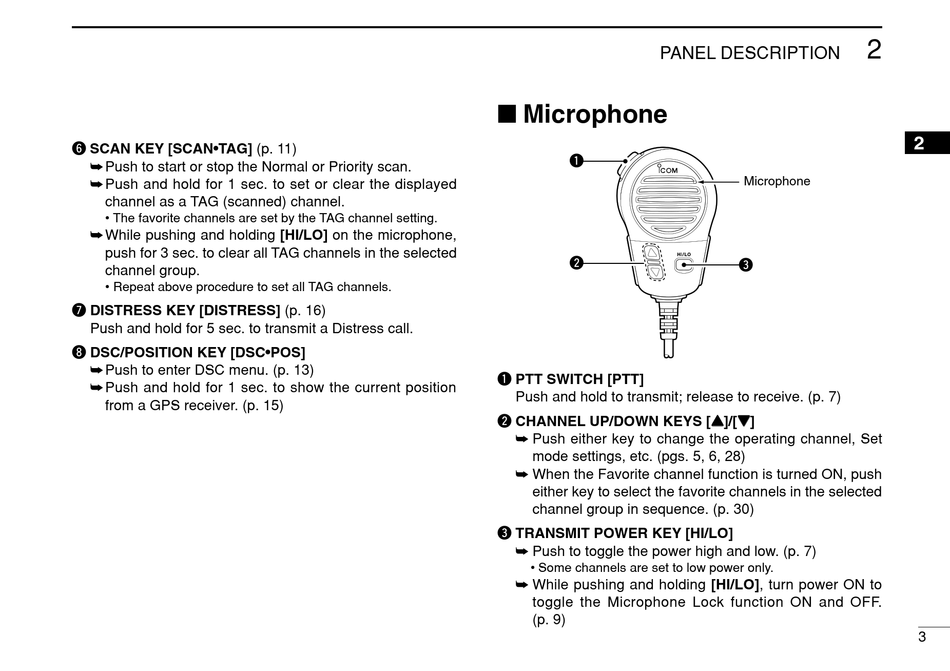

PANEL DESCRIPTION

I Microphone

q
w
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 7)
w CHANNEL UP/DOWN KEYS [Y Y ]/[Z Z ]
➥ Push either key to change the operating channel, Set
mode settings, etc. (pgs. 5, 6, 28)
➥ When the Favorite channel function is turned ON, push
either key to select the favorite channels in the selected
channel group in sequence. (p. 30)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the power high and low. (p. 7)
• Some channels are set to low power only.
➥ While pushing and holding [HI/LO], turn power ON to
toggle the Microphone Lock function ON and OFF.
(p. 9)
2
2
Microphone
e
3
