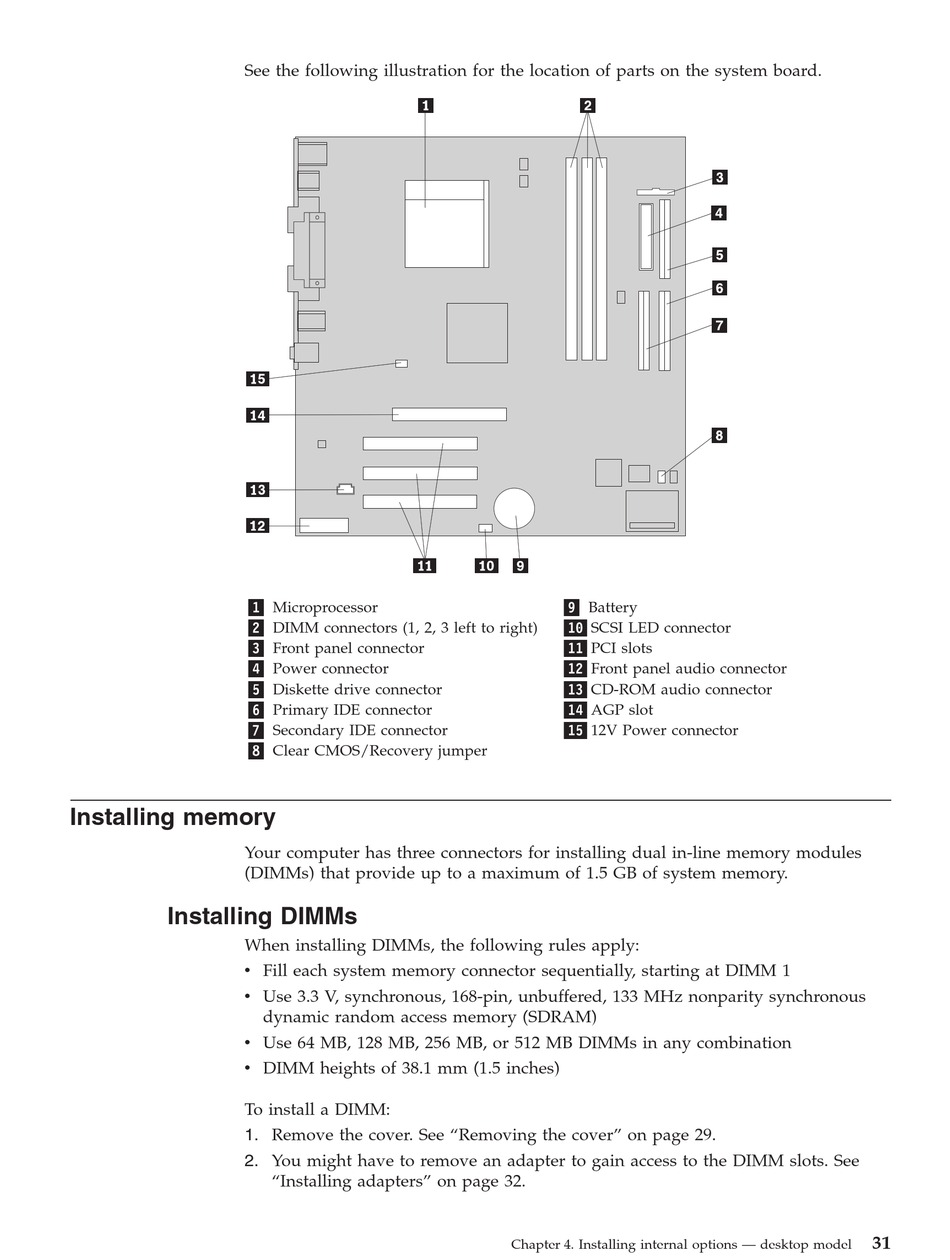

See the following illustration for the location of parts on the system board.

Installing memory

Your computer has three connectors for installing dual in-line memory modules
(DIMMs) that provide up to a maximum of 1.5 GB of system memory.

Installing DIMMs

When installing DIMMs, the following rules apply:
v Fill each system memory connector sequentially, starting at DIMM 1
v Use 3.3 V, synchronous, 168-pin, unbuffered, 133 MHz nonparity synchronous
v Use 64 MB, 128 MB, 256 MB, or 512 MB DIMMs in any combination
v DIMM heights of 38.1 mm (1.5 inches)
To install a DIMM:
1. Remove the cover. See "Removing the cover" on page 29.
2. You might have to remove an adapter to gain access to the DIMM slots. See
1 Microprocessor
2 DIMM connectors (1, 2, 3 left to right)
3 Front panel connector
4 Power connector
5 Diskette drive connector
6 Primary IDE connector
7 Secondary IDE connector
8 Clear CMOS/Recovery jumper
dynamic random access memory (SDRAM)
"Installing adapters" on page 32.
9 Battery
10 SCSI LED connector
11 PCI slots
12 Front panel audio connector
13 CD-ROM audio connector
14 AGP slot
15 12V Power connector
Chapter 4. Installing internal options — desktop model
31
