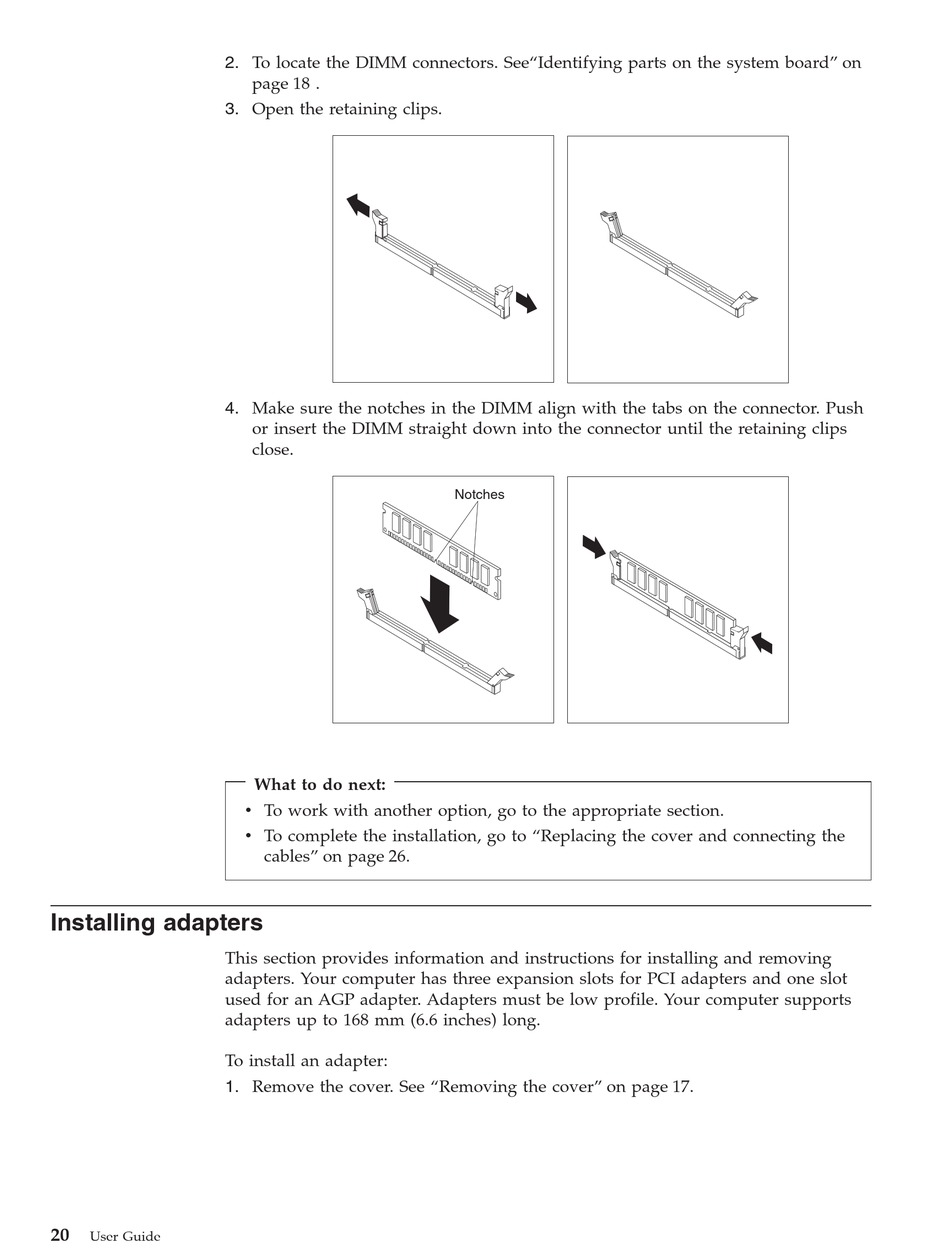

2. To locate the DIMM connectors. See"Identifying parts on the system board" on
3. Open the retaining clips.
4. Make sure the notches in the DIMM align with the tabs on the connector. Push

Installing adapters

This section provides information and instructions for installing and removing
adapters. Your computer has three expansion slots for PCI adapters and one slot
used for an AGP adapter. Adapters must be low profile. Your computer supports
adapters up to 168 mm (6.6 inches) long.
To install an adapter:
1. Remove the cover. See "Removing the cover" on page 17.
20
User Guide
page 18 .
or insert the DIMM straight down into the connector until the retaining clips
close.
What to do next:
v To work with another option, go to the appropriate section.
v To complete the installation, go to "Replacing the cover and connecting the
cables" on page 26.
Notches
