8 CAT5e/6/7 OUT 1~8: Connect from these CAT outputs to the CAT
input port of the receiver units with a single CAT5e/6/7 cable for HDMI
Audio/Video and IR/RS-232 control signal transmission.
9
HDMI IN 1~8: Connect to the HDMI input source devices such as a
DVD player or a Set-top Box with HDMI cable or DVI to HDMI cable.
10
DC 24V MAIN POWER: Plug the 24 V DC power supply into the unit
and connect the adaptor to an AC outlet.
11
PoE 24V: Plug the 24 V PoE power supply into the unit and connect
the adaptor to an AC outlet. This unit will power PoE (Power over
Ethernet) capable receiver units.
Warning: Please do not connect the CAT5e/6/7 cable into the
receiver's LAN port.

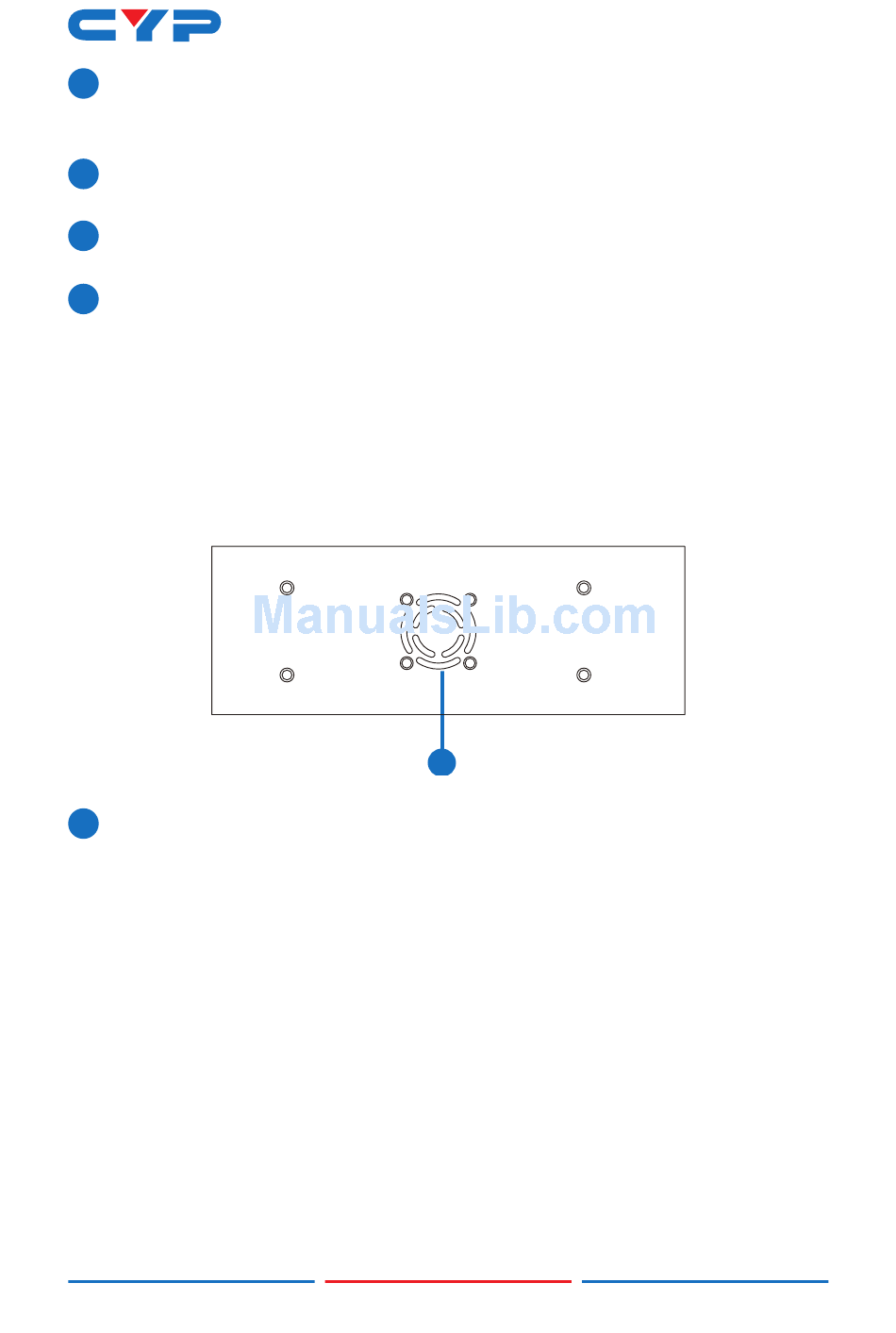

6.3 Side Panel

1
Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.
5
1
