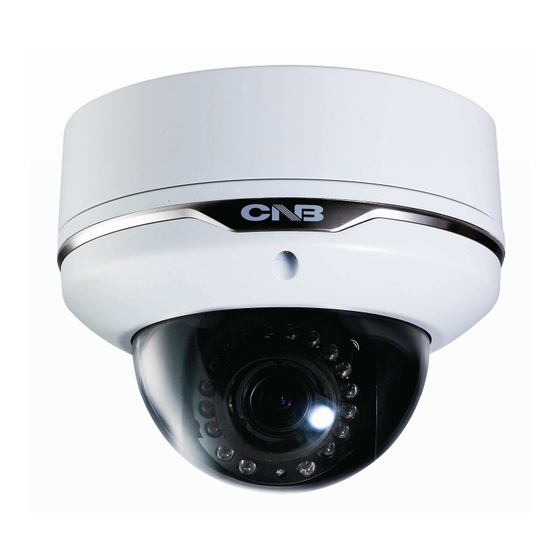

  • Page 1 Ver. 1.0 XNET (IVC5055VR) User Manual...

  • Page 2: About This Manual

    Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by misuse and by use of parts not recommended will not be applicable for support.
  • Page 3 XNET User Manual Appendix [Warning] This symbol provides a caution for handling XNET network cameras. [Note] This symbol provides a useful tip for handling XNET network cameras. 3 / 45...

  • Page 4: Table Of Contents

    XNET User Manual Index 1. System Administration ....................5 1.1. Logging On ..........................5 1.1.1. Using Internet Explorer ....................... 5 1.1.2. ID and Password ......................... 5 1.2. Configuring Camera ....................... 7 1.3. Web Viewer (Index.html) ......................9 1.4. Status Window ........................11 1.5.

  • Page 5: System Administration

    XNET User Manual 1. System Administration You can log on as an administrator using either Internet browser or ‘CMS’ software. (This manual will describe about using Internet browser only.) Type the IP Address of the XNET product in the address bar and press enter. e.g.) : http://192.168.123.100 If the HTTP port has been changed from the default value, enter the new port as shown below:...
  • Page 6 XNET User Manual Figure 1-1 Log-in window The default user name and password is “root” and “admin” respectively. For security purpose, it is recommended to change the administrator’s id and password from their default values. Please be careful not to forget them or expose them to others.

  • Page 7: Configuring Camera

    XNET User Manual When you log in as an administrator, XNET’s Basic Setup page will appear as shown in Figure 1-2. Setup pages for different features can be accessed from this page. Access to each feature is controlled by different user groups (Administrator, Operator, and Viewer.) Main Menu Sub Menu...
  • Page 8 XNET User Manual ● Accessible ▬ Not Accessible Access Function Administrator Operator Viewer Index Page ● ● ● Users ● ▬ ▬ Setup Page Date&Time ● ● ▬ Setup Page Maintain Server ● ▬ ▬ Setup Page System / Log ●...

  • Page 9: Web Viewer (Index.html)

    XNET User Manual When you access an XNET product, Web Viewer page will appear automatically. Viewer area displays the video output from the camera, and menu bar contains taps that lead to each feature setting page. Figure 1-73 Web Viewer Page 9 / 45...
  • Page 10 XNET User Manual ITEM DESCRIPTION Captures the still image and displays on a pop-up window. Capture [Save to] c:₩xNetCapture Opens up Basic Setup Page. Setup page for each XNET feature can be opened from this Menu Setting screen. (Please refer to 1.4 for detail) Open up Motion Index View page.

  • Page 11: Status Window

    XNET User Manual Status page displays XNET System’s Version and its Ethernet address. Click [ ▷ Status] button to open the page shown in Figure 1-4. Figure 1-4 Status Page (Internet Explorer 6.0) 11 / 45...

  • Page 12: Configuring Users

    XNET User Manual This can give or limit authority to users for controlling Video and other features of XNET system. Click [ ▷ Users] button to open the page shown in Figure 1-5. Figure 1-5 Users Configuration Page 12 / 45...
  • Page 13 XNET User Manual ITEM DESCRIPTION Displays list of registered users. User List "root" is the system’s administrator. "root" cannot be added or deleted. Only the password for “root” can be changed. This adds a new user. Select “[Add_User]” tap in User List Box. To add a new user, enter User name, Password, and User group then click Add button.

  • Page 14: Setting Date &Time

    XNET User Manual & & This page will change Date and Time of XNET system. Click [ ▷ Date & Time] to open the page shown in Figure 1-6. Figure 1-6 Date and Time Page 14 / 45...
  • Page 15 XNET User Manual ITEM DESCRIPTION Current Server Time Displays time of XNET system. Time Zone Selects Time Zone. <Default : GMT+09> Automatically Adjust for Daylight Saving Enables/ Disables Daylight Saving time. Time Changes Sets Date and Time of the Server. 『Synchronize with computer time』...

  • Page 16: Maintaining Server Configurations

    XNET User Manual This page configures system parameters such as system restart, factory default settings, system upgrade, saving configurations, saving images, and other additional features. Click [ ▷ Maintain Server] to open the page shown in Figure 1-7. Figure 1-7 Server Maintenance Page 16 / 45...
  • Page 17 XNET User Manual ITEM DESCRIPTION Restart Restarts the system. It takes about 45 seconds. Maintain Resets all parameters except for TCP/IP settings. Light Default Server This restore will be followed by a 45 seconds system reset. Resets all parameters to Factory Default setting. Factory Default This will be followed by a 45 seconds system restart.

  • Page 18: System / Log

    XNET User Manual System / Log page provides network camera’s configuration, language, and error information to users. Click [ ▷ System / Log] button to open the page shown in Figure 1-8. Figure 1-8 System / Log Page 18 / 45...

  • Page 19: Settings Overview

    XNET User Manual ITEM DESCRIPTION System System Displays current configurations for XNet option pages. Settings Overview System LED Enable / Disable System LED. System LED Control Event LED Enable / Disable Event LED. Language File Upload language files. Upload Language File can be downloaded from http://www.cnbtec.com List Display the list of saved language files.

  • Page 20: Configuring Audio

    XNET User Manual Xnet’s Audio features can be configured in this page. Click [ ▷ Audio] button to open the page shown in Figure 1-9. Figure 1-9 Audio Configuration Page ITEM DESCRIPTION Audio Enables or Disables Audio feature Enable audio Enable <Default : Disable>...

  • Page 21: Configuring Video

    XNET User Manual XNET’s Video features can be configured in this page. Click [ ▷ Video] button to open the page shown in Figure 1-10. Figure 1-10 Video Configuration Page 21 / 45...
  • Page 22 XNET User Manual ITEM DESCRIPTION Select a resolution of the video image. Resolution Selectable resolutions differ by models like the following: CIF | VGA | D1 | 720p | SXGA | 1080p Turns Sub Stream feature on or off. <Default : Disable> Sub Stream output is in H.264 &...

  • Page 23: Configuring Rtp

    XNET User Manual RTP / RTSP protocol ports can be configured in this page. Click [ ▷ RTP] to open the page shown in Figure 1-11. Figure 1-11 RTP page 23 / 45...
  • Page 24 XNET User Manual ITEM DESCRIPTION RTSP Enter RTSP Port of the Main Stream between 1 and 65535. RTSP Port Configuration The default is 554. Enter RTP Start Port between 1024 and 65534. The default is 2000. RTP Start Port The minimum difference between RTP Start and End Port should be 100.

  • Page 25: Camera Conditions

    XNET User Manual This is related to camera features of the XNET products. Click [ ▷ Camera Conditions ] button to open the page shown in Figure 1-12 Figure 1-12 Camera Conditions Page 25 / 45...
  • Page 26 XNET User Manual ITEM DESCRIPTION Configures Video’s White Balance. White Balance means balancing color temperature by adjusting Red and White Balance Blue level. Auto mode will adjust White Balance automatically, while manual mode will adjust white balance level according to manually White configured Red and Blue level.

  • Page 27: Configuring Tcp/Ip Parameters

    XNET User Manual This configures XNET’s network related parameters. Click [ ▷ TCP/IP] button to open the page shown in Figure 1-13. Figure 1-13 Network Setup Page 27 / 45...
  • Page 28 XNET User Manual ITEM DESCRIPTION Turns DHCP on or off. Check DHCP checkbox to get an IP address automatically from the network using DHCP protocol. Obtained IP address can be viewed by IP Installer. Obtain an IP Address If the network does not use DHCP server, the automatically product will wait for server’s response for two minutes and (DHCP)

  • Page 29: Configuring Ip Filtering

    XNET User Manual This configures IP Filters for XNET product. Click [ ▷ IP Filtering] button to open the page shown in Figure 1-14. Figure 1-14 IP Filtering Page 29 / 45...
  • Page 30 XNET User Manual ITEM DESCRIPTION IP Filter Displays list of currently established IP Filters. Address List Adds an IP address to filter out. Enter the IP Address to block and click add button to add it to IP Filtering listbox. The updated list can be viewed in IP Address Listbox.

  • Page 31: Configuring Http

    XNET User Manual This configures HTTP port to access XNET’s webpage. Click [ ▷ HTTP] button to open the page shown in Figure 1-15. Figure 1-15 HTTP Page 31 / 45...
  • Page 32 XNET User Manual ITEM DESCRIPTION Enter HTTP Port to access the webpage. Default port is 80, and any other port number has to be entered at the end HTTP HTTP port of the IP address when accessing. (e.g. When using HTTP Port 8080, enter http://192.168.123.100:8080) Save Applies and saves changes.

  • Page 33: Configuring Upnp/Dyndns/Bonjour

    XNET User Manual UPnP is a protocol for IP installer software. You can enable or disable this UPnP, and you can also use a Friendly Name. DynDNS configures XNET’s DDNS server information. Click [ ▷ UPnP/DynDNS] to open the page shown in Figure 1-16. Figure 1-16 UPnP / DynDNS / Bonjour Page 33 / 45...
  • Page 34 XNET User Manual ITEM DESCRIPTION Enables or disables UPnP. Enable UPnP UPnP When enabled, you can use IP Installer’s XNET Auto Search feature. Settings Friendly Name Enter UPnP’s Friendly Name. Enables or disables DynDNS. Enable DynDNS When enabled, you can automatically obtain a domain from DDNS server by simply registering the XNET product.

  • Page 35: Configuring Cms

    XNET User Manual This configures XNET’s CMS Server information. Click [ ▷ CMS] to open the page shown in Figure 1-17. Figure 1-17 CMS Page ITEM DESCRIPTION Enter CMS port number for communication with CMS between 1 and CMS Port 65535.

  • Page 36: Configuring Event Type

    XNET User Manual This is related to XNET’s DDNS Server information. Click [ ▷ Event Types] to view page shown in Figure 1-18. Figure 1-18 Event Types Page 36 / 45...
  • Page 37 XNET User Manual ITEM DESCRIPTION Event Enable Enable Event Enables or disables event processing. Sensor Enables or disables the Alarm sensor. Event Mode Motion Enables or disables Motion Detection. Detection This displays the capture format of images or video for an event recording.

  • Page 38: Configuring Motion Detection Area

    XNET User Manual This defines areas that detect motion, and up to three different areas can be defined in each channel. Click Motion button in Operator mode to open the page shown in Figure 1-19. Figure 1-19 Motion Detection Page 38 / 45...
  • Page 39 XNET User Manual ITEM DESCRIPTION Displays currently defined Motion Detection area. When an area is selected from the list, its defined area gets displayed AREA and highlighted in viewer window. Up to 3 motion detection area can be defined. When this is checked, only the selected area gets displayed in viewer Show Selected Area window.

  • Page 40: Configuring Sensor/Alarm

    XNET User Manual This is related to XNET’s DDNS server information. Click [ ▷ Sensor / Alarm] to open the page shown in Figure 1-20. Figure 1-20 Sensor / Alarm Page 40 / 45...
  • Page 41 XNET User Manual ITEM DESCRIPTION Sensor Selects the signal type for Alarm Input Port between Normally Close Signal Type Setting and Normally Open. Alarm Configures interval between repeating Alarm Out signals between Out Interval Setting 1 and 120 seconds. Select the Alarm Control type either Auto or Manual. Auto : Rings the alarm automatically during the out interval depending Force Alarm Control...

  • Page 42: Smtp Setup

    XNET User Manual This configures mailing out method of Alarm Images once ‘event’ occurred in the XNET system. Click [ ▷ SMTP] button to open the page shown in Figure 1-21. Figure 1-21 SMTP Page 42 / 45...
  • Page 43 XNET User Manual ITEM DESCRIPTION Turns Internal SMTP Server on or off. When this box is checked, Alarm Image gets mailed out through an Enable internal mail server. Mail Authentication cannot be used in this mode. Internal SMTP When this box is unchecked, Alarm Image gets mailed out through an Server external mail server.

  • Page 44: Configuring Ftp

    XNET User Manual This configures how the Alarm Images get sent out using FTP once ‘event’ occurred in the XNET system. Click [ ▷ FTP] button to open the page shown in Figure 1-22. Figure 1-22 FTP Page 44 / 45...
  • Page 45 XNET User Manual ITEM DESCRIPTION Enter the address of the FTP server to send Alarm Images to in the event processing. FTP Name The client PC at that IP address has to run the FTP server in order to receive the Alarm Images. Server Enter the port number for the FTP server to send Alarm Images to in FTP Port...
