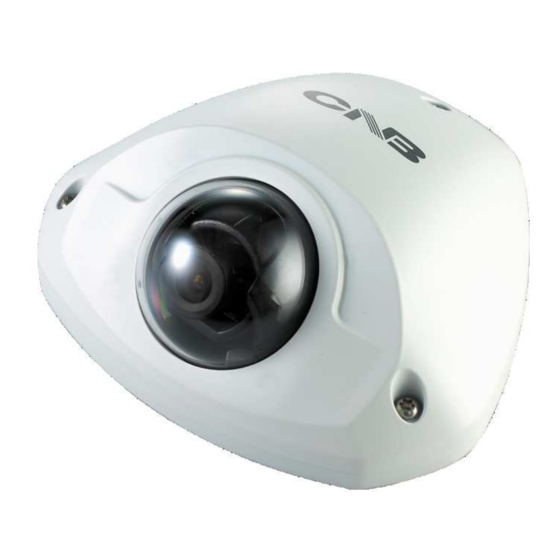

  • Page 1 Ver. 1.0 XNET Network Vandal Dome Camera (ITE1030) User Manual...
  • Page 2 Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by misuse and by use of parts not recommended will not be applicable for support.

  • Page 3: Appendix

    XNET User Manual Appendix [Warning] This symbol provides a caution for handling XNET network cameras. [Note] This symbol provides a useful tip for handling XNET network cameras. 3 / 43...

  • Page 4: Table Of Contents

    XNET User Manual Index Appendix ..........................3 Index ............................. 4 1. System Administration ....................5 1.1. Logging On .......................... 5 1.1.1. Using Internet Explorer ....................... 5 1.1.2. ID and Password ......................... 5 1.2. Configuring Camera ......................7 1.3. Web Viewer (Index.html) ..................... 9 1.4.

  • Page 5: System Administration

    XNET User Manual 1. System Administration You can log on as an administrator using either Internet browser or ‘CMS’ software. (This manual will describe about using Internet browser only.) Type the IP Address of the XNET product in the address bar and press enter. e.g.) http://192.168.123.100 If the HTTP port has been changed from the default value, enter the new port as shown below:...
  • Page 6 XNET User Manual Figure 1-1 Log-in window The default user name and password is “root” and “admin” respectively. For security purpose, it is recommended to change the administrator’s id and password from their default values. Please be careful not to forget them or expose them to others.

  • Page 7: Configuring Camera

    XNET User Manual When you log in as an administrator, XNET’s Basic Setup page will appear as shown in Figure 1-2. Setup pages for different features can be accessed from this page. Access to each feature is controlled by different user groups (Administrator, Operator, and Viewer.) Main Menu Sub Menu...
  • Page 8 XNET User Manual ● Accessible ▬ Not Accessible Access Function Administrator Operator Viewer Index Page ● ● ● Users ▬ ▬ ● Setup Page Date&Time ▬ ● ● Setup Page Maintain Server ▬ ▬ ● Setup Page System / Log ▬...

  • Page 9: Web Viewer (Index.html)

    XNET User Manual When you access an XNET product, Web Viewer page will appear automatically. Viewer area displays the video output from the camera, and menu bar contains taps that lead to each feature setting page. Figure 1-3 Web Viewer Page 9 / 43...
  • Page 10 XNET User Manual ITEM DESCRIPTION Captures the still image and displays on a pop-up window. Capture [Save to] c:\ XNETCapture Opens up Basic Setup Page. Setup page for each XNET feature can be opened from this Menu Setting screen. (Please refer to 1.4 for detail) Open up Motion Index View page.

  • Page 11: Status Window

    XNET User Manual Status page displays XNET System’s Version and its Ethernet address. Click [ ▷ Status] button to open the page shown in Figure 1-4. Figure 1-4 Status Page 11 / 43...

  • Page 12: Configuring Users

    XNET User Manual This can give or limit authority to users for controlling Video and other features of XNET system. Click [ ▷ Users] button to open the page shown in Figure 1-5. Figure 1-5 Users Configuration Page 12 / 43...
  • Page 13 XNET User Manual ITEM DESCRIPTION Displays list of registered users. User List "root" is the system’s administrator. "root" cannot be added or deleted. Only the password for “root” can be changed. This adds a new user. Select “[Add_User]” tap in User List Box. To add a new user, enter User name, Password, and User group then click Add button.

  • Page 14: Setting Date &Time

    XNET User Manual & & This page will change Date and Time of XNET system. Click [ ▷ Date & Time] to open the page shown in Figure 1-6. Figure 1-6 Date and Time Page 14 / 43...
  • Page 15 XNET User Manual ITEM DESCRIPTION Current Server Time Displays time of XNET system. Time Zone Selects Time Zone. <Default : GMT+09> Automatically Adjust for Daylight Saving Time Enables/ Disables Daylight Saving time. Changes Sets Date and Time of the Server. 『Synchronize with computer time』...

  • Page 16: Maintaining Server Configurations

    XNET User Manual This page configures system parameters such as system restart, factory default settings, system upgrade, saving configurations, saving images, and other additional features. Click [ ▷ Maintain Server] to open the page shown in Figure 1-7. Figure 1-7 Server Maintenance Page 16 / 43...
  • Page 17 XNET User Manual ITEM DESCRIPTION Restart Restarts the system. It takes about 45 seconds. Maintain Resets all parameters except for TCP/IP settings. Light Default Server This restore will be followed by a 45 seconds system reset. Resets all parameters to Factory Default setting. Factory Default This will be followed by a 45 seconds system restart.

  • Page 18: System / Log

    XNET User Manual System / Log page provides network camera’s configuration, language, and error information to users. Click [ ▷ System / Log] button to open the page shown in Figure 1-8. Figure 1-8 System / Log Page 18 / 43...
  • Page 19 XNET User Manual ITEM DESCRIPTION System System Displays current configurations for XNet option pages. Settings Overview System LED System LED Enable / Disable System LED. Control Event LED Enable / Disable Event LED. Language File Upload language files. Upload Language File can be downloaded from http://www.cnbtec.com List Display the list of saved language files.

  • Page 20: Configuring Video

    XNET User Manual XNET’s Video features can be configured in this page. Click [ ▷ Video] button to open the page shown in Figure 1-9. Figure 1-9 Video Configuration Page 20 / 43...
  • Page 21 XNET User Manual ITEM DESCRIPTION Select a resolution of the video image. Resolution CIF | VGA | D1 | 720p | SXGA Turns Sub Stream feature on or off. <Default : Disable> Sub Stream output is in H.264 & MJPEG Codec. Enable When configuring, select Main Stream or Sub-Stream in the Live View page.

  • Page 22: Configuring Rtp

    XNET User Manual RTP / RTSP protocol ports can be configured in this page. Click [ ▷ RTP] to open the page shown in Figure 1-10. Figure 1-10 RTP page 22 / 43...
  • Page 23 XNET User Manual ITEM DESCRIPTION RTSP Enter RTSP Port of the Main Stream between 1 and 65535. RTSP Port Configuration The default is 554. Enter RTP Start Port between 1024 and 65534. RTP Start The default is 2000. Port The minimum difference between RTP Start and End Port should be 100. Enter RTP End Port between 1124 and 65535.

  • Page 24: Camera Conditions

    XNET User Manual This shows how to setup the camera functions of the XNET products. Click [Camera Condition] button to open the page shown in [Figure 1-11]. Figure 1-11 Camera Conditions Page 24 / 43...
  • Page 25 XNET User Manual ITEM DESCRIPTION OSD Menu Enable / Disable OSD menu function. Control Menu On Display OSD Menu on Viewer. OSD Menu Control Menu Off Hide OSD Menu on Viewer. ▲ ▼ , ◀, ▶ Move OSD key on Viewer. Configures Video’s White Balance.
  • Page 26 XNET User Manual Configures about the BLC function and the WDR function. (BLC: BackLight Compansation, WDR: Wide Dynamic Range) In case of using the BLC function, a damaged image from backlight can be compensated. In case of using the WDR function, it provides clear images even under backlight circumstances where intensity of illumination can BLC / WDR vary excessively when there are both very bright and very dark...

  • Page 27: Configuring Tcp/Ip Parameters

    XNET User Manual This configures XNET’s network related parameters. Click [ ▷ TCP/IP] button to open the page shown in Figure 1-12. Figure 1-12 Network Setup Page 27 / 43...
  • Page 28 XNET User Manual ITEM DESCRIPTION Turns DHCP on or off. Check DHCP checkbox to get an IP address automatically from the network using DHCP protocol. Obtained IP address can be viewed by Obtain an IP Installer. IP Address If the network does not use DHCP server, the product automatically will wait for server’s response for two minutes and restart (DHCP)

  • Page 29: Configuring Ip Filtering

    XNET User Manual This configures IP Filters for XNET product. Click [ ▷ IP Filtering] button to open the page shown in Figure 1-13. Figure 1-13 IP Filtering Page 29 / 43...
  • Page 30 XNET User Manual ITEM DESCRIPTION IP Filter Displays list of currently established IP Filters. Address List Adds an IP address to filter out. Enter the IP Address to block and click add button to add it to IP Filtering listbox. The updated list can be viewed in IP Address Listbox.

  • Page 31: Configuring Http

    XNET User Manual This configures HTTP port to access XNET’s webpage. Click [ ▷ HTTP] button to open the page shown in Figure 1-14. Figure 1-14 HTTP Page 31 / 43...
  • Page 32 XNET User Manual ITEM DESCRIPTION Enter HTTP Port to access the webpage. HTTP Default port is 80, and any other port number has to be entered at the end HTTP port of the IP address when accessing. (e.g. When using HTTP Port 8080, enter http://192.168.123.100:8080) Enter HTTPS Port to access the webpage.

  • Page 33: Configuring Upnp/Dyndns/Bonjour

    XNET User Manual UPnP is a protocol for IP installer software. You can enable or disable this UPnP, and you can also use a Friendly Name. DynDNS configures XNET’s DDNS server information. Click [ ▷ UPnP/DynDNS] to open the page shown in Figure 1-15. Figure 1-15 UPnP / DynDNS / Bonjour Page 33 / 43...
  • Page 34 XNET User Manual ITEM DESCRIPTION Enables or disables UPnP. UPnP Enable UPnP When enabled, you can use IP Installer’s XNET Auto Search feature. Settings Friendly Name Enter UPnP’s Friendly Name. Enables or disables DynDNS. Enable DynDNS When enabled, you can automatically obtain a domain from DDNS server by simply registering the XNET product.

  • Page 35: Configuring Cms

    XNET User Manual This configures XNET’s CMS Server information. Click [ ▷ CMS] to open the page shown in Figure 1-16. Figure 1-16 CMS Page ITEM DESCRIPTION Enter CMS port number for communication with CMS between 1 and CMS Port 65535.

  • Page 36: Configuring Event Type

    XNET User Manual This is related to XNET’s DDNS Server information. Click [ ▷ Event Types] to view page shown in Figure 1-17. Figure 1-17 Event Types Page 36 / 43...
  • Page 37 XNET User Manual ITEM DESCRIPTION Event Enable Enable Event Enables or disables event processing. Motion Enables or disables Motion Detection. Detection Event Mode Network Enables or disables Network Linkdown. Linkdown This displays the capture format of images or video for an event recording.

  • Page 38: Configuring Motion Detection Area

    XNET User Manual This defines areas that detect motion, and up to three different areas can be defined in each channel. Click Motion button in Operator mode to open the page shown in Figure 1-18. Figure 1-18 Motion Detection Page 38 / 43...
  • Page 39 XNET User Manual ITEM DESCRIPTION Displays currently defined Motion Detection area. When an area is selected from the list, its defined area gets displayed AREA and highlighted in viewer window. Up to 3 motion detection area can be defined. When this is checked, only the selected area gets displayed in viewer Show Selected Area window.

  • Page 40: Smtp Setup

    XNET User Manual This configures mailing out method of Alarm Images once ‘event’ occurred in the XNET system. Click [ ▷ SMTP] button to open the page shown in Figure 1-19. Figure 1-19 SMTP Page 40 / 43...
  • Page 41 XNET User Manual ITEM DESCRIPTION Turns Internal SMTP Server on or off. When this box is checked, Alarm Image gets mailed out through an Enable internal mail server. Mail Authentication cannot be used in this mode. Internal SMTP When this box is unchecked, Alarm Image gets mailed out through an Server external mail server.

  • Page 42: Configuring Ftp

    XNET User Manual This configures how the Alarm Images get sent out using FTP once ‘event’ occurred in the XNET system. Click [ ▷ FTP] button to open the page shown in Figure 1-20. Figure 1-20 FTP Page 42 / 43...
  • Page 43 XNET User Manual ITEM DESCRIPTION Enter the address of the FTP server to send Alarm Images to in the event processing. FTP Name The client PC at that IP address has to run the FTP server in order to Server receive the Alarm Images.
