CNB XNET IVC5055VR Installation Manual

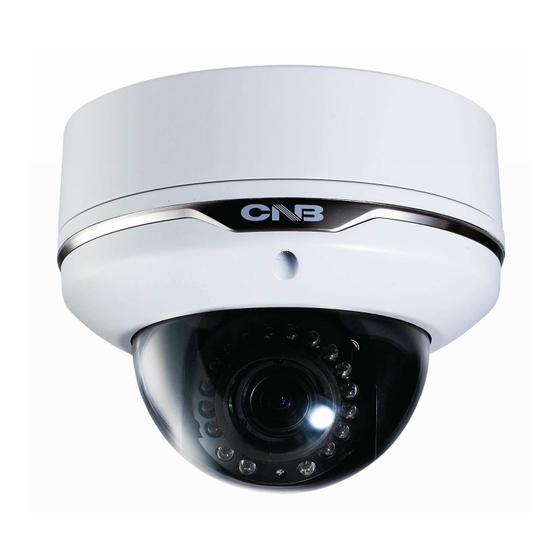

Network dome camera
Hide thumbs Also See for XNET IVC5055VR:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual, Installation Manual
X
N
E
T
N
e
t
w
o
r
k
D
o
m
e
X
N
E
T
N
e
t
w
o
r
k
D
o
m
e
XNET Network Dome Camera( IVC5055VR)
C
a
m
e
r
a
I
n
s
t
a
l
l
a
t
i
o
n
G
C
a
m
e
r
a
I
n
s
t
a
l
l
a
t
i
o
n
G

Installation Guide

u
i
d
e
u
i
d
e
Ver. 1.0
1 / 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNET IVC5055VR and is the answer not in the manual?

Questions and answers

Related Manuals for CNB XNET IVC5055VR

Summary of Contents for CNB XNET IVC5055VR

  • Page 1: Installation Guide

    XNET Network Dome Camera( IVC5055VR) Installation Guide Ver. 1.0 1 / 20...

  • Page 2: About This Manual

    Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by use of parts not recommended and by misuse will not be applicable for support.

  • Page 3: Table Of Contents

    Index 1. About XNET ......................4 1.1. About XNET ......................4 1.2. Features of XNET ....................4 1.3. Applications ......................4 2. About the Product ...................... 5 2.1. Contents ......................5 2.2. Product Information ................... 5 2.3. Hardware Designation ..................6 2.3.1.

  • Page 4: About Xnet

    1. About XNET XNET is an internet based security and surveillance system that is compatible with various network conditions through easy installation and user interface as well as multi-functional compressor Codec such as H.264, MJPEG. XNET provides stable real-time surveillance by real time video/ audio at 1080P level, local storage for any network problems, and hybrid IP technology that can be used with existing analog CCTV devices.

  • Page 5: About The Product

    Install CD XNET Viewer Program (IVC5055VR) IP-Installer (CNB-CMS) IP Dome Camera A software that assigns an IP address A software that monitors and records (IVC5055VR) to the product Audio and Video signal from the device...

  • Page 6: Hardware Designation

    This shows Camera module inside the dome cover. Analog video output Analog Video Output Factory Reset button Factory Reset button Factory Reset button Factory Reset button Act,Link LED Power Terminal Recalls factory default configurations EVENT LED EVENT LED EVENT LED EVENT LED : EVENT Alarm Out signal is turned on.

  • Page 7: Connecting Cables

    LINE COLOR FUNCTION BROWN Alarm-Out(+) ORANGE Alarm-Out(-) BLUE Alarm-In(+) GREEN Alarm-In(-) MIC/Line-in WHITE Line-Out BLACK GRAY Not Used YELLOW Not Used     Power Input(#1, #2) Use the cable adapter(DC12V JACK) in the package to connect power. Please use the accessory power supply provided in the package. Except when connected to AC24V DC jack please use(DC12V/2A,AC24V 2.5A) Analog Video Output Use this output for immediate monitoring of the video during installation.
  • Page 8 Factory Reset Press and hold for more than 3 seconds while power is on to recall factory default settings Network Cable This Ethernet terminal connects to 100Mbps LAN through an RJ-45 cable. When optional PoE is used, the power will be supplied from the Network Cable. Network cable of this product is not water proof SD CARD SLOT : Enables recording of video data to an external memory device upon occurrence of an event.

  • Page 9: Connecting To Alarm Devices

    Alarm Input Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.) Alarm Sensor device requires a separate power source. Internal Circuitry External Circuitry Alarm Output...

  • Page 10: Software Installation

    3. Software Installation This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store. Our homepage is http://www.cnbtec.com Mount the Camera to a ceiling or a wall.

  • Page 11: Cable Connection

    Connect XNET to PC directly User can monitor and configure XNET camera by connecting it to your PC directly. A. Connect XNET camera to your PC directly using a LAN cable like below. COMPUTER Crossover Network Cable XNET camera’s IP address will be automatically set to the default NOTE: value, 192.168.123.100, after connecting XNET camera to your PC directly.
  • Page 12 C. Please insert the Setup CD into your CD-ROM drive, and then please setup IPInstaller program. D. Please click ‘Next’ button when the Setup screen appear. E. Please click ‘Install’ button to begin the Installation. F. Please click ‘Finish’ button to complete the installation. 12 / 20...
  • Page 13 G. XNET IP Installer program is automatically launched like below right after the program installation. Please double click XNET camera on the list. H. XNET camera is successfully connected to your PC. (Internet Explorer will prompt you to install ActiveX. In order to view video, you must accept the ActiveX download.
  • Page 14 Connect XNET with a router Please connect XNET camera and PC to a router using LAN cables like below. NETWORK HUB COMPUTER Direct Network Cable If DHCP server is enabled at your router, XNET camera automatically receives an NOTE: IP address from your router. Otherwise, XNET camera’s IP address will be automatically set to the default value, 192.168.123.100.

  • Page 15: Installing Ip-Installer Software And Configuring Ip Address

    A unique IP address has to be configured in order to connect IP camera and monitoring PC to a network. IP- Installer software provided in the Installation CD (included in the package and also available to download from our website http://www.cnbtec.com) will configure IP address easily. If your network have a DHCP server that automatically assigns IP addresses to IP cameras.
  • Page 16 B. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-3. Figure 3-3. IP Address box C. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear. Figure 3-4.

  • Page 17: Using Web Viewer

    4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD.

  • Page 18: Web Viewer Page

    Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2 Web Viewer Page Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:\xNetCapture Brings up Menu screen.

  • Page 19: Specification

    SDI Image upload over FTP server / SMTP (E-mail server) After Event process Browser Internet Explorer 6.0 or later Applications Monitoring Application CNB NVR, CNB CMS and Utility (IP-Installer, etc) Firmware upgrade over HTTP Maintenance System Upgrade IP Class IP 67 -20℃...
  • Page 20 20 / 20...
