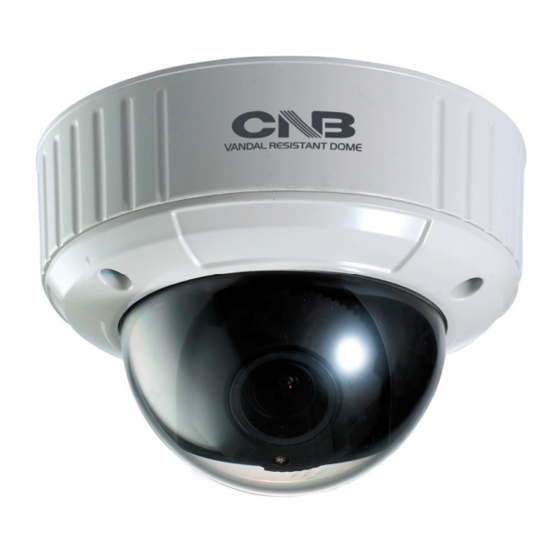

- Page 1 Ver. 1.0 XNET Network Dome Camera (IDB4110NVF/IDB4110PVF/IVB4110NVF/IVB4110PVF) Installation Manual...
-
Page 2: About This Manual
About this Manual A compatibility and durability test ensured this product’s high performance. This manual is for XNET Network Dome Camera users only, and it describes operations related to XNET Network Dome Camera. Please read this manual thoroughly paying attention to cautions and warnings before using the product even if you have used similar products before. -
Page 3: Table Of Contents
Index 1. About XNET ........................4 1.1. About XNET ..........................4 1.2. Features of XNET ........................4 1.3. Applications ..........................4 2. About the Product ......................5 2.1. Contents ........................... 5 2.2. Product Information ........................5 2.2.1 Product Composition ..................... 5 2.3. -
Page 4: About Xnet
1. About XNET XNET is an internet based security and surveillance system that is compatible with various network conditions through easy installation and user interface as well as multi-functional compressor Codec such as H.264, MPEG-4,MJPEG. XNET provides stable real-time surveillance by real time video/ audio at D1 level, local storage for any network problems, and hybrid IP technology that can be used with existing analog CCTV devices. -
Page 5: About The Product
2. About the Product Please make sure the following contents are included when you open the package Contents Description Additional info. XNET XNET IP Dome Camera 2Jack Cable AC Power Cable, INPUT : 100~240VAC 50-60Hz POWER ADAPTOR OUTPUT : 12VDC 2A GUIDE PATTERN Guide Pattern Software and User’s manual... -
Page 6: Hardware Designation
This shows Camera module inside the dome cover. Analog Video Output Network Terminal Power Terminal Factory Reset button Recalls factory default configurations Alarm Input/Output Network DC FAN PWR,CPU,EVENT LED Mic/Audio Input Factory Reset Press and hold for more than 3 seconds while power is on to recall factory default settings Adjusting Lens ... - Page 7 Power Supplies Power to the Xnet product. Use 12V DC Adapter in the package. Connect to a Monitor Connect to an Adaptor Do not use this connector when powering up the product through LAN cable. (PoE) The product is not covered under warranty when it is damaged by connecting both Ethernet power and 12V DC power to this terminal.
- Page 8 ALARM Input/Output Connect to Alarm Input and Output Sensor Input : Wires from various sensor type (IR, heat, and magnetic) can be connected. Relay Output : Connect to an external Alarm device that operates by a relay such as Siren Lamp or Alarm Light.
-
Page 9: Connecting To Alarm Devices
Alarm Input Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.) Alarm Sensor device requires a separate power source. Internal Circuitry External Circuitry Alarm Output... -
Page 10: Software Installation
3. Software Installation This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store. Mount the Camera to a ceiling or a wall. -
Page 11: Cable Connection
Adjust the position, zoom, and focus as shown below: TILT : 90˚ FOCUS Horizontal ZOOM Rotation : 360˚ PAN : 360˚ A PC or a laptop computer is required to set up an IP address. Compatible operating system: Windows 2000/ Windows XP/ Windows Vista Since the default IP address of the device is 192.168.123.100, set up the IP address of the computer like the following: IP Address : 192.168.123.101 Subnet Mask : 255.255.255.0... -
Page 12: Installing Ip-Installer Software And Configuring Ip Address
A unique IP address has to be configured in order to connect IP camera and monitoring PC to a network. IP- Installer software provided in the Installation CD (included in the package) will configure IP address easily. If your network have a DHCP server that automatically assigns IP addresses to IP cameras. If your network does not have a DHCP server, the default IP address of the device is 192.168.123.100. - Page 13 2. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-3. Figure 3-3. IP Address box 3. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear. Figure 3-4.
-
Page 14: Using Web Viewer
4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD. - Page 15 Enter the user name and password to bring up the web viewer page. The default id and password is “root”, “admin” respectively. If you want to use a different HTTP port number from the default value, simply put a colon and port number at the end of the IP address. (For example, enter the following address when changing the port to 8080: http://192.168.123.100:8080) <Address format for accessing as an administrator>...
-
Page 16: Web Viewer Page
Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page 16 / 19... - Page 17 Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:₩xNetCapture Brings up Menu screen. Setup page for each XNET feature can be opened from this Menu screen. Setting Please refer to [XNET Owner’s Manual] for detail.
-
Page 18: Specification
5. Specification IDB4110NVF/ IDB4110PVF Specifications IVB4110NVF/ IVB4110PVF Camera Signal System NTSC / PAL Scanning System 10Bit Digital out - De-Interlace Image Sensor 1/3" High sensitivity CCD Sync. System Internal Effective Pixel Number NTSC / 768 (H) x 494(V) PAL / 752 (H) x 582(V) Horizontal Resolution 580 TV Lines(BW 650 TV lines) Video Output Level... - Page 19 Video access from Camera live view for up to 10 clients- browser LAN Interface Ethernet 10/100 Base-T ( RJ-45 Type) Support PoE Standard IEEE 802.3af supported Security Access level setup Multiple user access levels with password protection Network Security IP Filtering Alarm and Event Image detection Motion Detection(Select 3 Regions –...
