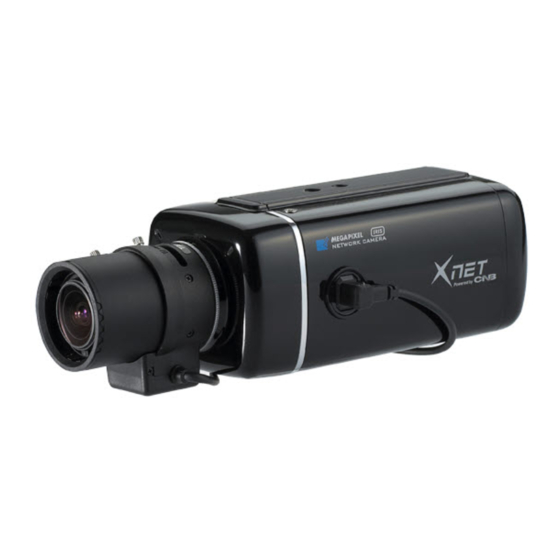

- Page 1 Ver. 1.0 XNET Network Box Camera (IGP2035F) Installation Manual...
- Page 2 Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by use of not suggested parts and misuse will not be applicable for support.
-
Page 3: Table Of Contents
XNET Network Box Camera Installation Manual Index 1. About XNET ........................4 1.1. About XNET ..........................4 1.2. Features of XNET ........................4 1.3. Applications ..........................4 2. About the Product ......................5 2.1. Contents ..........................5 2.2. Product Information ........................ 5 2.3. -
Page 4: About Xnet
XNET Network Box Camera Installation Manual 1. About XNET XNET is an internet based security and surveillance system that is compatible with various network conditions through easy installation and user interface as well as multi-functional compressor Codec such as MJPEG and H.264. -
Page 5: About The Product
XNET Network Box Camera Installation Manual 2. About the Product Please make sure the following contents are included when you open the package Contents Description Additional info. XNET product Network Box Camera (Lens not included) Auto Iris Lens Plug Connection plug for Auto-Iris control signal Input: 100~240VAC 50-60Hz Power adapter and AC power cord... -
Page 6: Functions And Designations
XNET Network Box Camera Installation Manual Auto Iris control plug Mounting Screw Hole 1/4”. 20 UNC(20 THREAD) L : 4.5mm +-0.2mm (ISO standard) or 0.197” (ASA standard) CS Ring Fix Screw C Ring Attach both C Ring and CS Ring to use C-mount Lens Lens(Sold Separately) CS Ring Attach CS Ring only to use... -
Page 7: Front / Rear View
XNET Network Box Camera Installation Manual STATUS LED Factory Reset Figure 2-2. Network Camera Front / Rear view Power LED STATUS LED : Indicate the status of the product EVENT LED : If the alarm out is operating, the green LED blinks. SYSTEM LED : The system operates normally when the blue LED operates. - Page 8 XNET Network Box Camera Installation Manual LINK : Yellow light indicates that he network is properly connected. ACT : Green light indicates that the XNET system connected to 100Mbps LAN. This green lamp will blink if the system receives data. STATUS LED : Indicates the operation status EVENT LED : Green light indicates that Alarm Out signal is turned on.
-
Page 9: Connecting To Alarm Devices
XNET Network Box Camera Installation Manual Alarm Input Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.) Alarm Sensor device requires a separate power source. -
Page 10: Software Installation
XNET Network Box Camera Installation Manual 3. Software Installation This section provides brief guidelines to install the XNET software quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store. -
Page 11: Installing Ip-Installer Software And Configuring Ip Address
XNET Network Box Camera Installation Manual A unique IP address has to be configured in order to connect network camera and monitoring PC to a network. IP-Installer software provided in the Installation CD (included in the package and also available to download from our website http://www.cnbtec.com) will configure IP address easily. - Page 12 XNET Network Box Camera Installation Manual 2. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-2. Figure 3-2. IP Address box 3. When you enter the IP address and click Set button, the box shown in Figure 3-3 will appear. Figure 3-3.
-
Page 13: Using Web Viewer
XNET Network Box Camera Installation Manual 4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD. - Page 14 XNET Network Box Camera Installation Manual Enter the user name and password to bring up the web viewer page. The default id and password is “root”, “admin” respectively. If you want to use a different HTTP port number from the default value, simply put a colon and port number at the end of the IP address.
-
Page 15: Web Viewer Page
XNET Network Box Camera Installation Manual Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page 15 / 18... - Page 16 XNET Network Box Camera Installation Manual Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:₩xNetCapture Brings up Menu screen. Setup page for each XNET feature can be opened from this Menu screen. Setting Please refer to [XNET Owner’s Manual] for detail.
-
Page 17: Specifications
IPv4, HTTP, TCP, RTSP, RTP, UDP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour, Network Protocol ARP, DNS, DynDNS Supported DDNS CNB DDNS, DynDNS.org, Reference code with SDK Video access from Web browser Camera live view for up to 10 clients(D1, Depends on Video Rate) LAN Interface Ethernet 10/100 Base-T Support PoE Standard IEEE 802.3af supported... - Page 18 XNET Network Box Camera Installation Manual 18 / 18...
