Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by use of not suggested parts and misuse will not be applicable for support.
Network Dome/Vandal Camera Installation Manual Index 1. About XNET ............................ 4 1.1. About XNET ..........................4 1.2. Features of XNET ........................4 1.3. Applications ..........................4 2. About the Product .......................... 5 2.1. Contents ........................... 5 2.2. Product Information ........................5 2.3.
Network Dome/Vandal Camera Installation Manual 1. About XNET XNET is an internet based security and surveillance system that is compatible with various network conditions through easy installation and user interface as well as multi-functional compressor Codec such as MJPEG, MPEG-4, and H.264. XNET provides stable real-time surveillance by real time video/ audio at D1 level, local storage for any network problems, and hybrid IP technology that can be used with existing analog CCTV devices.

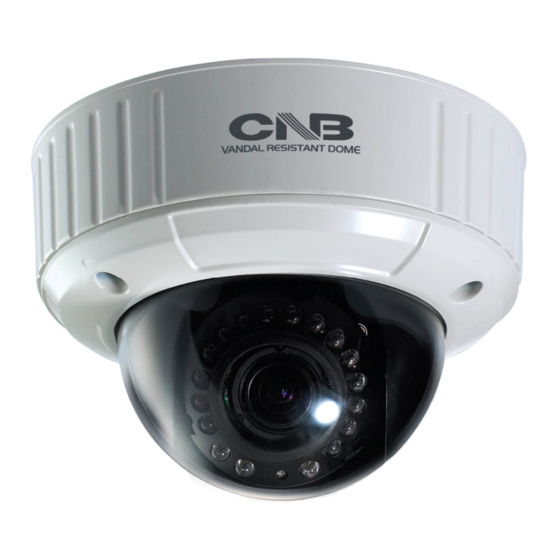

Network Dome/Vandal Camera Installation Manual 2. About the Product Please make sure the following contents are included when you open the package Contents Description Additional info. XNET XNET IP Dome Camera Input: 100~240VAC 50-60Hz Power adapter Output : 12VDC, 2A AC power Cord 2 jack cable Terminal...
Network Dome/Vandal Camera Installation Manual This shows Camera module inside the dome cover. Mic/Audio Input Audio Output Alarm Input/Output Analog Video Output Network Power Terminal Zoom Adjust Factory Reset button Recalls factory default Focus Adjust configurations CDS Sensor IR LED This CDS Sensor detects Low Light (night) and turns on IR LEDs.
Network Dome/Vandal Camera Installation Manual Power Supplies Power to the Xnet product. Use 12V DC Adapter in the package. Do not use this connector when powering up the product through LAN cable. (PoE) The product is not covered under warranty when it is damaged by connecting both Ethernet power and 12V DC power to this terminal.
Network Dome/Vandal Camera Installation Manual Network Terminal This Ethernet terminal connects to 100Mbps LAN through an RJ-45 connector. When optional PoE is used, the power will be supplied from the Network Cable. Link LED Yellow light indicates that the network is properly connected. Act LED Green light indicates that the XNET system connected to 100Mbps LAN.
Network Dome/Vandal Camera Installation Manual 3. Software Installation This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store.
Network Dome/Vandal Camera Installation Manual Adjust the position, zoom, and focus as shown below: TILT : 90˚ FOCUS Horizontal ZOOM Rotation : 360˚ PAN : 360˚ 1.A PC or a laptop computer is required to set up an IP address. Compatible operating system: Windows 2000/ Windows XP/ Windows Vista Since the default IP address of the device is 192.168.123.100, set up the IP address of the computer like the following:...
Network Dome/Vandal Camera Installation Manual A unique IP address has to be configured in order to connect IP camera and monitoring PC to a network. IP- Installer software provided in the Installation CD (included in the package and also available to download from our website http://www.cnbtec.com) will configure IP address easily.
Page 12
Network Dome/Vandal Camera Installation Manual 2. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-3. Figure 3-3. IP Address box 3. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear. Figure 3-4.
Network Dome/Vandal Camera Installation Manual 4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This manual explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to...
Page 14
Network Dome/Vandal Camera Installation Manual Enter the user name and password to bring up the web viewer page. The default id and password is “root”, “admin” respectively. If you want to use a different HTTP port number from the default value, simply put a colon and port number at the end of the IP address.
Network Dome/Vandal Camera Installation Manual Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page 15 / 18...
Page 16
Network Dome/Vandal Camera Installation Manual Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:₩xNetCapture Brings up Menu screen. Setup page for each XNET feature can be opened from this Menu screen. Setting Please refer to [XNET Owner’s Manual] for detail.
Network Dome/Vandal Camera Installation Manual 5. Specification IDP4030VR/IVP4030VR Specifications Signal System Progressive image processing Scanning System 4:3 Progressive Pixel Clock 48 MHZ Scanning Frequency (H) 26 KHz (NTSC) / 27 KHz (PAL) Scanning Frequency (V) 24 KHz (NTSC) / 25 KHz (PAL) Image Sensor Progressive CMOS Sensor Sync.
Page 18
Network Dome/Vandal Camera Installation Manual JPEG Image write to Internal memory Local storage - Internal memory : Max 32MByte Detail time-set : Max Pre alarm 5 sec / Post alarm 8 sec Pre / Post alarm Local storage (Internal memory : JPEG image) Browser Internet Explorer 6.0 over Web Viewer (Window Web Browser Base)
