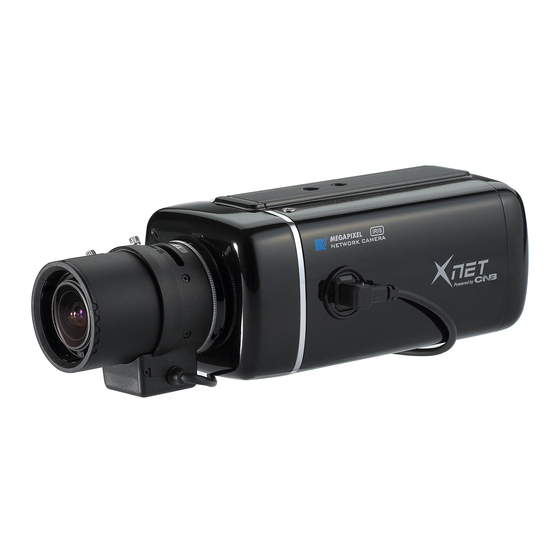

- Page 1 Ver. 1.1 XNET Network Box Camera (IGC2050F) Installation Manual...
-
Page 2: About This Manual
XNET Network Box Camera Installation Manual About this Manual A compatibility and durability test ensured this product’s high performance. This installation guide is for XNET Network Box Camera users only, and it describes operations related to XNET Network Box Camera. Please read this manual thoroughly paying attention to cautions and warnings before using the product even if you have used similar products before. -
Page 3: Table Of Contents
XNET Network Box Camera Installation Manual Index 1. About XNET ........................4 1.1. About XNET ..........................4 1.2. Features of XNET ........................4 1.3. Applications ..........................4 2. About the Product ......................5 2.1. Contents ..........................5 2.2. Product Information ........................ 5 2.3. -
Page 4: About Xnet
XNET Network Box Camera Installation Manual 1. About XNET XNET is an internet based security and surveillance system that is compatible with various network conditions through easy installation and user interface as well as multi-functional compressor Codec such as MJPEG and H.264. -
Page 5: About The Product
2P * 1ea, 6P * 1ea Power Jack 2 jack Software and User’s manual Install CD XNET (IGC2050F) IP-Installer Viewer Program (XNET-NVR) A software that monitors and records Network Camera (Lens not A software that assigns an IP Audio and Video signal from the... -
Page 6: Functions And Designations
XNET Network Box Camera Installation Manual Auto Iris control plug Mounting Screw Hole 1/4”. 20 UNC(20 THREAD) L : 4.5mm +-0.2mm (ISO standard) or 0.197” (ASA standard) CS Ring Fix Screw C Ring Attach both C Ring and CS Ring to use C-mount Lens Lens(Sold Separately) CS Ring Attach CS Ring only to use... -
Page 7: Front / Rear View
XNET Network Box Camera Installation Manual STATUS LED Factory Reset Power LED Figure 2-2. Network Camera Front / Rear view STATUS LED : Indicate the status of the product EVENT LED : If the alarm out is operating, the green LED blinks. SYSTEM LED : The system operates normally when the blue LED blinks MIC : Have built-in microphone. - Page 8 XNET Network Box Camera Installation Manual NETWORK : This Ethernet terminal connects to 10Mbps or 100Mbps LAN through an RJ-45 connector. When optional PoE is used, the power will be supplied from the Network Cable. LINK : Yellow light indicates that he network is properly connected. ACT : Green light indicates that the XNET system connected to 100Mbps LAN.
-
Page 9: Connecting To Alarm Devices
XNET Network Box Camera Installation Manual Alarm Input Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.) Alarm Sensor device requires a separate power source. -
Page 10: Software Installation
XNET Network Box Camera Installation Manual 3. Software Installation This section provides brief guidelines to install the XNET software quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store. -
Page 11: Installing Ip-Installer Software And Configuring Ip Address
XNET Network Box Camera Installation Manual A unique IP address has to be configured in order to connect network camera and monitoring PC to a network. IP-Installer software provided in the Installation CD (included in the package) will configure IP address easily. - Page 12 XNET Network Box Camera Installation Manual 2. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-2. Figure 3-2. IP Address box 3. When you enter the IP address and click Set button, the box shown in Figure 3-3 will appear. Figure 3-3.
-
Page 13: Using Web Viewer
XNET Network Box Camera Installation Manual 4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD. -
Page 14: Web Viewer Page
XNET Network Box Camera Installation Manual Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page 14 / 17... - Page 15 XNET Network Box Camera Installation Manual Item Sub Item Description Captures and saves the current image as a still picture. Capture The image is saved as jpeg file in the following folder: C:₩xNetCapture Brings up Menu screen. Setup page for each XNET feature can be opened from this Menu screen. Setting Please refer to [XNET Owner’s Manual] for detail.
-
Page 16: Specifications
XNET Network Box Camera Installation Manual 5. Specifications IGC2050F Specifications Signal System Progressive image processing Scanning System 16:9 Progressive Pixel Clock 80MHz Image Sensor Progressive CMOS Sensor Sync. System Internal Effective Pixels Number 1920 (H) x 1080(V) 2.0 Mega Horizontal Resolution... - Page 17 XNET Network Box Camera Installation Manual 17 / 17...
