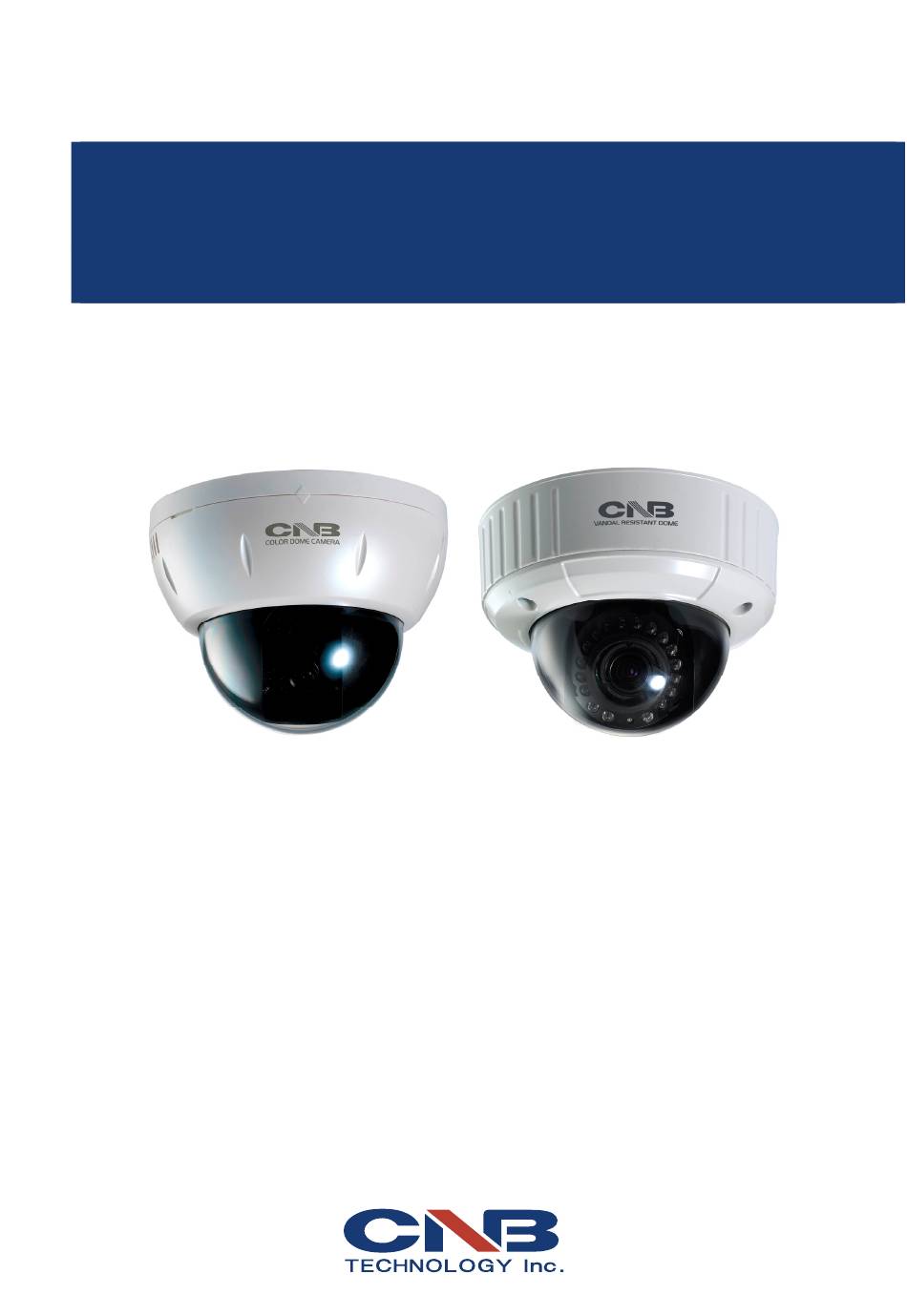

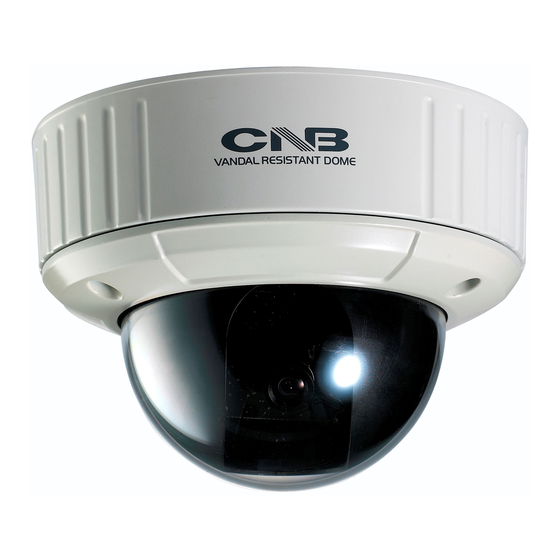

Ver. 1.02
XNET
(IDC4000T/IVC4000T)
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNET IDC4000T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CNB XNET IDC4000T

Summary of Contents for CNB XNET IDC4000T

  • Page 1 Ver. 1.02 XNET (IDC4000T/IVC4000T) User Manual...
  • Page 2 Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by use of parts not recommended and by misuse will not be applicable for support.

  • Page 3: Table Of Contents

    XNET User Manual Index System Administration ....................... 4 Logging On ......................4 1.1. Using Internet Explorer ................... 4 1.1.1. ID and Password..................... 4 1.1.2. Web Viewer ......................6 1.2. Status Window ......................8 1.3. Configuring Users ....................9 1.4. Setting Date & Time ....................11 1.5.

  • Page 4: System Administration

    XNET User Manual 1. System Administration 1.1. Logging On You can log on as an administrator using either Internet browser or ‘CNB CMS’ software. (This manual will describe about using Internet browser only.) 1.1.1. Using Internet Explorer Type the IP Address of the XNET product in the address bar and press enter.
  • Page 5 XNET User Manual The default user name and password is “root” and “admin” respectively. log in as an administrator, XNET’s Basic Setup page will appear as shown in Figure 1-2. Setup pages for different features can be accessed from this page. Access to each feature are controlled by different For security purpose, it is recommended to change the administrator’s id and password from their default values.

  • Page 6: Web Viewer

    XNET User Manual 1.2. Web Viewer When you access an XNET product, Web Viewer page will appear automatically. Viewer area displays the video output from the camera, and menu bar contains taps that lead to each feature setting page. Figure 1-2 If Live View page is broken, press the refresh button(F5) of Internet Explorer.
  • Page 7 XNET User Manual Item Sub Item Descritption Captures the still image. Capture Document₩XNetCapture (2000, XP) Document₩XNetCapture (Vista, 7) Opens up Basic Setup Page. Setup page for each XNET feature can be opened Setting from this Menu screen. (Please refer to 1.4 for detail) Opens up Index View page.

  • Page 8: Status Window

    XNET User Manual 1.3. Status Window Status page displays XNET System’s Version and its Ethernet address. Click [Status] button to open the page shown in Figure 1-3. Figure 1-3 8 / 30...

  • Page 9: Configuring Users

    XNET User Manual 1.4. Configuring Users This can give or limit authority to users for controlling Video and other features of XNET system. Click [Users] button to open the page shown in Figure 1-4. Figure 1-4 9 / 30...
  • Page 10 XNET User Manual Item Sub Item Description [User Displays list of registered users. Group] "root" is the system’s administrator. "root" cannot be added or User Name deleted. Only the password for “root” can be changed. Adds a new user. Select “[Add_User]” tap in User List Box. To add a new user, enter User name, Password, and User group then click Add button.

  • Page 11: Setting Date & Time

    XNET User Manual 1.5. Setting Date & Time This page will change Date and Time of XNET system. Click [Date & Time] to open the page shown in Figure 1-5. Figure 1-5 11 / 30...
  • Page 12 XNET User Manual Item Sub Item Description Current Server Displays time of XNET system. Time Sets Date and Time of the Server. <Default : None> [Set Manually] - Set date and time of Server manually. [Synchronize with computer time] New Server Time - Synchronizes time and date of Client PC to Server.
  • Page 13 XNET User Manual 1.6. Maintain Server Configuration This page configures system parameters such as system restart, factory default settings, system upgrade, saving configurations, saving images, and other additional features. Click [Maintain Server] to open the page shown in Figure 1-6. Figure 1-6 13 / 30...
  • Page 14 XNET User Manual Item Sub Item Description Restart Restarts the system. It takes about 45 seconds. Resets all parameters to Factory Default setting. Factory Default This will be followed by a 45 seconds system Maintain Server restart. Resets all parameters except for TCP/IP settings. Light Default This will be followed by a 45 seconds system reset.

  • Page 15: Generating Log Report

    XNET User Manual 1.7. Generating Log Report Log report contains detailed information about XNET’s image, setup, and error. Click [System / Log] button to open the page shown in Figure 1-7. Figure 1-7 Item Sub Item Description Log Report Displays login time and alarm information. Table 1-5 15 / 30...

  • Page 16: Configuring Video

    XNET User Manual 1.8. Configuring Video XNET’s Video features can be configured in this page. Click [Video] button to open the page shown in Figure 1-8. Figure 1-8 16 / 30...
  • Page 17 XNET User Manual 제목 부제목 설명 Camera Name Rename the network camera. Video Codec Select a resolution of the video image. Camera Setting Resolution 640x480 320x240 Selects Video format at Video Out terminal Color System between NTSC and PAL. Rate Control Select a bit rate type of the MPEG4 video image.

  • Page 18: Configuring Camera Condition

    XNET User Manual 1.9. Configuring Camera Condition This page configures XNET’s camera features. Click [Camera Condition] button to open the page shown in Figure 1-9. Figure 1-9 18 / 30...
  • Page 19 XNET User Manual Item Sub Item Description Configures Video’s White Balance. White Balance means balancing color temperature by adjusting Red and Blue level. White Balance Auto mode will adjust White Balance automatically, while manual mode will adjust white balance level according to manually configured Red and Blue level.
  • Page 20 XNET User Manual Configures Exposure of Video. Exposure means to control brightness of video by adjusting Gain value. In auto mode, Exposure will automatically be adjusted to proper level according to its Exposure selected Indoor or Outdoor type. In manual mode, Exposure will be adjusted Gain &...

  • Page 21: Configuration Audio

    XNET User Manual 1.10. Configuration Audio XNET’s audio features can be configured in this page. Click [Audio] button to open the page shown in Figure 1-10. Figure 1-10 Item Sub Item Description Audio Enable Enables or Disables audio feature. Select audio input source between Microphone and line.

  • Page 22: Configuration The Network(Tcp/Ip) Parameters

    XNET User Manual 1.11. Configuration the Network(TCP/IP) parameters This configures XNET’s network related parameters. Click [TCP/IP] button to open the page shown in Figure 1-11. Figure 1-11 22 / 30...
  • Page 23 XNET User Manual Item Sub Item Description Turns DHCP on or off. Check DHCP checkbox to get an IP address automatically from the network using DHCP protocol. Enable DHCP Obtained IP address can be viewed by IP Installer. (Note) If the network does not use DHCP server, the product will wait for server’s response for two minutes and restart with its previous IP address.

  • Page 24: Configuration Ddns

    XNET User Manual 1.12. Configuration DDNS You can enable or disable this DDNS and configures XNET’s DDNS server information. Click [DDNS] to open the page shown in Figure 1-12. Figure 1-12 Item Sub Item Description Enables or disables DDNS. Enable DDNS When enabled, you can automatically obtain a Function...

  • Page 25: Configuration Rtp/Rtsp

    XNET User Manual 1.13. Configuration RTP/RTSP This is related to XNET’s DDNS server information. Click [RTP/RTSP] to open the page shown in Figure 1-13. Figure 1-13 Item Sub Item Description Enter RTSP port of the MPEG4 stream between 1 RTSP Port and 65535.

  • Page 26: Smtp Setup

    XNET User Manual 1.14. SMTP Setup This configures mailing out method of Alarm Images once ‘event’ occurred in the XNET system. Click [SMTP] button to open the page shown in Figure 1-14. Figure 1-14 Item Sub Item Description Turns Internal SMTP Server on or off. When this box is checked, Alarm Image gets mailed out through an internal mail server.

  • Page 27: Ftp Setup

    XNET User Manual 1.15. FTP Setup This configures how the Alarm Images get sent out using FTP once ‘event’ occurred in the XNET system. Click [FTP] button to open the page shown in Figure 1-15. Figure 1-15 Item Sub Item Description Enter the address of the FTP server to send Alarm Images to in the event processing.

  • Page 28: Configuration Motion Detection Area

    XNET User Manual 1.16. Configuration Motion Detection area This defines areas that detect motion. Click [Motion Detection] button to open the page shown in Figure 1-16. Figure 1-16 Item Sub Item Description Motion Enables or disables motion detection. Detection Motion Detection Sets sensitivity for detecting motions, “1”...

  • Page 29: Configuration Event Type

    XNET User Manual 1.17. Configuration Event Type This is related to XNET’s event information. Click [Event Type] to view page shown in Figure 1-17. Figure 1-17 Item Sub Item Description Sensor Enables or disables the alarm sensor. Event Mode Motion Enables or disables the motion detection.

  • Page 30: Configuration Sensor / Alarm

    XNET User Manual 1.18. Configuration Sensor / Alarm This is related to XNET’s event information. Click [Sensor / Alarm] to open the page shown in Figure 1-18. Figure 1-18 Item Sub Item Description Selects the signal type for alarm input port Sensor Sensor / Alarm between Normally Close and Normally Open.

This manual is also suitable for:

Xnet ivc4000t
