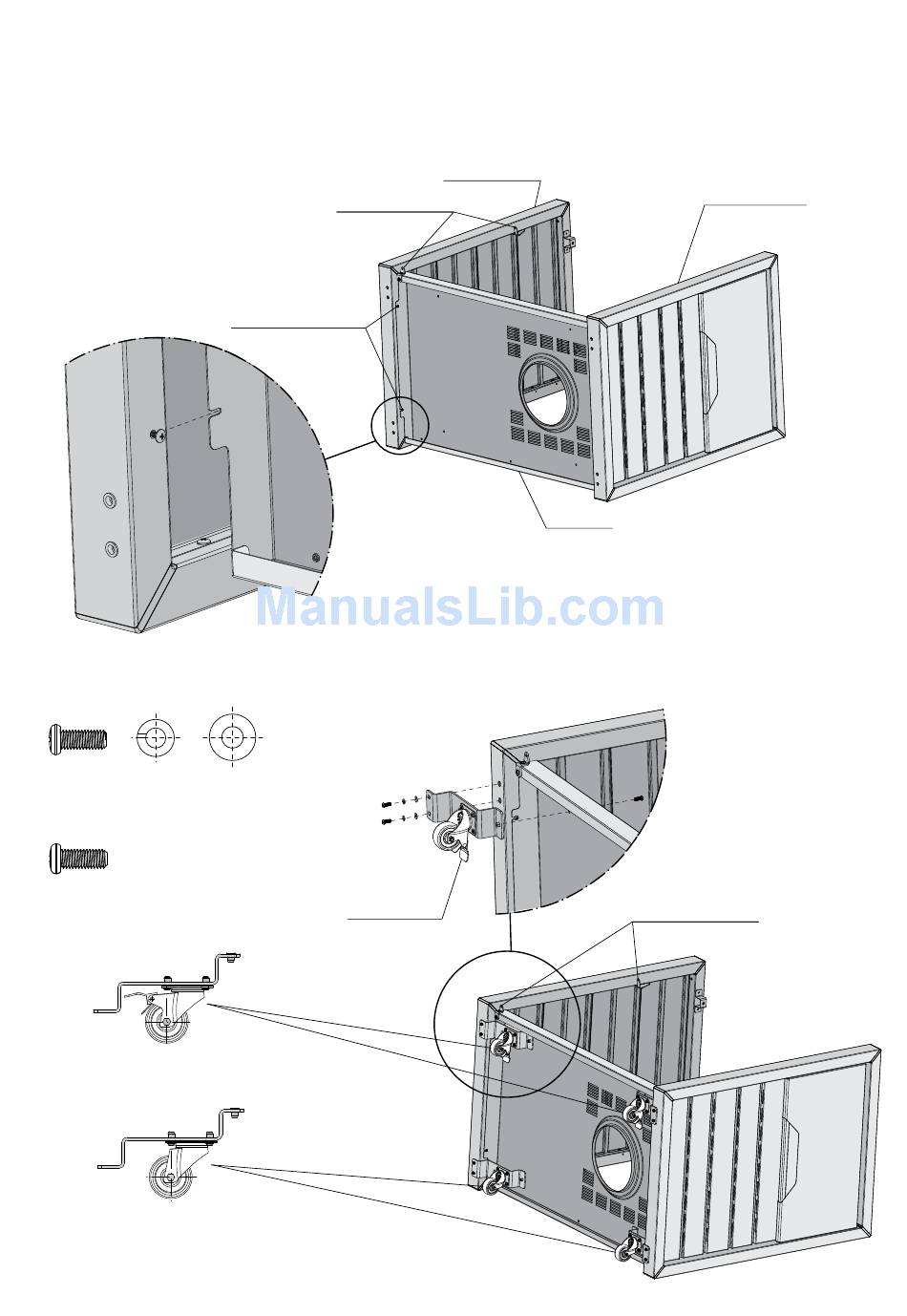

7. Fit side panels to base panel
Slide base panel slots under screw heads
and tighten screws 4 places (2 each side)
8. Fit wheel and bracket assemblies
Qty 8
Type 2 screw (M6 x 20)
Spring washer
Flat washer
Qty 4
Type 2 screw (M6 x 20)
Qty 2
Wheel assembly with brake
Qty 2
Wheel assembly without brake
All hinge brackets
this side up
Base panel secured by
2 screws each side
Wheel assembly
with brake
electrolux en:tice barbecue assembling the barbecue 13
Left side panel
assembly
Base panel
Right side panel
assembly
Door hinge brackets
this side up
