22 choosing a location/installation warnings electrolux en:tice barbecue
7. Turndown adjustment
When converting to natural gas the turndown setting
will need to be adjusted to give a satisfactory flame
on low setting.
• Remove all knobs from valve shafts
• Using a Phillips head screw driver, fully screw in
clockwise the valve rotation limit screw. When this is
done the valve rotation will be limited to less than 180°.
• Repeat this for all valves
• Following connection of the gas and leak testing as
per previous steps, light all burners and set to high.
• One burner at a time turn the valve shaft to lowest
setting, observe the flame to ensure a small steady
flame is achieved.
• Turn burners off and replace control knobs.

Choosing a location

The vertical clearance above the cooking surface to
any combustible materials must be at least 1000mm.
Cooking with roasting hood closed vents the hot
flue gases out the rear of the appliance. A minimum
clearance of 450mm to any combustible materials is
required. This clearance should also be maintained for
brittle materials which may be affected, such as glass.
Avoid windy conditions as this will affect cooking
performance and burner efficiency. If this situation
cannot be avoided some shielding may be necessary.
The barbecue grills and hotplates are slightly sloped
to enable grease & oil drainage into front receptacles.
When choosing a location ensure that the slope
towards the front is maintained. If not, oil & grease
may run into the back of the burner box from the
grill channels.
This appliance must be installed in accordance with
Australian Standards AS4557 and AS5601 and in
accordance with the local authority.

Installation warnings

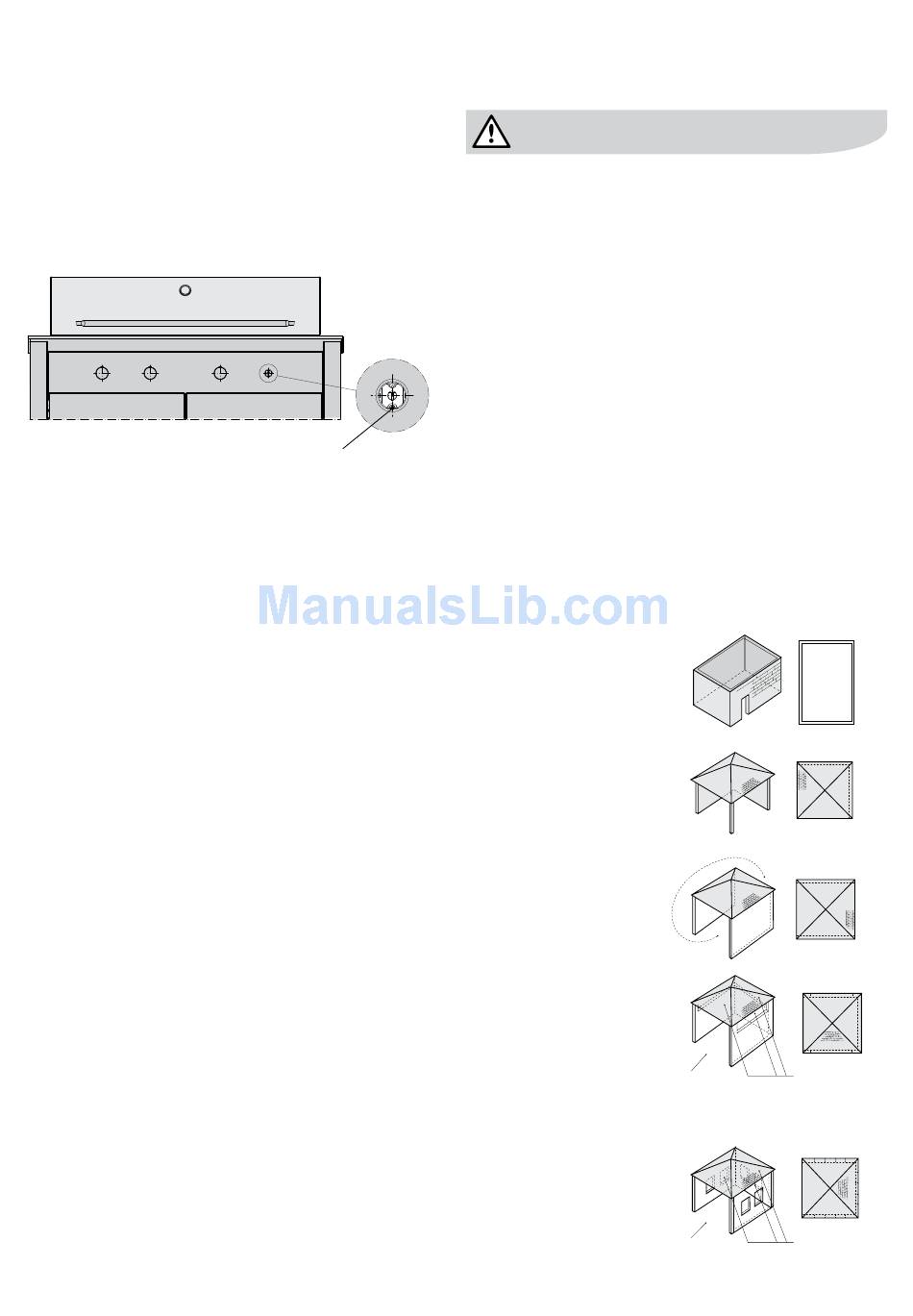

valve rotation limit screw
Outdoor area example 1
Outdoor area example 2
Outdoor area example 3
Outdoor area example 4
Outdoor area example 5
warning
This appliance shall only be used in an above ground,
open air situation with natural ventilation without
stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind or natural
convection. This barbecue has been designed for
outdoor use only. Refer to diagrams below.
Never install this barbecue inside any building, garage,
shed or breezeway or inside a boat, caravan or
recreational vehicle. This is to prevent the possibility of
fire or carbon monoxide poisoning or asphyxiation.
Any enclosure in which this appliance is installed shall
comply with one of the following:
– An enclosure with walls on all sides, but at least
one permanent opening at the ground level and no
overhead covering.
– Within a partial enclosure that includes an overhead
cover and no more than 2 walls.
– Within a partial enclosure that includes an overhead
cover and more than 2 walls, the following shall apply:
– at least 25% of the total wall area is completely
open and at least 30% of the remaining wall area
is open and unrestricted
In the case of balconies, at least 20% of the total of
the side, back and front wall areas shall be and remain
open and unrestricted.
both ends
open
open side at
least 25% of
total wall area
open side at
least 25% of
total wall area
30% or more
in total of the
remaining wall
area is open and
unrestricted
30% or more
in total of the
remaining wall
area is open and
unrestricted
