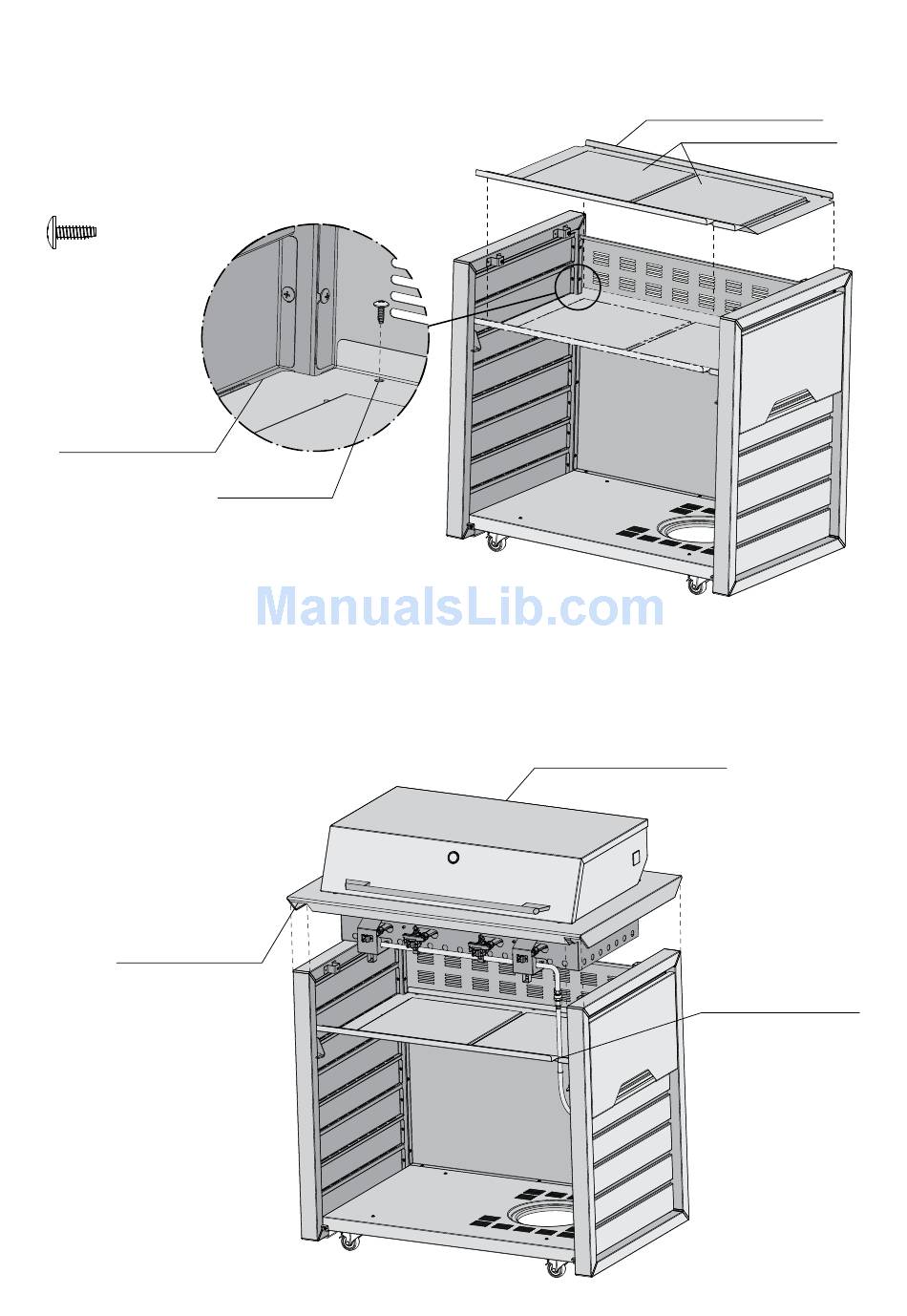

11. F it separation panel
Lower separation panel into position. Sides of
separation panel rest on side panel and shoulders.
Align holes at rear with holes in rear panel,
and fit 3 x type 1 screws
Qty 3
Type 1 screw (M4 x 8)
Note: EQBM60AS only
requires 2 screws.
Side of panel rests on
shoulder of side panel
12. F it burner box and hood assembly - requires 2 people
A. Carefully lift the assembly (1 person each side) above the
base and lower into position. Ensure the trim panel fits
neatly over the top frame and the gas hose fits through
the slot in the separation panel. Do not fit screws to
underside of separation panel at front until step 13.
Cut out fits over top of
frame each corner
Screws fitted to
holes at rear
electrolux en:tice barbecue assembling the barbecue 15
Burner box and hood assembly
Separation panel assembly
These panels facing up
Ensure gas hose
located in panel slot
