12 assembling the barbecue electrolux en:tice barbecue

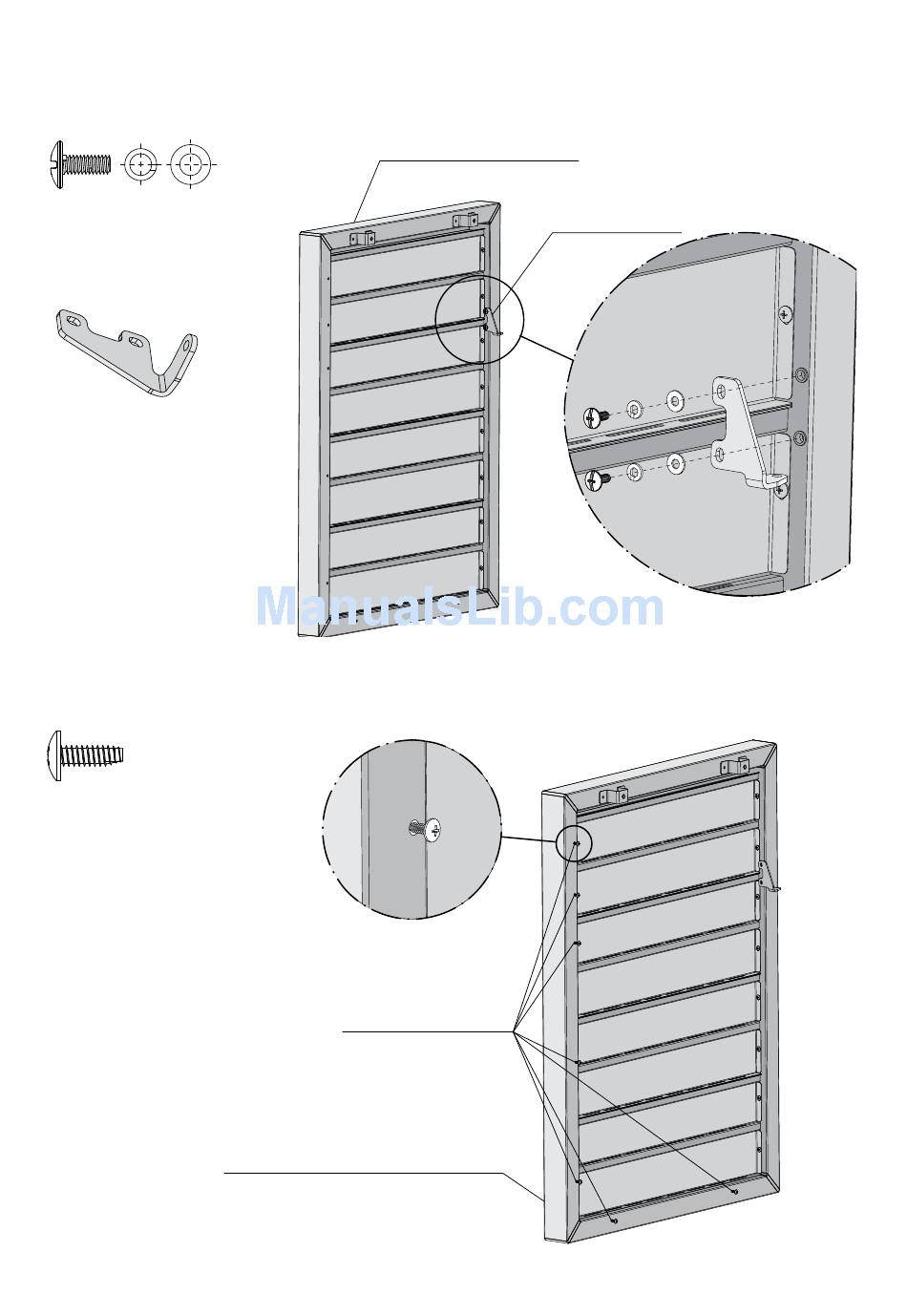

5. Fit right upper door hinge bracket
Qty 2
Type 3 screw (M5 x 12)
Spring washer
Flat washer
Qty 1
Right upper door hinge bracket
6. Partially install screws to right side panel assembly
DO NOT screw in fully
Qty 7
Type 1 screw (M4 x 8)
Screw locations
Right side panel assembly
Right side panel assembly
Right upper door
hinge bracket
