16 assembling the barbecue electrolux en:tice barbecue

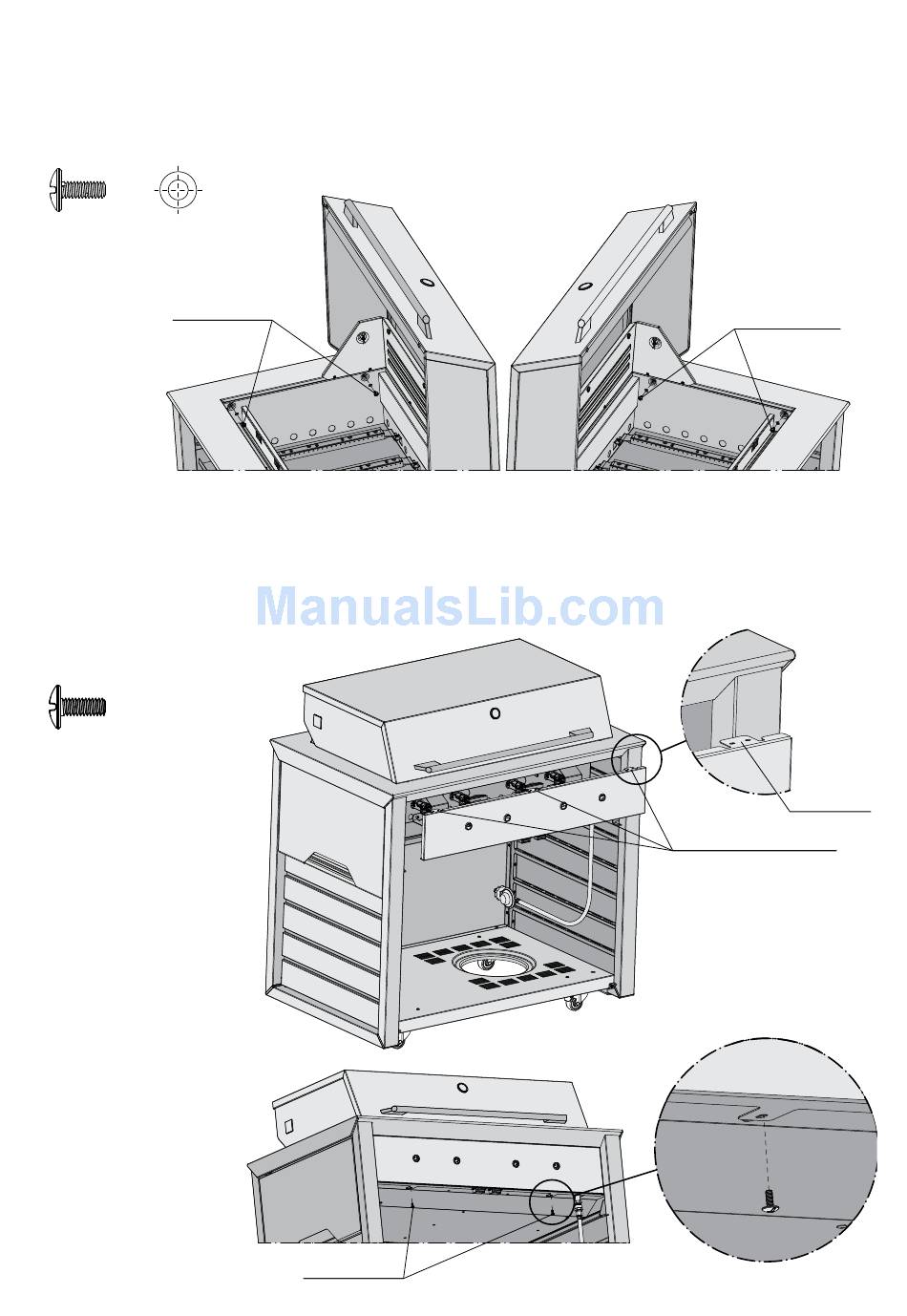

B. Once in position, open the hood and align the side
burner box formed holes with the side brackets.
Fit 2 screws with fibre washer each side.
Qty 4
Type 3 screw (M5 x 12)
Fibre washer
Left side screw
locations
13. F it control panel
Fit the control panel in by locating the 3 tabs
(EQBM60AS only has 2 tabs) at top into slots. Ensure
that valve shafts locate through holes. Check the lower
tabs of control panel are below the separation panel.
Align the lower tab holes with those in the separation
panel and fit screws in 2 places.
Qty 2
Type 3 screw (M5 x 12)
Screw locations
Right side screw
locations
location tab
Upper control panel tab to
be located into slots
