Attaching the Speaker to the Mounting Plate

Position the rear mounting slot of the speaker above the catch tab of the mounting plate,

then slide the speaker down into the mounting plate so that the speaker is secured in place

(see figure 7 below). When properly seated, the speaker connections are automatically

made.

Catch Tab

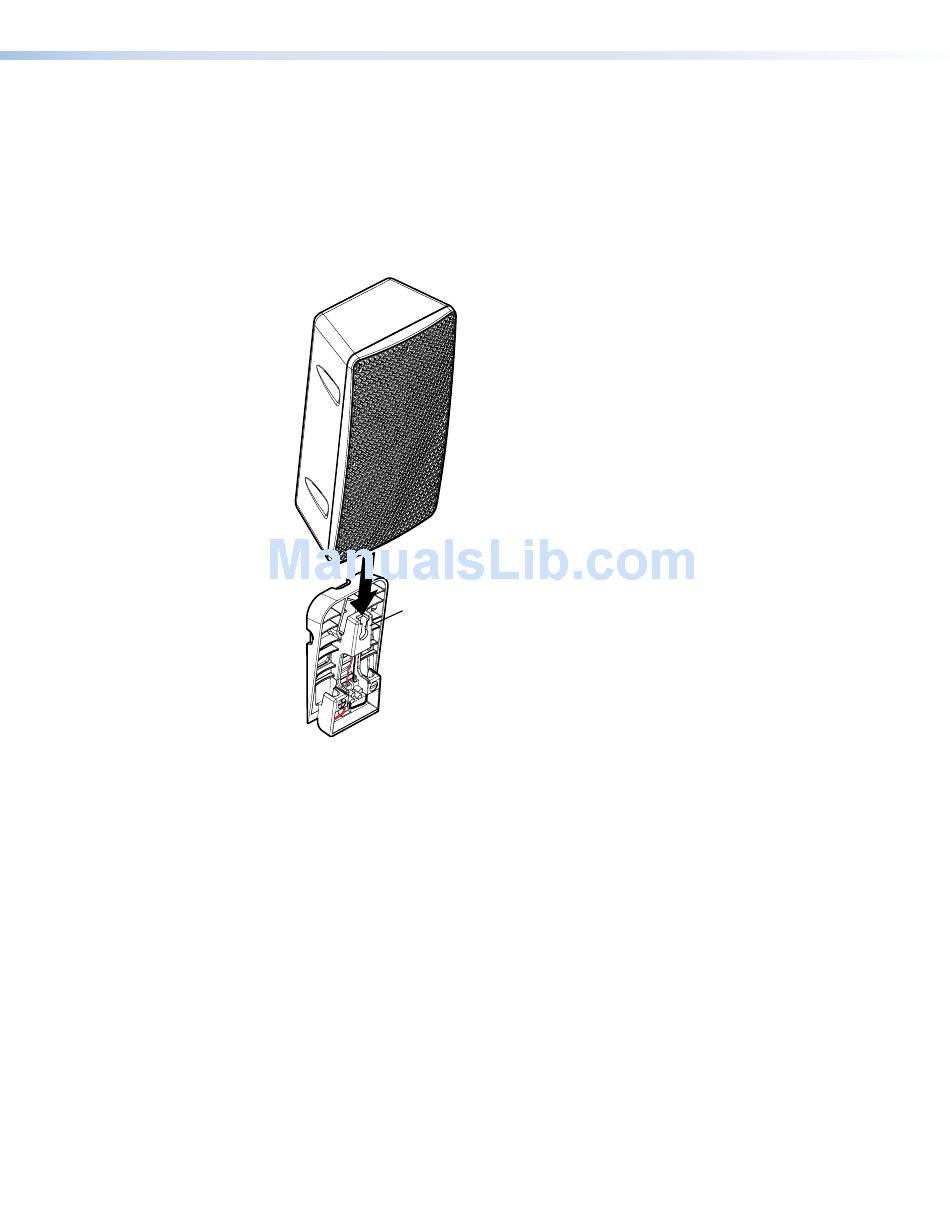

Figure 7.

Attaching the speaker

SM 3 User Guide • Installation
