- Page 1 User Guide Speakers SM 26 SpeedMount Surface Mount Speakers ® 68-2164-01 Rev. A 08 13...
-
Page 2: Safety Instructions
Safety Instructions Chinese Simplified Safety Instructions • English （简体中文） 警告： 产品上的这个标志意在警告用户该产品机壳内有暴露的危险 WARNING: This symbol, , when used on the product, is intended to 电压， 有触电危险。 alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock. 注... -
Page 3: Conventions Used In This Guide
conventions used in this guide notifications The following notifications are used in this guide: cautIon: A caution indicates a situation that may result in minor injury. Attention indicates a situation that may damage or destroy the product or attEntIon: associated equipment. notE: A note draws attention to important information. -
Page 4: Table Of Contents
Contents Introduction ........... 1 About this Guide ..........1 About the SM 26 Surface Mount Speaker ..1 Features ............. 1 Application Diagram ........... 2 Installation ............. 3 Installing the Speaker Mounting Plate ....3 Mounting to a Wall Stud ........5 Yoke Mounting the SM 26 ........ -
Page 5: Introduction

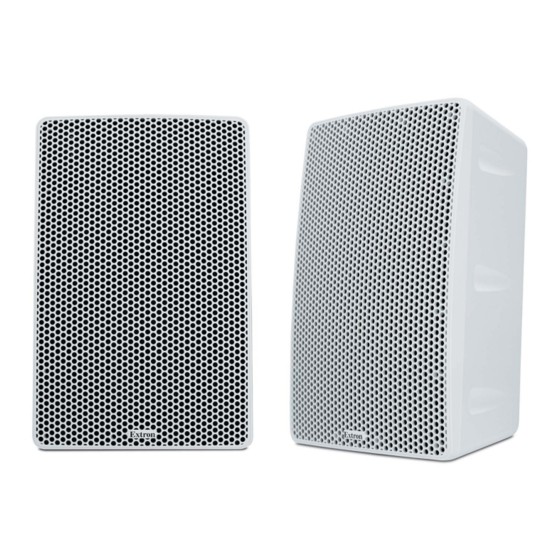

This guide describes the Extron SM 26 surface mount speaker and discusses how to install, configure, and operate it. In this guide, the terms “SM 26” and “speaker” refer to the SM 26 surface mount speaker. About the SM 26 Surface Mount Speaker The SM 26 speaker is a surface-mount speaker system that features a 6.5-inch woofer... -
Page 6: Application Diagram
• Security key — A special key allows the speaker to be locked or unlocked to the mounting plate. Application Diagram The following diagram shows an example of how the SM 26 surface mount speakers can be connected. Extron TouchLink... -
Page 7: Installation
• Removing the Speaker from the Mounting Plate Installing the Speaker Mounting Plate The SM 26 speaker comes with a flat mounting plate and an adapter for positioning the speaker 10° up, down, left, or right. • 0° mounting plate — The flat (0°) mounting plate allows the speaker to be mounted flat on a suitable surface. - Page 8 The mounting plate can be installed vertically or horizontally, as shown below. Catch Tab Horizontal Mounting Vertical Mounting Figure 3. Positioning the Mounting Plate NOTE: Observe all applicable building codes and local ordinances when installing the speaker. SM 26 Surface Mount Speaker • Installation...
-
Page 9: Mounting To A Wall Stud
If not using the adapter, position the mounting plate against the wall. The #26 arrow molded into the mounting plate indicates the vertical midpoint of the SM 26 speaker when it is mounted on a wall stud. While positioning the mounting plate on the wall, mark the location of two pilot holes using the holes indicated below. - Page 10 The SM 26 can be mounted with or without the 10° mounting adapter. In either case the wiring of the quick connect contacts remains the same, but the wire routing will vary. Routing the wires without the 10° mounting adapter Route the speaker cable through the rear of the 0°...
- Page 11 NOTE: If surface mounting, route wires through alternate access points. – – 33-0000-01 Rev. Ax1 LOOP LOOP 10° Mounting Adapter 0° Mounting Plate Alternate Access Point Alternate Access Points Figure 9. Routing Wires Through Alternate Access Points SM 26 Surface Mount Speaker • Installation...
- Page 12 0.27” (7 mm) Good 0.47” (12 mm) Figure 10. Sceew Head Clearance Mounting Screws Figure 11. Attaching the Mounting Plate to the Wall SM 26 Surface Mount Speaker • Installation...
-
Page 13: Yoke Mounting The Sm 26
Yoke Mounting the SM 26 The SM 26 can be mounted using the optional yoke mount kit. Refer to the Yoke Mount Kit Setup Guide for installation details. Attaching a Secondary Support Cable If a secondary support cable is being attached, attach the cable to the eye bolt, as shown below. -
Page 14: Attaching The Speaker To The Mounting Plate
Attaching the Speaker to the Mounting Plate ATTENTION: By default, the SM 26 speaker is shipped unlocked. When mounting the speaker to the mounting plate, be sure that the speaker is unlocked. Failure to place the speaker in the unlocked position will result in damage to the speaker lock mechanism should an attempt be made to mount a locked speaker (see “Using... -
Page 15: Setting The Tap Selector Switch (Sm 26T Model Only)
Tap Indicator 8Ω for 70 volt 8Ω Tap Indicator for 100 volt Figure 14. Setting the Tap Selector Switch SM 26 Surface Mount Speaker • Installation... -
Page 16: Using The Security Key To Lock And Unlock The Speaker
Unlocked Unlocked Figure 15. Unlocking the Speaker Locked Unlocked Twist to Lock/Unlock Figure 16. Using the Security Key to Lock and Unlock the Speaker SM 26 Surface Mount Speaker • Installation... -
Page 17: Removing The Speaker From The Mounting Plate
Apply pressure to the grille with your finger over the “dimpled” keyhole to unlatch the speaker from the mounting plate while lifting up on the speaker (see figure below). Press to Release Figure 17. Removing the Speaker from the Mounting Plate SM 26 Surface Mount Speaker • Installation... - Page 18 Extron Warranty Extron Electronics warrants this product against defects in materials and workmanship for a period of five years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to: USA, Canada, South America,...
