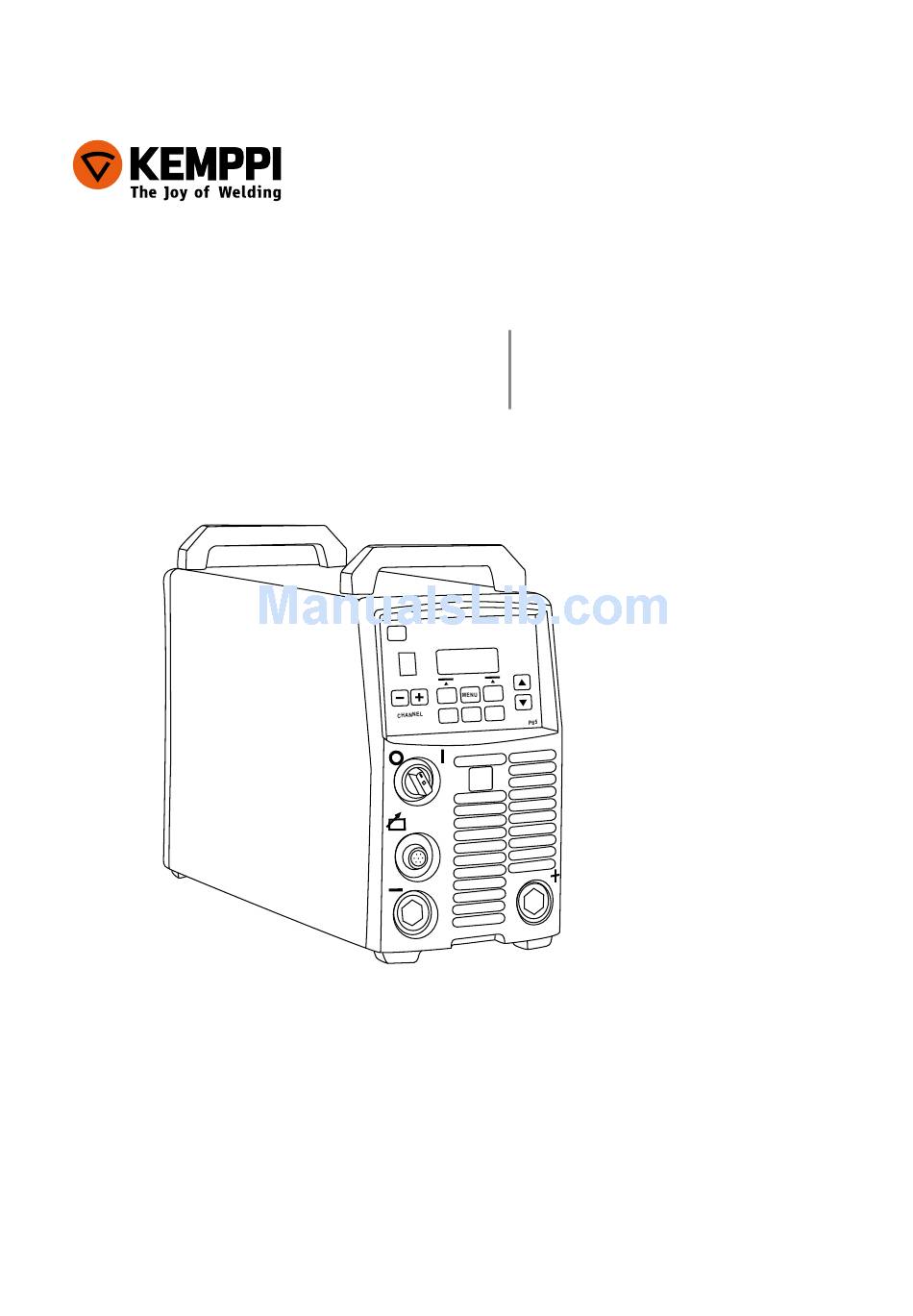

  • Page 1 FastMig Pulse 350, 450 Operating manual • English Käyttöohje • Suomi Bruksanvisning • Svenska Bruksanvisning • Norsk Brugsanvisning • Dansk Gebrauchsanweisung • Deutsch Gebruiksaanwijzing • Nederlands Manuel d’utilisation • Français Manual de instrucciones • Español Instrukcja obsługi • Polski Инструкции по эксплуатации • По-русски...
  • Page 3 OPerating Manual english...

  • Page 4: Table Of Contents

    COntents intrOduCtiOn ......................General .

  • Page 5: General

    This operating manual contains important information on the use, maintenance and safety of your Kemppi product. The technical specifications of the equipment can be found at the end of the manual. Please read the manual carefully before using the equipment for the first time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual.

  • Page 6: Installation

    High rates of harmonic current may cause losses and disturbance to some equipment. FastMig™ Pulse 350 and 450: This equipment complies with IEC 61000-3-12 provided that the short-circuit power S greater than or equal to 5.5 MVA at the interface point between the user’s supply and the public suply network.

  • Page 7: Machine Introduction

    MaChine intrOduCtiOn CHANNEL 6,3A Setup panel 'Arc Wizard P65' Main switch I/O – On/Off Signal lamp I/O – On/Off Warning lamp for thermal protection Welding cable connection - negative pole Welding cable connection + positive pole Control cable connection Fuse – 6,3 A delayed Control cable connection 10.

  • Page 8: Connecting Cables

    COnneCting CaBles Always check before use that the interconnecting cable, shielding gas hose, earth return NOTE! lead/clamp, and mains cable is in a serviceable condition. Ensure that connectors are correctly fastened. Lose connectors can impair welding performance and damage connectors. 2.5.1 water cooled system: FastMig Pulse + MXF + FastCool 10 MXF wire feed unit FastMig Pulse power source...

  • Page 9: Gas Cooled System: Fastmig Pulse + Mxf

    2.5.3 Connecting to mains power FastMig power sources are delivered as standard with 5 meters of mains power cable. No mains plug is fitted at the Kemppi factory. If local country based regulations state an alternative power cable is required, the mains NOTE! cable must be replaced in conformity with the regulations.

  • Page 10: Welding And Earth Return Cables

    For correct connection and configuration of cable sets, please refer to schematic drawings: 2.5.1 and 2.5.2 FastMig 350/450 power sources are designed to be used ONLY with MXF wire feed units. NOTE! OPeratiOn COntrOl Main switCh i/O When you turn the on/off switch into I -position, the pilot warning lamp is illuminated and the machine is ready for use.

  • Page 11: Operation Of Cooling Fan

    OPeratiOn OF COOling Fan FastMig Pulse power sources incorporate two simultaneously operating fans. • The fan is started momentarily when the main switch is placed into position - I. • The fan will start during welding as the machine reaches operational temperature, and it will run for 1 to 10 minutes after the welding has stopped, depending on the welding cycle completed.

  • Page 12: Welding Parameters And Functions

    Welding channel (job) selection. There are 10 memory channels available per USER channel. There are 10 USER channels . If the channel is empty you can create a new (job) channel by pressing the key below the LCD screen text stating NEW. MENU button for entering the main menu list.
  • Page 13 1-Mig WFSpeed 0.7 – 25 m/min * 0.05 m/min steps when WFSpeed < 5 m/min and 0.1 m/min steps when WFSpeed > 5 m/min WFS-Max Set the limit for maximum WFSpeed WFS-Min Set the limit for minimum WFSpeed FineTuning -9 ... +9 Factory setting is 0 Adjusts the arc voltage of the curve within certain ( = curve point)

  • Page 14: Welding Functions

    wiserOOt / wisethin WFSpeed 0.7 – 14 m/min * 0.05 m/min steps when WFSpeed < 5 m/min and 0.1 m/min steps when WFSpeed > 5 m/min WFS-Max Set the limit for maximum WFSpeed WFS-Min Set the limit for minimum WFSpeed BaseCurrent -50 ...
  • Page 15 CraterTime 0.0 – 10.0 s 0.1 s steps. Factory setting 1.0 s CrateFill Slope Time Crater 4T Timer On or OFF Factory setting is OFF ON: if 4T is selected crater filling will last at least time that has been ad-justed by CraterTime or as long as trigger is pressed.
  • Page 16 adVanCed FunCtiOns WisePenet ON or OFF Penetration control selection Penet%(123A) -30 ... +30 % Factory setting: 0 % Wise penetration percent setting. Set penetration Current. WiseFusion ON or OFF WiseFusion selection WiseFusion% 10 – 60 % or Factory setting is CURVE When WISE FUSION is ON it controls the CURVE amount of short circuits in the arc.
  • Page 17 WeldData Delay Adjustment Range: Factory Setting: 20s. Defines how long the Weld Data is 1s – 60s, displayed after Welding Ends. 1s steps. Weld Data display is also turned off when pulse encoder is turned or any button is pressed. Display Delay Adjustment Range: Factory Setting: 10...
  • Page 18 adMinistratOr Menu (In Main menu 2/7, User Identification) Change PIN Code Administrator pin code Factory PIN code: 0000 change. Ask PIN PIN code inquiry selection: Factory Setting: OFF OFF: No PIN code inquiry. OFF / StartUp / Menu StartUp: Setup panel (P65) always asks for the PIN code when the machine is turned on.

  • Page 19: Welding Software Delivery Profile

    Wise & Match software menu. Order and load these software products to your machine with Kemppi DataGun field program device. Wise and Match products provide optional welding application solutions. Wise and Match...

  • Page 20: Getting Started

    Ss-316/308 Ar+2%CO2 Ss-316/308 Ar+2%CO2 Ss-316/308 Ar+He+CO2 Ss-316/308 Ar+He+CO2 Ss-316/308 Ar+He+CO2 getting started step by step for the first time user First select your language The default menu language is English. In the following steps you will be able to select NOTE! alternative languages Connect mains power and switch on power source.
  • Page 21 Choose and SELECT shielding Gas – Press SELECT button Choose and SELECT curve – Press SELECT button. (Note: The curve(s) presented in this view are based on your previous selections from items 4 through to 8.) 10. Choose and SAVE memory channel number. Memory channel selections are made using either the White +/- buttons OR Orange UP-DOWN buttons –...

  • Page 22: Basic Troubleshooting

    BasiC trOuBleshOOting The problems listed and the possible causes are not definitive, but serve to suggest some NOTE! standard and typical situations that may present during normal environmental use when using the MIG/MAG process with FastMig Pulse. Problem Check the following Machine won’t work? Check mains plug is connected Check mains power distribution is switched on...

  • Page 23: Operation Disturbances

    Should you experience a malfunction from your machine, please consult the basic troubleshooting text above first, and complete some basic checks. If the machine malfunction cannot be corrected with these measures, contact your KEMPPI maintenance service workshop. OPeratiOn OF the OVerlOad PrOteCtiOn Yellow thermal protection lamp is lit when the thermostat is operating due to loading beyond the stated duty cycle.

  • Page 24: Period Maintenance

    • Operation and performance values of the machine are checked, and when necessary adjusted by means of software and test equipment. software loading Kemppi Service Workshops can also test and load firm ware and welding software. disPOsal OF the MaChine Do not dispose of electrical equipment with normal waste!

  • Page 25: Ordering Numbers

    Ordering nuMBers FastMig Pulse 350 power source 6150400 FastMig Pulse 450 power source 6150500 FastMig Pulse Setup panel P65 Included with power source 6155300 FastMig MXF 63 wire feeder 200 mm Work pack profile 6152300EL FastMig MXF 65 wire feeder 300 mm...
  • Page 26 SuperSnake GT02S sub feeder 10 m 6153100 SuperSnake GT02S sub feeder 15 m 6153150 SuperSnake GT02S sub feeder 20 m 6153200 SuperSnake GT02S sub feeder 25 m 6153250 SuperSnake GT02S W sub feeder 10 m 6154100 SuperSnake GT02S W sub feeder 15 m 6154150 SuperSnake GT02S W sub feeder...

  • Page 27: Technical Data

    350 A 100 % ED 330 A 350 A Welding current and voltage range 10 A – 350 A 10 A – 450 A 10 V – 50 V 10 V – 50 V Max. welding voltage MMA 49 V...
