Kempoweld
3200, 3200W
EN
Operating manual • English
FI
Käyttöohje • Suomi
SV
Bruksanvisning • Svenska
NO
Bruksanvisning • Norsk
DA
Brugsanvisning • Dansk
DE
Gebrauchsanweisung • Deutsch
NL
Gebruiksaanwijzing • Nederlands
FR
Manuel d'utilisation • Français
PL
Instrukcja obsługi • Polski
RU
Инструкции по эксплуатации • По-русски
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kemppi 3200
Summary of Contents for Kemppi 3200

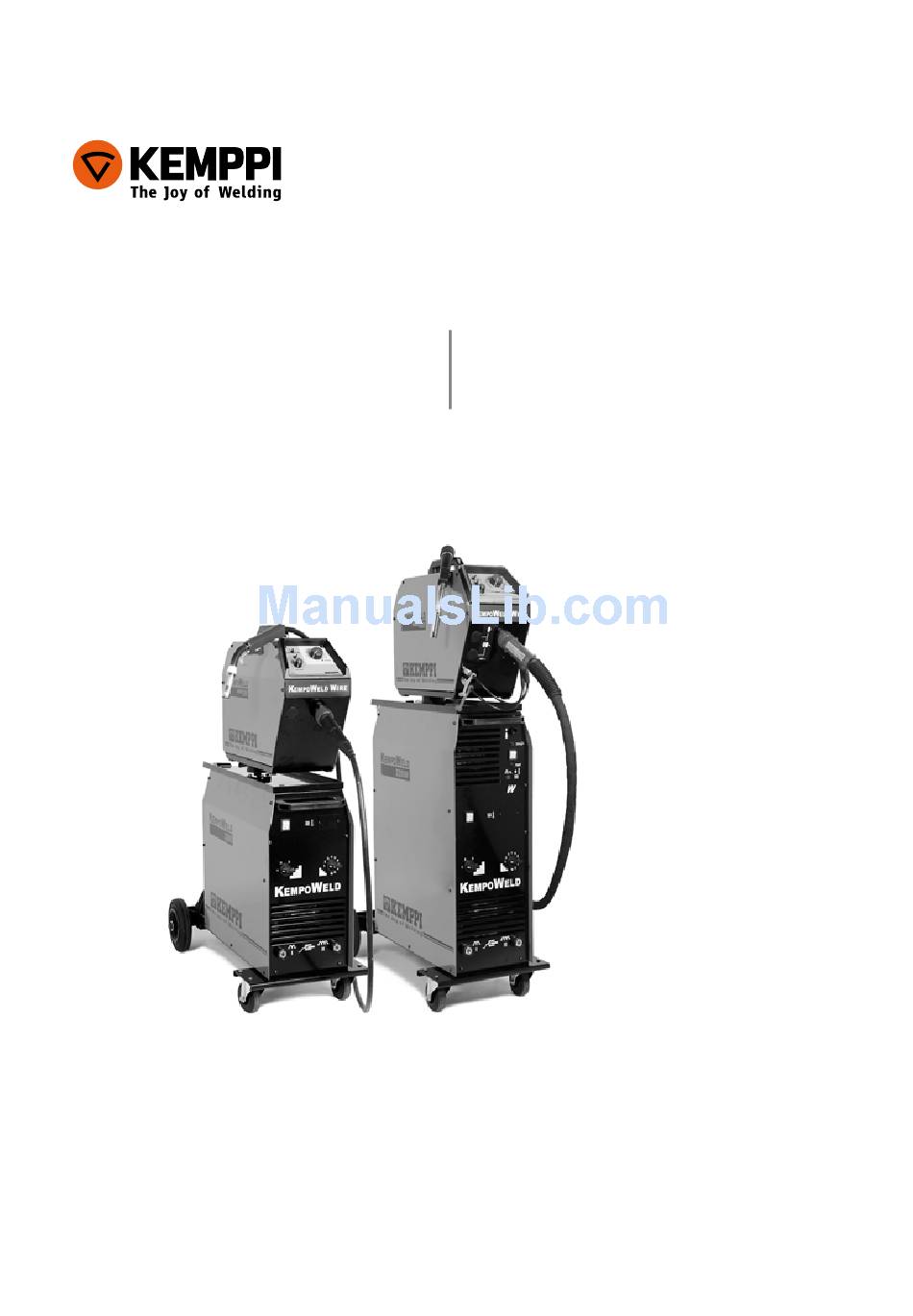

- Page 1 Kempoweld 3200, 3200W Operating manual • English Käyttöohje • Suomi Bruksanvisning • Svenska Bruksanvisning • Norsk Brugsanvisning • Dansk Gebrauchsanweisung • Deutsch Gebruiksaanwijzing • Nederlands Manuel d’utilisation • Français Instrukcja obsługi • Polski Инструкции по эксплуатации • По-русски...
- Page 3 Operating manual english...
-
Page 4: Table Of Contents
1.3.3 Rear plate of Kempoweld 3200, 3200W ................ . -
Page 5: Preface
This operating manual contains important information on the use, maintenance and safety of your Kemppi product. The technical specifications of the equipment can be found at the end of the manual. Please read the manual carefully before using the equipment for the first time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. -
Page 6: Kempoweld Panels
KempOWeld panels 1.3.1 Operation control and connectors S1, H1 Main switch (pilot lamp H1) Voltage selecting switch (coarse grading) Voltage selecting switch (fine grading) Pilot lamp for overheating (power source) Return current connector (coarser arc) Return current connector (softer arc) Accessory drawer MSD-1 V/A metering unit (accessory) 1.3.2 parts of cooling unit Kempoweld 3200W... -
Page 7: Rear Plate Of Kempoweld 3200, 3200W
Water circulation return connector Water circulation output connector Filler hole for water tank 1.3.3 rear plate of Kempoweld 3200, 3200W Inlet of mains cable Fuse of auxiliary transformer (8 A delayed) Welding current connector for wire feeder unit (+ pole) -
Page 8: Accessories
1.4.2 accessories KmW sync Wire feed adjustment selection (panel or push-pull gun) Control connector for push-pull gun 1.4.3 Cooling unit connections Return water connector for gun Feed water connector for gun Inlet of water hoses 1.4.4 rear panel Shielding gas connector Control cable connector (Kempoweld or interconnection cable) Welding current connection (Kempoweld or interconnection cable) 1.4.5 inside wire feeder unit... -
Page 9: Installation
installatiOn pOsitiOning OF the maChine Place the machine on a firm, dry and level surface. Where possible, do not allow dust or other impurities to enter the machines cooling air flow. Preferably site the machine above floor level; for example on a suitable carriage unit. Notes for positioning the machine • The surface inclination should not exceed 15 degrees. -
Page 10: Welding And Return Current Cables
. If you are using 5-conductor cable, you must cut the zero conductor to the level of the cable´s protective shield. sizes of mains cables and fuse ratings for the machine at 100% ed duty cycle are specified in the table below: Kempoweld 3200, 3200W Connected voltage 230 V 400 V Voltage range 220 –... -
Page 11: Operation And Use Of Controls
You will find the best position by testing the different positions. 2.5.6 Operation of cooling fan The cooling fan on the rear plate of the Kempoweld 3200 equipment is started and stopped according to use. The cooling fan is controlled by the gun trigger and control circuits. The cooling fan is started after ca. -
Page 12: Accessory Drawer
2.5.7 accessory drawer In the accessory drawer in the cover part of the unit are by delivery the plastic guide tubes needed for welding of aluminium and stainless steels. In the drawer are also the screw and the insulation bushings needed for locking of rotation of the wire feeder Kempoweld WIRE 400. 2.5.8 adjustment for wire feed The wire feed is adjusted from the potentiometer on the control panel of the wire feeder unit Kempoweld WIRE 400. -
Page 13: Operation Switches
If the water does not start circulating, see paragraph Operation disturbances: “The water does NOTE! not circulate ... etc. Do not let any waste and dirt into the water circulation! Check filling volume before starting to weld! Use the cooling liquid according to recommendations, or the one you know as good beforehand. Watch over liquid material´s quality and possible sediments in hoses of the gun. -
Page 14: Operation Disturbances
By the operation or functional disturbances take the measures according to the following list. If the disturbance cannot be eliminated, check the equipment according to the paragraphs Installation and Maintenance, and take contact with Authorized Kemppi repair workshop. the pump does not get started by test switch: • check the fuse on the front plate of the cooling unit... -
Page 15: Maintenance
The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health. -
Page 16: Ordering Numbers
Ordering numbers Units Kempoweld 3200 230 V / 400 V 621532002 Kempoweld 3200W 230 V / 400 V 621632002 Wire feeder unit Kempoweld WIRE 400 621740001 Accessories KMW sync 2 6219150 MSD-1 6185666 P500 transport unit (feeder) 6185265 KV400 swing arm 6185247 KV400 50-1.5-GH... - Page 17 Air-cooled interconnection cables Mounting cables for short distance: KW 50-1.3-GH 6260350 Interconnection cables for long distance: Multimig 50-5-GH 626010401 Multimig 50-10-GH 626010601 Liquid-cooled interconnection cables Mounting cables for short distance: KW 50-1.5-WH 6260352 Interconnection cables for long distance: KW 50-5-WH 626035401 KW 50-10-WH 626035601...
-
Page 18: Technical Data
Kempoweld 3200 3200W Connection voltage 3 ~ 400 V 380 V -10 % ... 415 V +6 % 380 V -10 % ... 415 V +6 % 3 ~ 230 V 220 V -10 % ... 240 V +6 % 220 V -10 % ... - Page 20 78681 EPONE CEDEX myynti.fi@kemppi.com info.ru@kemppi.com FRANCE Tel +33 1 30 90 04 40 KEMPPI SVERIGE AB KEMPPI, TRADING (BEIJING) COMPANY, Telefax +33 1 30 90 04 45 LIMITED Box 717 sales.fr@kemppi.com Room 420, 3 Zone, Building B, S-194 27 UPPLANDS VÄSBY No.12 Hongda North Street,...
