Installing Hood; Installing Gas Line - Procom PC32VFC Owner's Operation And Installation Manual

CAUTION: Do not operate
fireplace without hood in place.
1. Align 3 holes in upper side of hood with
holes in heat insulation board (see Fig-
ure 6).
2. Insert screwdriver through hole in top fire-
box panel to secure hood to heat insulation
board with 3 screws (see Figure 6).
This firebox may be installed using a cabinet mantel accessory against a wall in your home.
The firebox and cabinet mantel can be installed directly on the floor. Follow instructions with
mantel for installation.
WARNING: A qualified ser-
vice person must connect heater
to gas supply. Follow all local
codes.
IMPORTANT: See Connecting to Gas Supply
in your log set owner's manual for details on
gas hookup.
You may run the gas line from either side of
the firebox (see Figure 7). Decide which side
you want to run the gas line from.
Note: This is one option for installing shutoff
valve. Check local codes for equipment shut-
off valve location requirements.
10
INSTALLATION

INSTALLING HOOD

OPTIONAL ACCESSORY MANTEL

INSTALLING GAS LINE

www.usaprocom.com
Top of Firebox
Hood
Top
Firebox
Panel

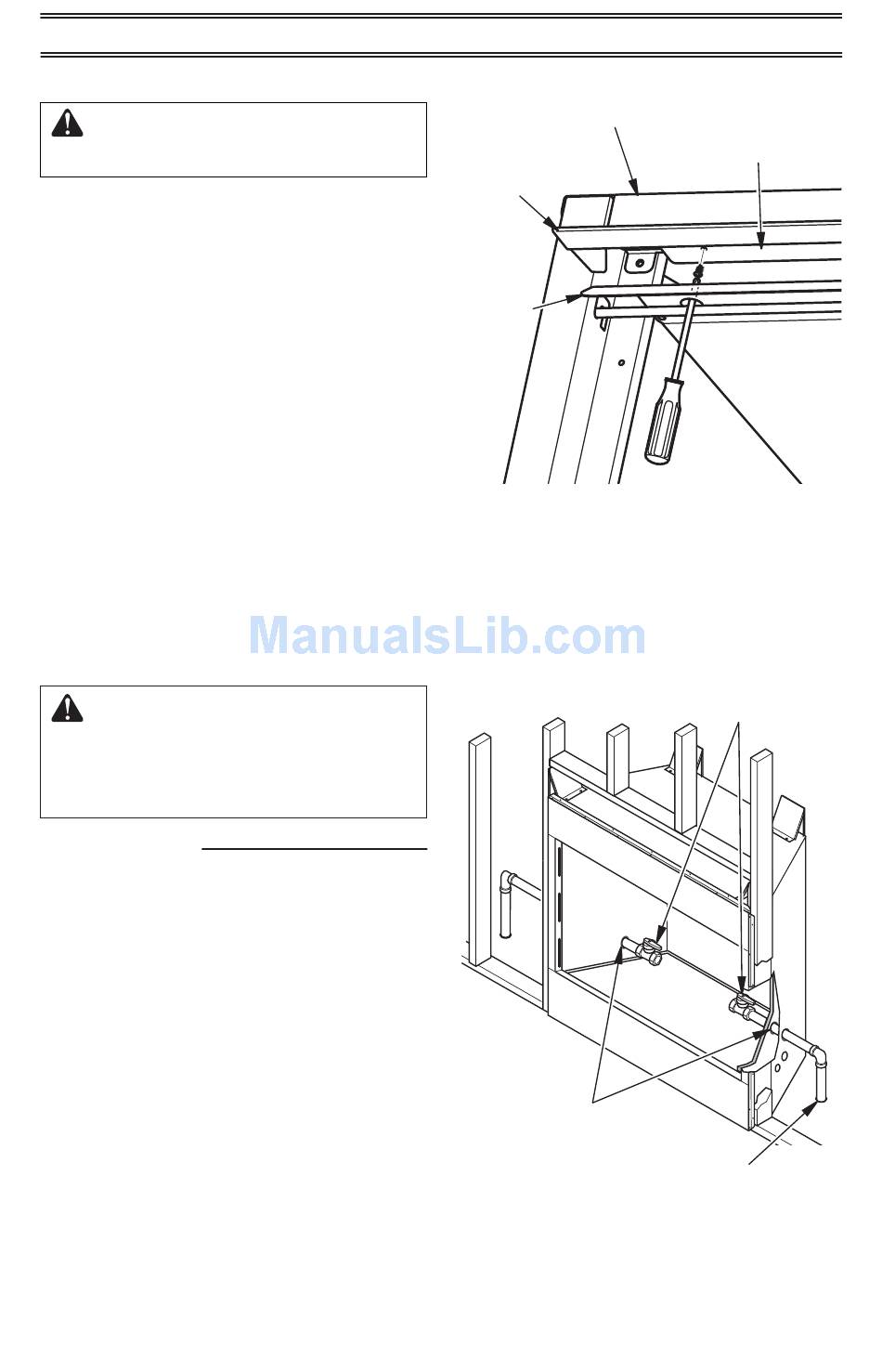

Figure 6 - Hood Installation
Knock Out Locations
(Knock Out One Hole)
Figure 7 - Installing Gas Line and
Equipment Shutoff Valve (Model May
Vary From Illustration)
Heat
Insulation
Board
Equipment Shutoff
Valves (Install One)
Gas Line Hole
