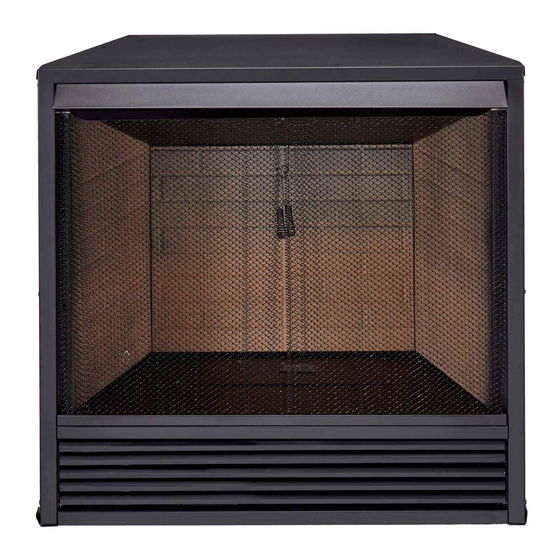

Procom PC32VFC User Manual

Vent-free gas firebox
Hide thumbs Also See for PC32VFC:
Table of Contents

Advertisement

Quick Links

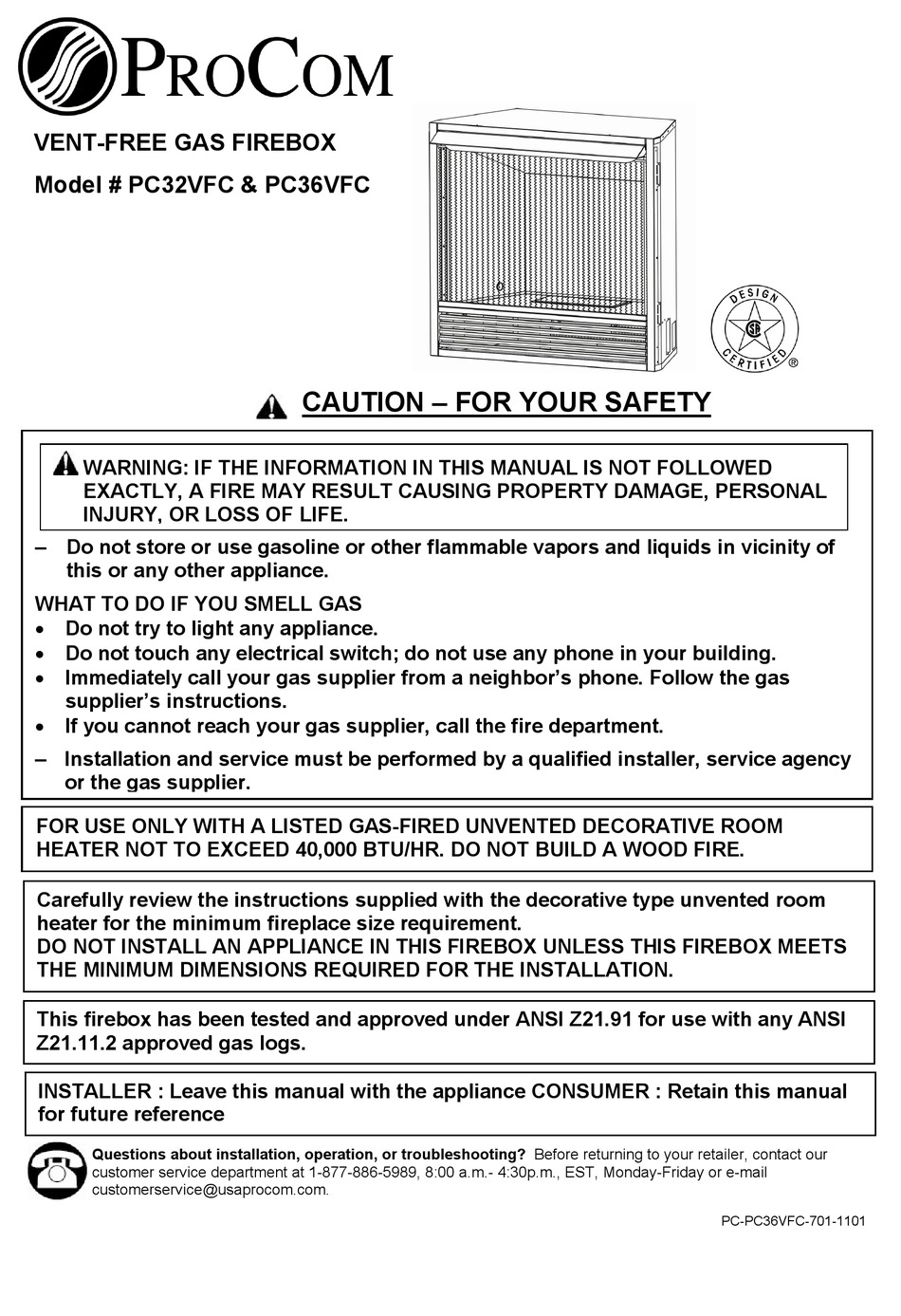

VENT-FREE GAS FIREBOX
Model # PC32VFC & PC36VFC
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
 Do not try to light any appliance.
 Do not touch any electrical switch; do not use any phone in your building.
 Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
 If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED DECORATIVE ROOM
HEATER NOT TO EXCEED 40,000 BTU/HR. DO NOT BUILD A WOOD FIRE.
Carefully review the instructions supplied with the decorative type unvented room
heater for the minimum fireplace size requirement.
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX UNLESS THIS FIREBOX MEETS
THE MINIMUM DIMENSIONS REQUIRED FOR THE INSTALLATION.
This firebox has been tested and approved under ANSI Z21.91 for use with any ANSI
Z21.11.2 approved gas logs.
INSTALLER : Leave this manual with the appliance CONSUMER : Retain this manual
for future reference
Questions about installation, operation, or troubleshooting? Before returning to your retailer, contact our
customer service department at 1-877-886-5989, 8:00 a.m.- 4:30p.m., EST, Monday-Friday or e-mail
customerservice@usaprocom.com.
CAUTION – FOR YOUR SAFETY
PC-PC36VFC-701-1101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC32VFC and is the answer not in the manual?

Questions and answers

Related Manuals for Procom PC32VFC

Summary of Contents for Procom PC32VFC

  • Page 1 VENT-FREE GAS FIREBOX Model # PC32VFC & PC36VFC CAUTION – FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. – Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    IMPORTANT: Read instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. PRODUCT SPECIFICATIONS 32’ and 36” Models Figure 1 Model PC32VFC 2.381" 18.515" 19° 24.060" 7.567"...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION INSTALLER: DO NOT DISCARD THIS MANUAL – LEAVE FOR HOMEOWNER’S FUTURE REFERENCE. IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

  • Page 4: Product Feature

    Do not place Propane/LP supply tank(s) inside any structure. Propane/LP supply tank(s) must be placed outdoors. Do not use this firebox as a wood-burning fireplace. Use only decorative unvented room heaters (log set). Keep all air openings in front and bottom of fireplace clear and free of debris. This will ensure enough air for proper combustion.

  • Page 5: Locating Firebox

    This firebox is designed for vent-free operation. State and local codes in some areas prohibit the use of vent-free fireplace. State of Massachusetts: The installation must be made by a licensed plumber or gas fitter in the Commonwealth of Massachusetts. Sellers of unvented propane or natural gas-fired supplemental room fireplaces shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

  • Page 6: Installation

    INSTALLATION NOTICE: This fireplace is intended for use as supplemental heat. Use this fireplace along with your primary heating system. Do not install this fireplace as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using fireplace.
  • Page 7 NOTE: When firebox is installed directly on carpeting, tile or other combustible material, other than wood flooring, the firebox must be installed on a metal or wood panel extending the full width and depth of the fireplace. BUILT-IN FIREPLACE INSTALLATION Figure 2 –...
  • Page 8 (Please see Figure 6B ) Figure 6B For PC36VFC Figure 6A For PC32VFC INSTALLING FIREBOX USING OPTIONAL ACCESSORY MANTELS WARNING: A qualified service person must install firebox. Follow all local codes.

  • Page 9: Installing Gas Line

    INSTALLING GAS LINE NOTI CE A qualified service person must connect heater to gas supply. Follow all local codes. IMPORTANT: See Connecting to Gas Supply in your log set owner’s manual for details on gas hookup. You may run the gas line from either side of the firebox (see Figure 7). Decide which side you want to run the gas line from.
  • Page 10 REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. If they can’t supply original replacement parts, call Customer Service toll free at (1-877-886-5989) for referral information. When calling Customer Service or your dealer, have ready: ...

  • Page 11: Replacement Parts

    This list contains replaceable parts used in your firebox. When ordering parts, follow the instructions listed under Replacement Parts on 10 of this manual. Part.. Description Part # PC32VFC-132 (PC32VFC) Screen Rod PC36VFC-132 (PC36VFC) PC32VFC-131 (PC32VFC) Draw Screen PC36VFC-131 (PC36VFC)

  • Page 12: Accessory

    OPTIONAL ACCESSORY Part.. Description Part # PC32VFC PC36VFC Top Trim FB32D104 Left/Right Trim FB32D121 Blower Assembly FIB100 Trim Kit TK32-100B BLOWER (OPTIONAL ACCESSORY) Refer to model FIB100 manual.

  • Page 13: Warranty Information

    WARRANTY INFORMATION Keep This Warranty IMPORTANT: We urge you to fill your warranty registration card within TEN (10) days of date of installation, complete with the entire serial number which can be found on the rating plate. Retain this portion of the card for your record. Always specify model and serial numbers when communicating with customer service.
