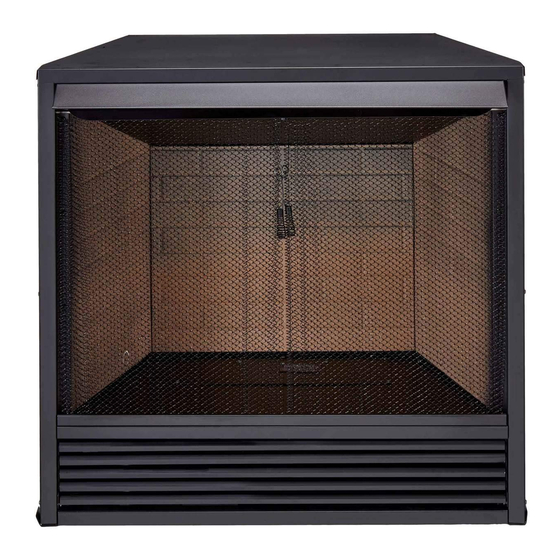

Procom PC32VFC Manual

Vent-free gas firvent-free gas fireplace eplace
Hide thumbs Also See for PC32VFC:

Advertisement

Quick Links

Download this manual
VENT-FREE GAS FIREPLACE
Model # PC32VFC & PC36VFC
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL
INJURY, OR LOSS OF LIFE.
– Do not store or use gasoline or other flammable vapors and liquids in vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
· Do not try to light any appliance.
· Do not touch any electrical switch; do not use any phone in your building.
· Immediately call your gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
· If you cannot reach your gas supplier, call the fire department.
– Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
FOR USE ONLY WITH A LISTED GAS-FIRED UNVENTED DECORATIVE ROOM
HEATER NOT TO EXCEED 40,000 BTU/HR. DO NOT BUILD A WOOD FIRE.
Carefully review the instructions supplied with the decorative type unvented room
heater for the minimum fireplace size requirement.
DO NOT INSTALL AN APPLIANCE IN THIS FIREBOX UNLESS THIS FIREBOX MEETS
THE MINIMUM DIMENSIONS REQUIRED FOR THE INSTALLATION.
This firebox has been tested and approved under ANSI Z21.91 for use with any ANSI
Z21.11.2 approved gas logs.
Questions about installation, operation, or troubleshooting? Before returning to your retailer, contact our
customer service department at 1-877-886-5989, 8:00 a.m.- 4:30p.m., EST, Monday-Friday or e-mail
customerservice@usaprocom.com.
CAUTION – FOR YOUR SAFETY
PC32VFC-651 and PC36VFC-701

Advertisement

loading

Related Manuals for Procom PC32VFC

Summary of Contents for Procom PC32VFC

  • Page 1 VENT-FREE GAS FIREPLACE Model # PC32VFC & PC36VFC CAUTION – FOR YOUR SAFETY WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF LIFE. – Do not store or use gasoline or other flammable vapors and liquids in vicinity of this or any other appliance.

  • Page 2: Table Of Contents

    IMPORTANT: Read instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. PRODUCT SPECIFICATIONS 32’ and 36” Models Figure 1 Model PC32VFC 2.381" 18.515" 19° 24.060" 7.567"...

  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION INSTALLER: DO NOT DISCARD THIS MANUAL – LEAVE FOR HOMEOWNER’S FUTURE REFERENCE. IMPORTANT: Read this owner’s manual carefully and completely before trying to assemble, operate, or service this fireplace. Improper use of this fireplace can cause serious injury or death from burns, fire, explosion, electrical shock, and carbon monoxide poisoning.

  • Page 4: Product Feature

    Do not place Propane/LP supply tank(s) inside any structure. Propane/LP supply tank(s) must be placed outdoors. Do not use this firebox as a wood-burning fireplace. Use only decorative unvented room heaters (log set). Keep all air openings in front and bottom of fireplace clear and free of debris. This will ensure enough air for proper combustion.

  • Page 5: Locating Firebox

    This fireplace is designed for vent-free operation. State and local codes in some areas prohibit the use of vent-free fireplaces. State of Massachusetts: The installation must be made by a licensed plumber or gas fitter in the Commonwealth of Massachusetts. Sellers of unvented propane or natural gas-fired supplemental room fireplaces shall provide to each purchaser a copy of 527 CMR 30 upon sale of the unit.

  • Page 6: Air For Combustion And Ventilation

    AIR FOR COMBUSTION AND VENTILATION WARNING: This fireplace should not be installed in a confined space or unusually tight construction unless provisions are provided for adequate combustion and ventilation air. Read the following instructions to insure proper fresh air for this and other fuel-burning appliances in your home. PRODUCING ADEQUATE VENTILATION This fireplace shall not be installed in a room or space unless the required volume of indoor combustion air is provided by the method described in the NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, the...
  • Page 7 Divide the space volume by 50 cu. ft. to determine the maximum BTU/hr the space can support. __________ (Volume of space) ÷ 50 cu. ft. = (Maximum BTU/hr the space can support) Example: 2560 cu. ft. (volume of space) ÷ 50 cu. ft. = 51.2 or 51,200 (maximum BTU/hr the space can support) Add the BTU/hr of all fuel burning appliances in the space.
  • Page 8 Ventilation Air from Inside Building Figure 2 - Ventilation Air from Inside Building This fresh air would come from adjoining unconfined space. When ventilating to an adjoining unconfined space, you must provide two permanent openings: one within 12 inches of the wall connecting the two spaces (see options 1 and 2, Figure 2).

  • Page 9: Installation

    INSTALLATION NOTICE: This fireplace is intended for use as supplemental heat. Use this fireplace along with your primary heating system. Do not install this fireplace as your primary heat source. If you have a central heating system, you may run system’s circulating blower while using fireplace.
  • Page 10 If installing in a corner, use dimensions shown in Figure 8 for the rough opening. The height is 23.66(PC36VFC) & 28.11(PC32VFC), which is the same as the wall opening above. Carefully set fireplace in front of rough opening with back of fireplace inside wall opening.
  • Page 11 Figure 8 - Rough Opening for Installing in Corner IMPORTANT: When finishing your firebox, Combustible materials such as wall board, gypsum board, sheet rock, drywall, plywood, etc, must have ½ -in. clearance to the sides and top of the firebox. Combustible materials should never overlap the firebox front facing.
  • Page 12 INSTALLING GAS LINE NOTI CE A qualified service person must connect heater to gas supply. Follow all local codes. IMPORTANT: See Connecting to Gas Supply in your log set owner’s manual for details on gas hookup. You may run the gas line from either side of the firebox (see Figure 10). Decide which side you want to run the gas line from.

  • Page 13: Replacement Parts

    REPLACEMENT PARTS NOTE: Use only original replacement parts. This will protect your warranty coverage for parts replaced under warranty. PARTS UNDER WARRANTY Contact authorized dealers of this product. If they can’t supply original replacement parts, call Customer Service toll free at (1-877-886-5989) for referral information. When calling Customer Service or your dealer, have ready: ·...
  • Page 14 This list contains replaceable parts used in your fireplace. When ordering parts, follow the instructions listed under Replacement Parts on 13 of this manual. Part.. Description Part # PC32VFC-132 (PC32VFC) Screen Rod PC36VFC-132 (PC36VFC) PC32VFC-131 (PC32VFC) Draw screen PC36VFC-131 (PC36VFC)

This manual is also suitable for:

Pc36vfc
