Network

IP Settings

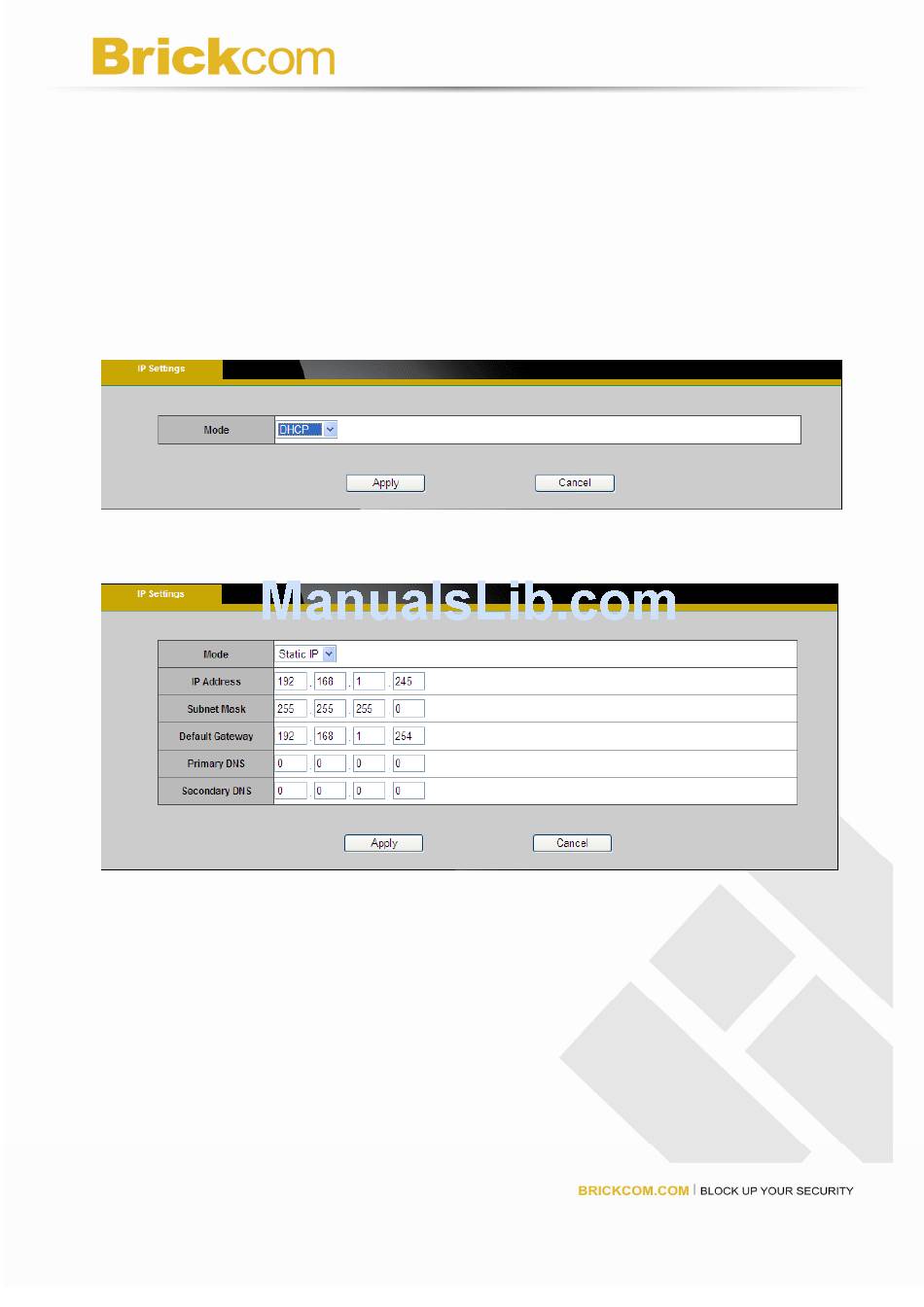

This section explains how to configure a wired/wireless network connection for the
Network Camera. There are several ways to setup the Network Camera over the Internet:
(1) obtain an available dynamic IP address assigned by a DHCP server, (2) use a static IP,
(3) use PPPoE (Point-to-point over Ethernet) or (4) use 3G (3rd Generation). Select the
desire setup mode from the IP settings drop-down menu.
1. DHCP – If this option is selected, the camera will automatically obtain an available
dynamic IP address from the DHCP server each time it connects to the LAN.
2. Static IP - Select this option to manually assign a static IP address to the camera.
Enter the static IP address, Subnet mask, Default Gateway, Primary and
Secondary DNS provided by the ISP.
49
