3.2 DIDO, Audio In/Out, RS485 Cable Connection
For the DIDO, Audio In/Out and RS485 cable connection, construct an Ethernet
cable using the pin definitions of the RJ-45 connector below and refer to step 5
for instructions on how to install the Water Proof Connector. Once the Ethernet
cable has been constructed using the waterproof connector, pass the cable
through the bracket and connect it to the RJ-45 connector at the bottom of the
camera.
3.3 WiFi or 3G Antenna Extension Cable Connection
Pass the Antenna extension cable through and bracket and connect it to the
Antenna connector at the bottom of the camera.

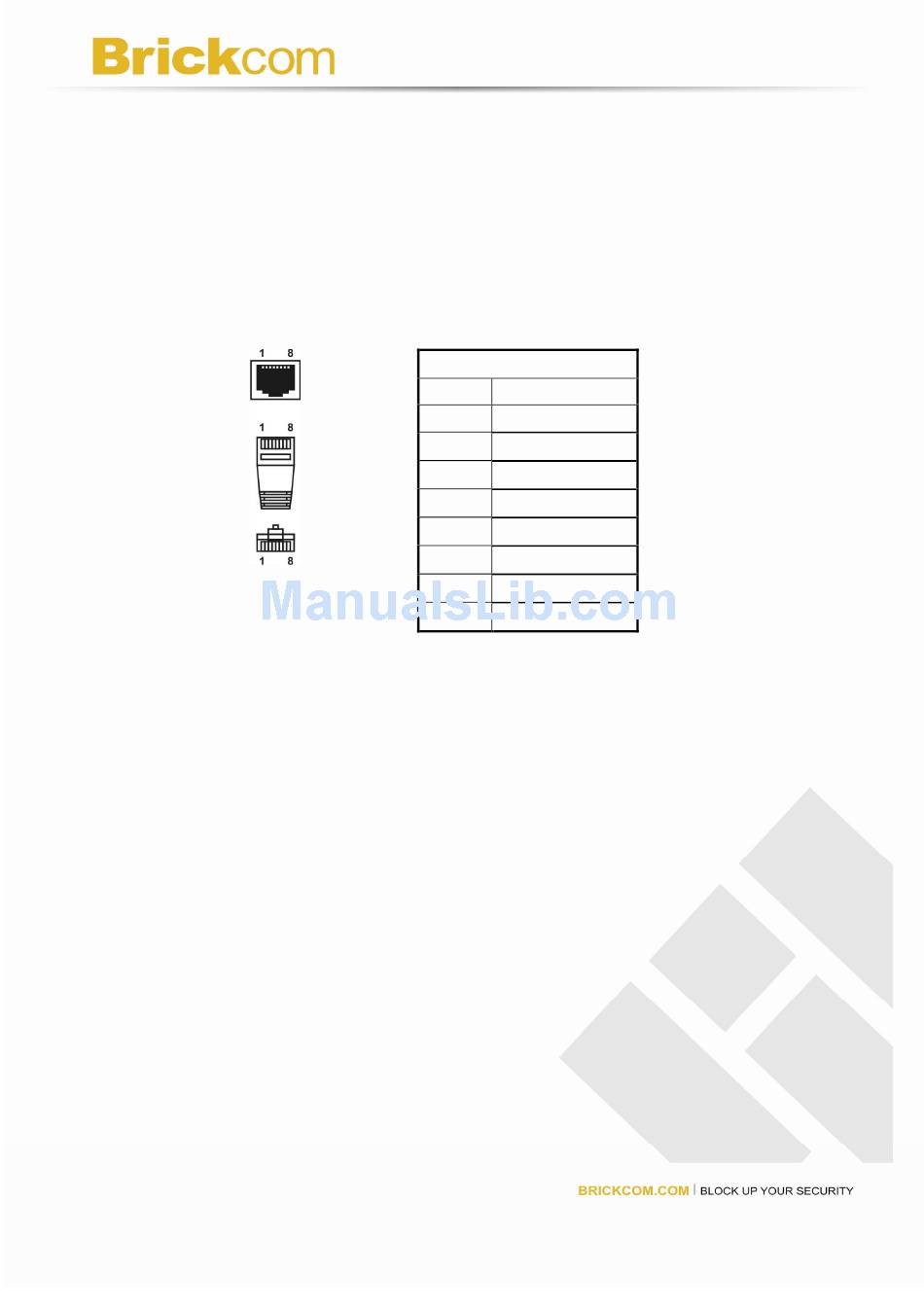

RJ45 Connector 2
Pin No. Function
Pin 1
Power +4.5V
Digital Output
Pin 2
Digital Input
Pin 3
Ground
Pin 4
Pin 5
RS-485-
Pin 6
RS-485+
Pin 7
Audio-in
Pin 8
Audio-out
13
