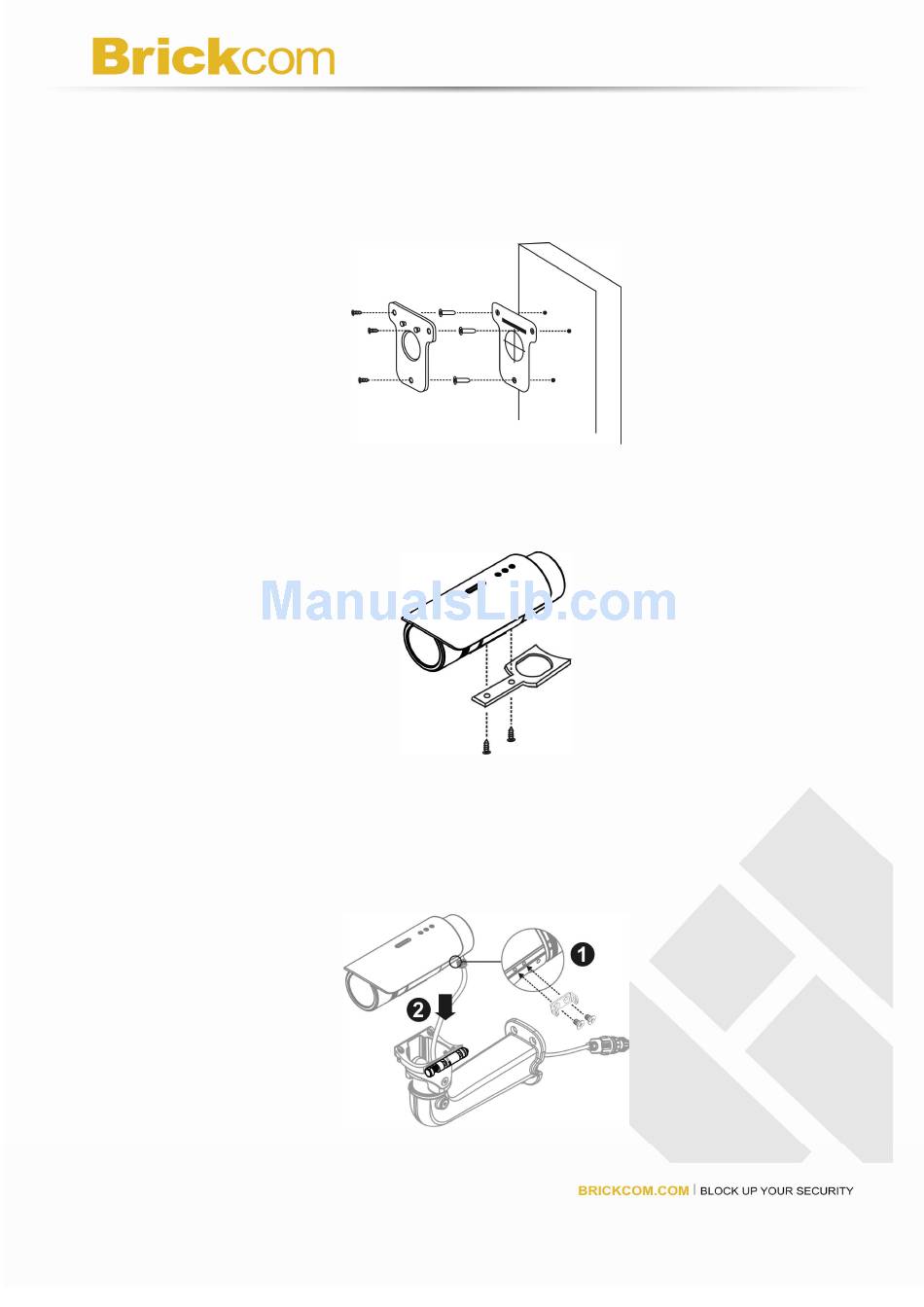

2 Wall Installation Using the Optional Bracket
2.1 Using the Bracket plate as a guide, drill three holes into the wall and hammer the
supplied plastic anchors into the three holes. Use a screwdriver and the
supplied screws to secure the plate to the wall.
2.2 Attach the Bracket Assembly Plate to the bottom of the camera using two
screws.
2.3 (1) Use the two supplied screws to secure the bracket to the side of the camera.
(2) Push back the spring on the mortise lock and hook the camera and attached
bracket onto the groove of the wall mount bracket as shown in the diagram.
