5 Camera Connection

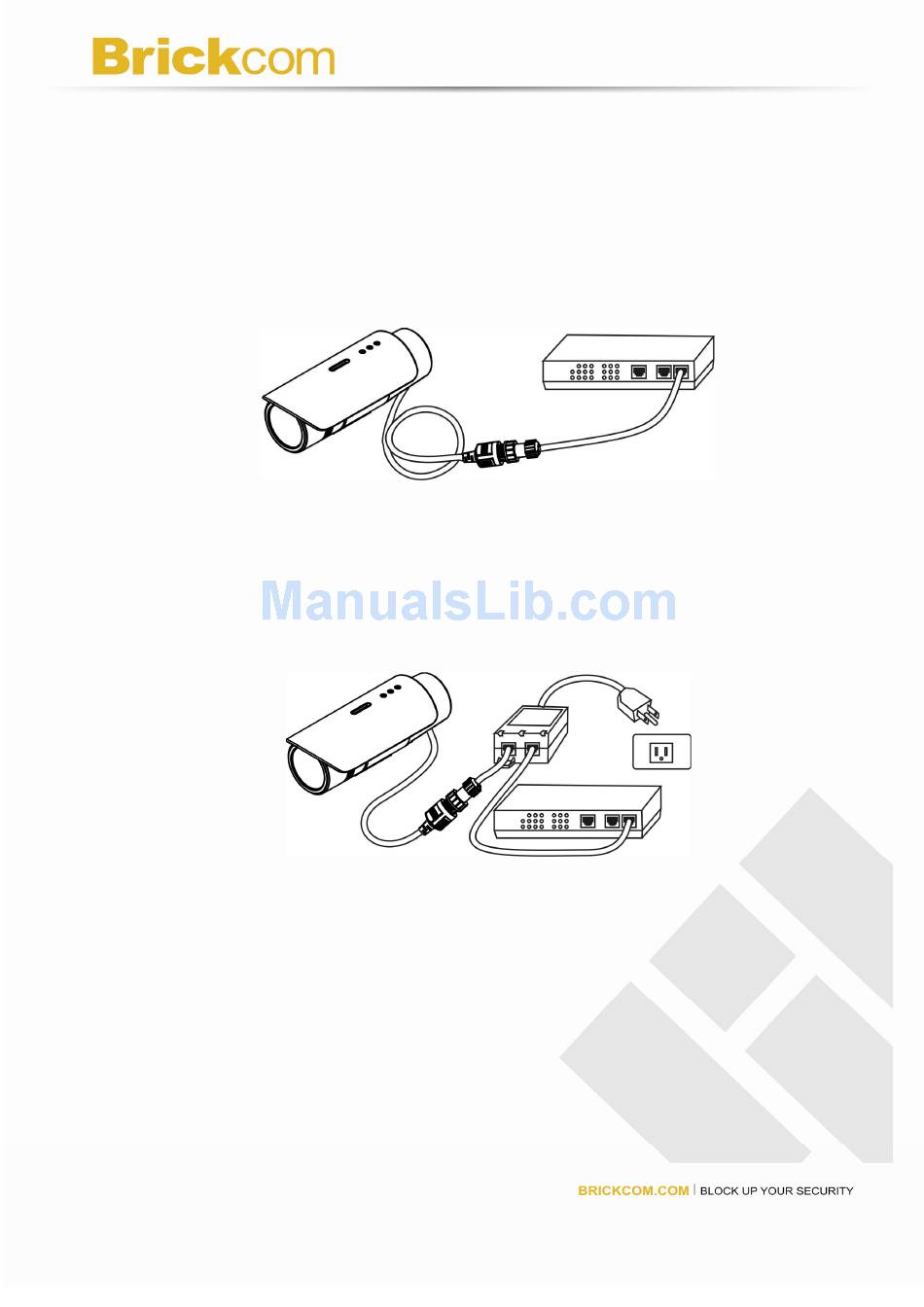

The OB-100A is PoE compliant, so there are two options for connecting the camera to
a power and Ethernet source.
PoE-enabled switch or a non-PoE switch.
A. If using a PoE-enabled switch:
i.
Use a single Ethernet cable to connect the camera to the PoE-enabled
switch.
B. If using a non-PoE switch:
i.
Use a standard RJ-45 cable to connect the camera to a PoE Injector.
ii.
Use a standard RJ-45 cable to connect the PoE Injector to the non-PoE
switch.
iii.
Use a standard power cable to connect the PoE Injector to a power outlet.
