Super Bright Led, 2-Pin White Plug; Valet/Program Switch, 2-Pin Blue Plug - Directed Electronics 4400 Installation Manual

IMPORTANT! The door lock outputs are low current and should not be attached
directly to any high current device; they are only to be used to activate relays
NOTE: For detailed instructions about connecting to the vehicle's power door lock systems, refer
to the Door Lock Wiring guide (Document No. 1041), available only to authorized dealers though
the technical resources listed at the front of this guide.
Peripheral Plug-In Harness

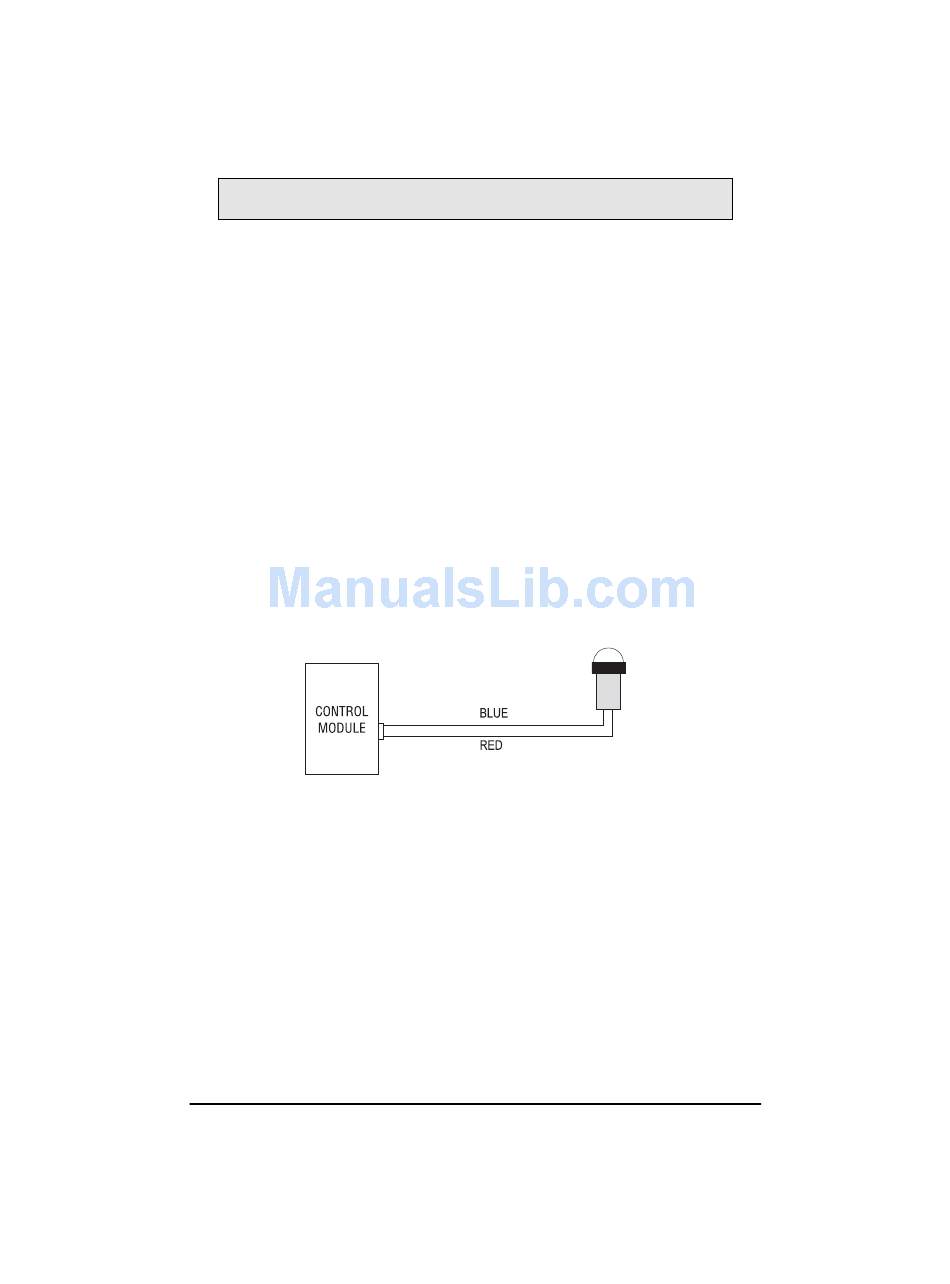

Super Bright LED, 2-Pin WHITE Plug

The super bright LED operates at (+) 2 volt DC and plugs into the two-pin WHITE port. Make
sure the LED wires are not shorted to ground as the LED will be damaged. Multiple LED's can be
used, but they must be wired in series. The LED fits into a 9/32-inch mounting hole. Be sure to
check for clearance prior to drilling the mounting hole.

Valet/Program Switch, 2-Pin BLUE Plug

The Valet/Program button should be accessible from the driver's seat. It plugs into the BLUE port
on the side of the unit. Since the system features Valet® by using the remote transmitter, the button
can be well hidden. Consider how the button will be used before choosing a mounting location.
Check for rear clearance before drilling a 9/32-inch hole and mounting the button.The GRAY wire
in the two-pin plug may also be used as a (+) ghost switch input and can be connected to any (+)
switch in the vehicle. (See Feature Descriptions section of this guide.)
