Please refer to the 'RS232 control' section for more information.

6.5 OPTION cable control

The S2 series of switchers have been designed to support networked control in
conjunction with C2-1000 or C2-2000 series units when connected via an OPTION
cable provided with the switcher.
When you connect your unit to a C2 unit via an OPTION cable, the video source
menu on the C2 unit will expand to reflect the extra inputs available on the switcher.
A single OPTION cable connecting the unit to a C2 unit will provide power to the unit
without the need for a separate power supply.

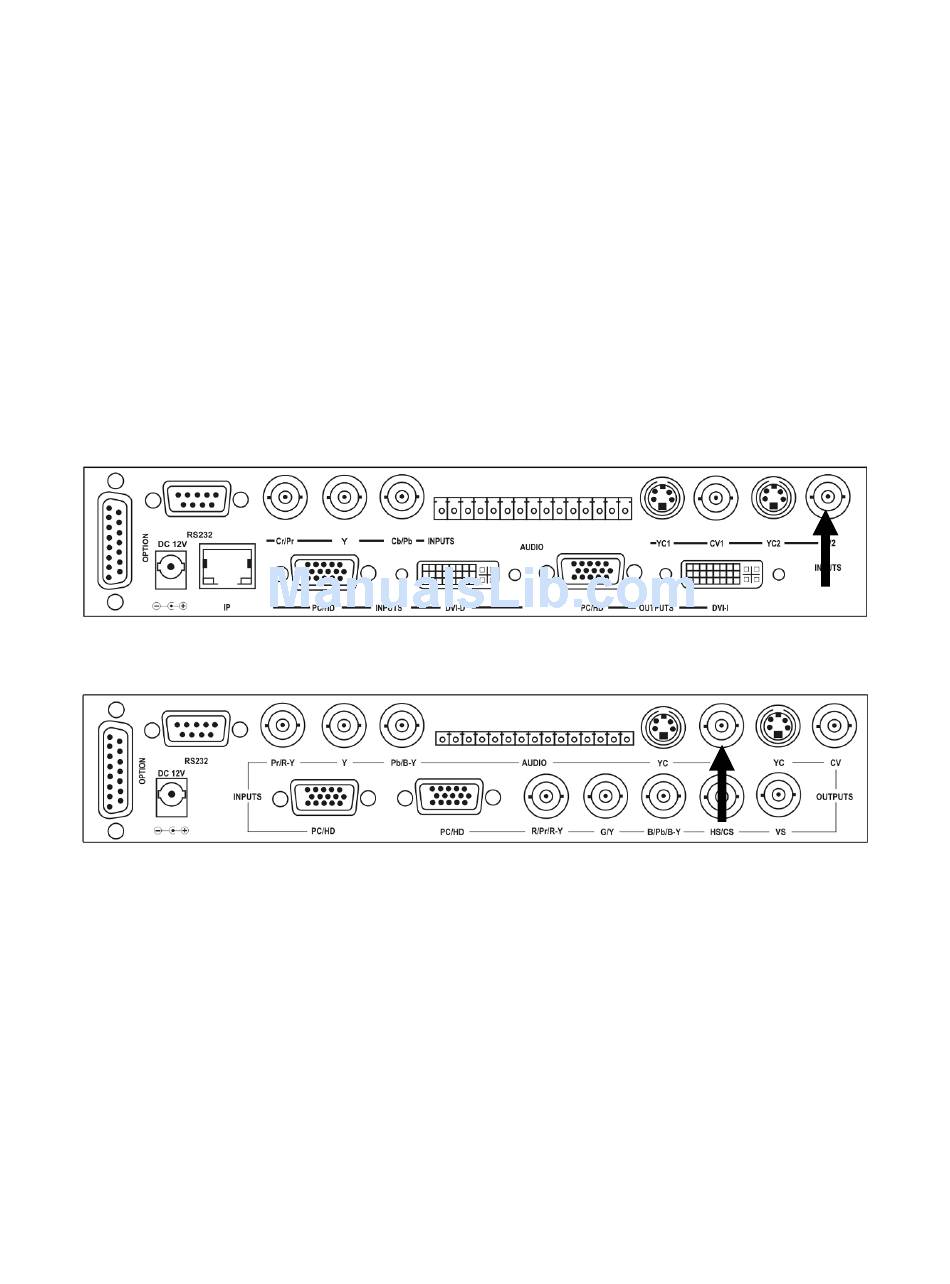

If you are connecting your unit to a C2-1000 or a C2-2000 series video processor,
you must connect your unit's video output to the video connector with the highest
number as shown in the following diagrams for the C2-1000 & C2-2000:
If your C2 unit has only one composite input then connect it to this input as shown:
This way the, in the case of an S2-105CV, selecting S2-CV1 to S2-CV5 on the scaler
will route inputs 1 to 5 on the switcher through to the C2 unit
Please refer to the 'OPTION cable control for multiple units' section for more
information.

6.6 Remote control

Your unit comes fitted with infra-red control capability, however infra-red controllers
are not shipped with the S2 switcher range as standard.
Please refer to the 'Infra-red remote control' section for more information.
