Page 1: Instruction Manual

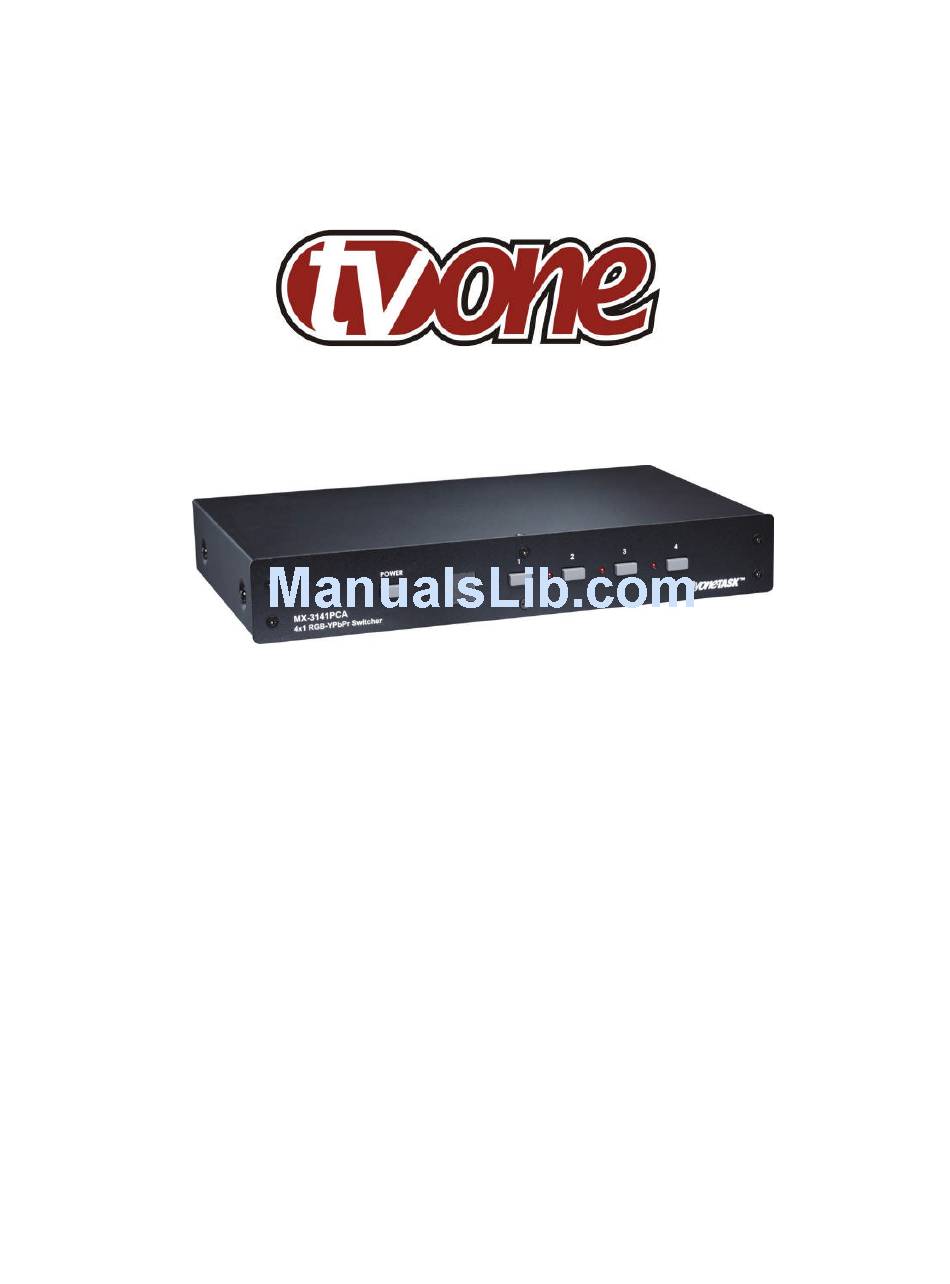

Instruction Manual MX-3141PCA HDTV/PC Video and Audio Routing Switcher... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance RS-232 Protocols 10.0 Contact Information... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this MX-3141PCA HDTV/PC 4x1 Video and Audio Switcher from TV One. The MX-3141PCA is designed to switch four different video inputs and their associated stereo audio inputs. Our professional video conversion products have been serving the industry for over twenty years. TV One offers a full line of high quality... -
Page 5: Specifications
SPECIFICATIONS Video Inputs MX-3141PCA 4x RGB/YPbPr via HD-15 Audio Inputs MX-3141PCA 4x via 3.5mm Mini -Stereo Video Outputs MX-3141PCA 1x RGB/YPbPr via HD-15 Audio Outputs MX-3141PCA 1x via 3.5mm Mini -Stereo Performance Video Bandwidth 300MHz + Video Impedance 75 Video Level... -
Page 6: Checking Package Contents
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: 1x MX-3141PCA Routing Switcher 1x AC Power Adapter 1x IR Remote Control ... -
Page 7: Operating The Unit
PC video and YPbPr Component video as inputs to the MX-3141PCA. It is important however to realize that the monitor or other device connected to the switcher’s output must be capable of displaying both PC video and YPbPr video else there will be faulty displays or no display present. -
Page 8: Limited Warranty
LIMITED WARRANTY TV One warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a fixed term from the date of purchase. The warranty term for specific product lines is defined below. 1. -
Page 9: Regulatory Compliance
REGULATORY COMPLIANCE The MX-3141PCA has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, Regulations and/or Guidelines. This Product and Power Adapter is RoHS Compliant. -
Page 10: Contact Information
Hsin Tai Wu Road, Hsichih No. 1900 Shangcheng Road Taipei Hsien 22101 Pudong, Shanghai Taiwan R.O.C. China 200120 Tel +886 2 2698-2296 Tel +86 21 5830-2960 Fax +886 2 2698-2297 Fax +86 21 5851-7949 sales.asia@tvone.com Email: sales.china@tvone.com www.tvoneasia.com www.tvonechina.com End of Manual...
