Summary of Contents for TV One MX-3141PCA
-

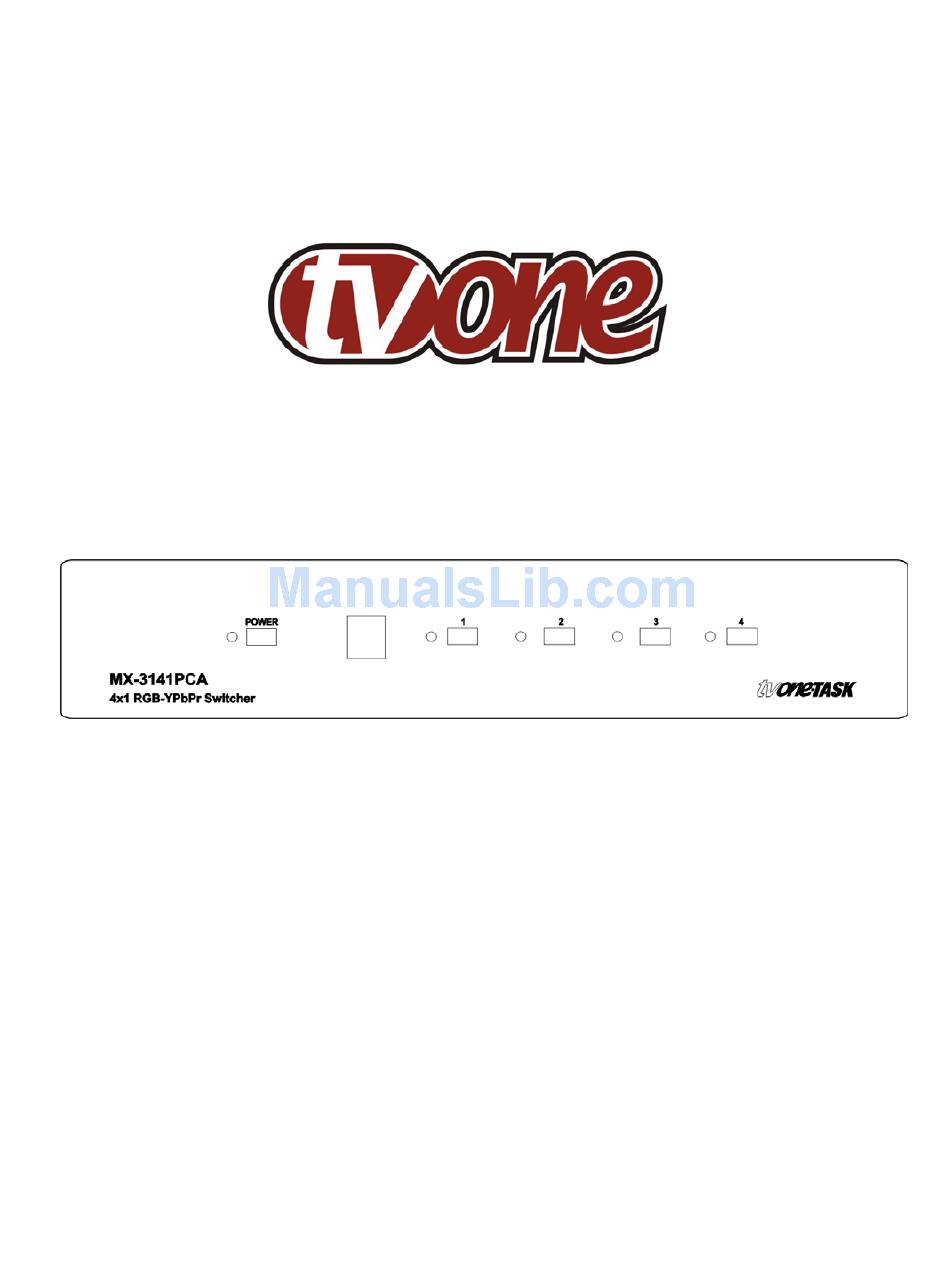

Page 1: Instruction Manual
Instruction Manual MX-3141PCA 4x1 Component and PC Video And Audio Switcher... -
Page 3: Table Of Contents
Table Of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Appendix A: RS-232 Protocols... -
Page 4: Introduction
INTRODUCTION Thanks for purchasing this MX-3141PCA HDTV/PC 4x1 Video and Audio Switcher from TV One. The MX-3141PCA is designed to switch 4 different Video inputs and their associated stereo audio inputs. The Video I/O is VGA or YPbPr and the Audio I/O are Right and Left channel Analog Audio. Our professional video conversion products have been serving the industry for over twenty years. -
Page 5: Specifications
SPECIFICATIONS Video Inputs Component Video/PC Video 4x HD-15 Video Outputs Component Video/PC Video 1x HD-15 Audio Inputs Analog Stereo Audio (R/L) 4x 3.5mm Mini Audio Outputs Analog Stereo Audio (R/L) 1x 3.5mm Mini Performance HDTV Television (YPbPr) 480i, 576i, 480p, 576p, 720p, 1080i, 1080p PC Video (RGB) VGA, SVGA, XGA, SXGA, UXGA, WUXGA (UXGA = 1600x1200, WUXGA = 1920x1200) -
Page 6: Checking Package Contents
CHECKING PACKAGE CONTENTS Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton: • 1x MX-3141PCA 4x1 HDTV-PC Video/Stereo Audio Switcher • 1x AC Power Adapter • 1x IR Remote Control •... -
Page 7: Connecting The Hardware
Please study the panel drawings below and become familiar with the signal input, outputs, power requirements/inputs plus any controls present. MX-3141PCA Front Panel The front panel contains the power switch and LED Power Indicator, the Infrared Sensor window and the four input selectors plus LED indicators that show which input has been selected. -
Page 8: Operating The Unit
In order for the remote to function properly, the small square window on the front of the MX-3141PCA must be unobstructed and not in sunlight or extremely bright artificial light and the distance from the IR remote and the switcher should not be more than found in a standard residential room. -
Page 9: Limited Warranty
REGULATORY COMPLIANCE The MX-3141PCA has been tested for compliance with appropriate FCC and CE rules and regulations. The Power Adaptor/Supply has been tested for compliance with appropriate UL, CSA, CE Rules, Regulations and/or Guidelines. -
Page 10: Appendix A: Rs-232 Protocols
APPENDIX A: RS-232 PROTOCOLS RS-232 Transmission Protocols: Baud Rate: 9600 bps Data Bit: 8 Bits Parity: None Stop Bit: Interconnect: MX-3141 Switcher Remote Controller Definition Definition Command Code Comment “I” + “1” Port 1 On “I” + “2” Port 2 On “I”... - Page 12 Erlanger, KY 41018 Westwood Industrial Estate Margate, Kent CT9 4JG, UK Tel 800-721-4044 Tel +44 (0)1843 873311 Fax 859-282-8225 Fax +44 (0)1843 873312 sales@tvone.com sales.europe@tvone.com www.tvone.com www.tvone.co.uk TV One Latin America TV One Mercosur 2790 NW 79 Ave Honduras 5849, 2...
