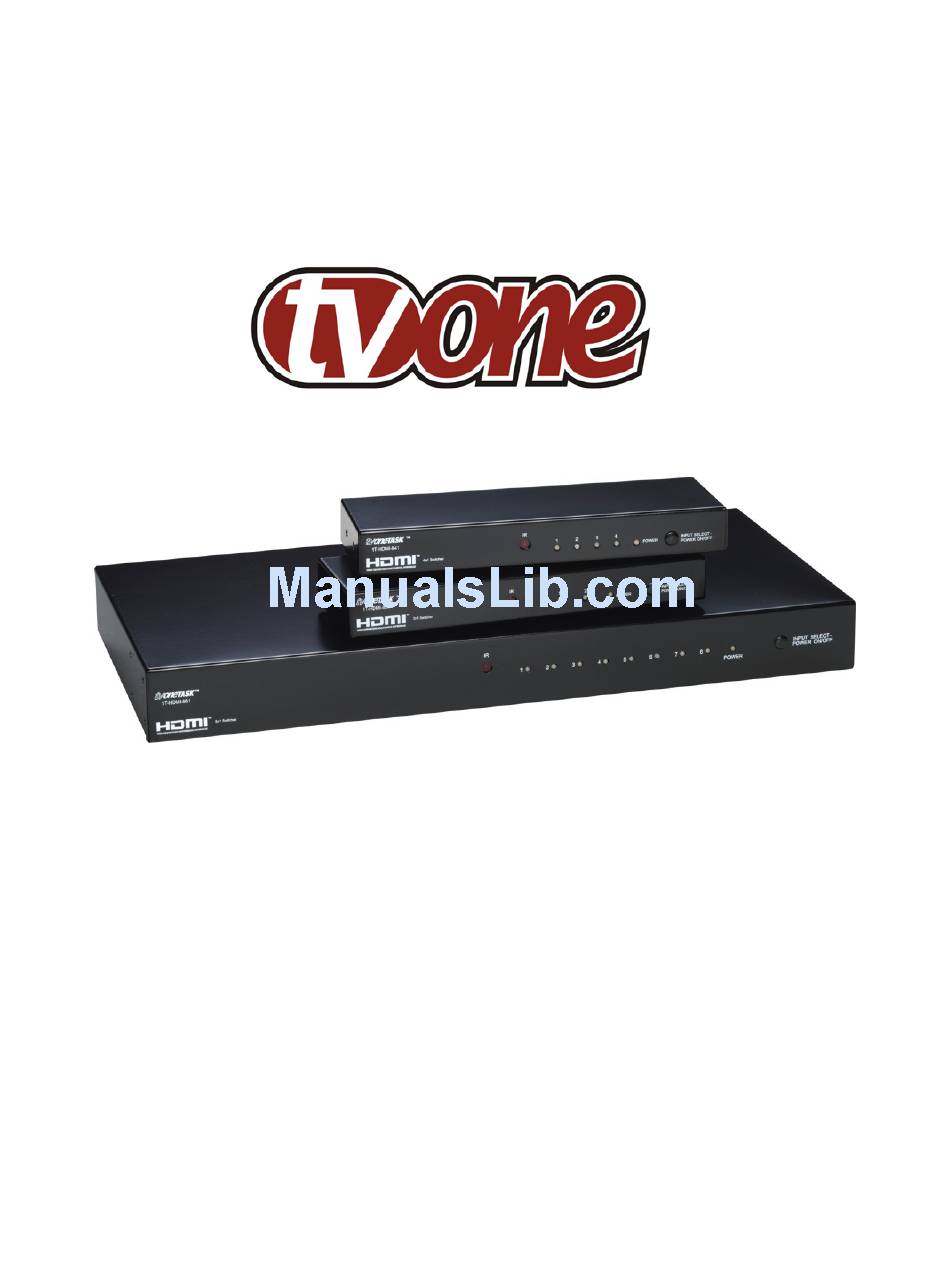

Page 1: Instruction Manual
Instruction Manual 1T-HDMI-821, 1T-HDMI-841 and 1T-HDMI-881 HDMI Switchers... -
Page 3: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Installation of Mounting Components Troubleshooting Limited Warranty Regulatory Compliance 10.0 RS-232 Code Information 11.0 Contact Information... -
Page 4: Introduction
Amplifiers and Cat.5 Transmission Systems. Liability Statement Every effort has been made to ensure that this product is free of errors. TV One cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 5: Specifications
Up to 15m (45’) (Note 1) Mechanical 1T-HDMI-821/841 (H-W-D) 28x220x71mm (1.1”x8.7”x2.8” ) 1T-HDMI-881 (H-W-D) 44x431x103mm (1.75”x17”x8” ) 1T-HDMI-821/841 Wt (Net) 450 g (1lb) 1T-HDMI-881 Wt (Net) 2.27 kg (5 lbs) Environmental Operating Temperature 0° to +70°C (+32° to 158° C) -
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or TV One immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 7: Operating The Unit
*Note: Proper operation of HDMI switchers depend on the use of the highest quality cables available. The distance specification of 50 feet is for HDMI signals up to 1080i resolution but cannot be guaranteed unless high quality cables are used throughout the system. OPERATING THE UNIT Power and input selection are controlled from one multi-purpose switch. -
Page 8: Installation Of Mounting Components
INSTALLATION OF MOUNTING COMPONENTS The 1T-HDMI-821 and 1T-HDMI-841 switchers can be mounted on any flat surface and the 1T-HDMI-881 switcher can be mounted in a standard 19” rack. Mounting the 1T-HDMI-821 or 1T-HDMI-841 Switchers Attach the two “L” shaped mounting brackets to the product using the furnished hardware and then attach the combined assembly to the desired location. -
Page 9: Troubleshooting
Should this product, in TV One’s opinion, prove defective within this warranty period, TV One, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of TV One. -
Page 10: Regulatory Compliance
TV One assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit. - Page 11 2x1 Commands: Command Code Description 0x01 Port 1 On 0x02 Port 2 On 0x05 Power On/Off 4x1 Commands: Command Code Description 0x01 Port 1 On 0x02 Port 2 On 0x03 Port 3 On 0x04 Port 4 On 0x05 Power On/Off 8x1 Commands: Command Code Description...
-
Page 12: Contact Information
11.0 CONTACT INFORMATION Should you have questions or require assistance with this product in areas not covered by this manual, please contact TV One at the appropriate location. TV One USA TV One Europe 2791 Circleport Drive Continental Approach Erlanger, KY 41018...
