Read this guide thoroughly and follow the installation and operation proce-
dures carefully in order to prevent any damage to the units and/or any de-
vices that connect to them.
This package contains:

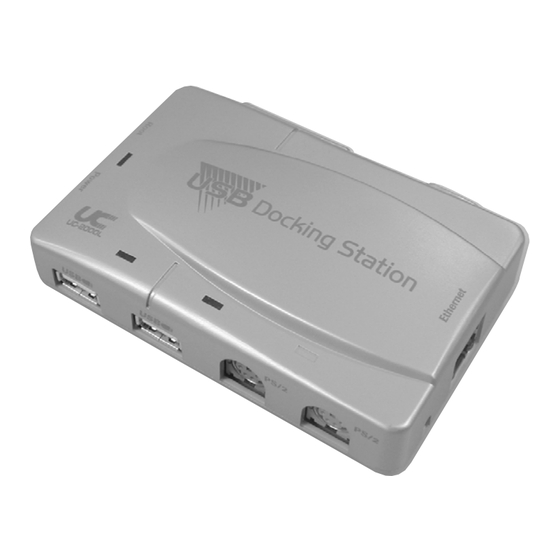

1 UC-2000 or UC-2000L USB Docking Station
1 USB Cable
1 Driver
1 Power Adapter
1 User Manual
If anything is damaged or missing, contact your dealer.
© Copyright 2000 ATEN International Co., Ltd.
Manual Part No. PAPE-1185-100
Printed in Taiwan 09/2000
2001-06-08

Advertisement

loading
Need help?

Need help?

Do you have a question about the UC-2000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATEN UC-2000

  • Page 1 Read this guide thoroughly and follow the installation and operation proce- dures carefully in order to prevent any damage to the units and/or any de- vices that connect to them. This package contains: 1 UC-2000 or UC-2000L USB Docking Station 1 USB Cable 1 Driver 1 Power Adapter 1 User Manual If anything is damaged or missing, contact your dealer.
  • Page 2 USB connection. In addition to ports for two USB peripheral devices, the UC-2000 and UC-2000L incorporate traditional serial, parallel, mouse, and keyboard ports so you don’t have to lose any of your current peripheral investments.
  • Page 3 Fully USB 1.1 Compliant Up to 12 Mbps USB Data Transfer Rate Multiple Port Connections: USB Port: Printers, digital cameras, scanners, stroage devices, keyboards, mice, joysticks, and all other USB devices Serial Port (DB-9): PDA cradles, external modems, and other se- rial interface devices Parallel Port (DB-25): Parallel printers, parallel port drives, and other parallel port devices...
  • Page 4 1. Power LED Lights Orange to indicate that the UC-2000 / UC-2000L is receiving power from the Power Adapter. 2. USB Port LEDs These LEDs light GREEN to indicate that a USB peripheral is connected to the corresponding port and is receiving power at the correct current level.If an overcurrent condition between the port...
  • Page 5 1. Serial Port The cable that connects to a serial device (printer, modem, etc.), plugs in here. 2. Parallel Port The cable that connects to a parallel device (printer, external drive, etc.), plugs in here. 3. USB Type B (Upstream) Port The cable that connects to the notebook plugs in here.
  • Page 6 UC-2000L’s power jack. 2. Plug the B end of the USB cable that came with this package into the UC-2000 / UC-2000L’s USB Type B (Upstream) port, located on the left side of the unit. 3. Plug the A end of the USB cable that came with this package into the computer’s USB port.
  • Page 7 In the dialog box that comes up, choose Specify a Location; put the driver disk in the disk drive; Click Browse...; Select the drive that contains the driver disk; Select the UC-2000 / UC-2000L folder; Select the Win2000 or Win98 folder (depending on the version of Windows you are running);...
  • Page 8 USB Type B (Upstream) Port; plug the A Connector end of the USB cable into the notebook’s USB port. 4. Windows will recognize the UC-2000 / UC-2000L and install the necessary USB hardware drivers to handle the attached peripherals.
  • Page 9 LAN Cable Power Adapter Cable USB Cable - 8 - 2001-06-08...
  • Page 10 Function Specification Power Consumption AC 5V; 540m A Port Replicators Serial 1 DB-9 Male Parallel 1 DB-25 Female PS/2 1 x 6 pin mini-DIN Female - Keyboard 1 x 6 pin mini-DIN Female - Mouse 1 Type B (Upstream) 2 Type A (Downstream) *Etherenet 1 RJ-45 Receptacle (10Base-T LEDs Power...
  • Page 11 WARNING!!! This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause interference to radio communications. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
