Summary of Contents for ATEN UH3236

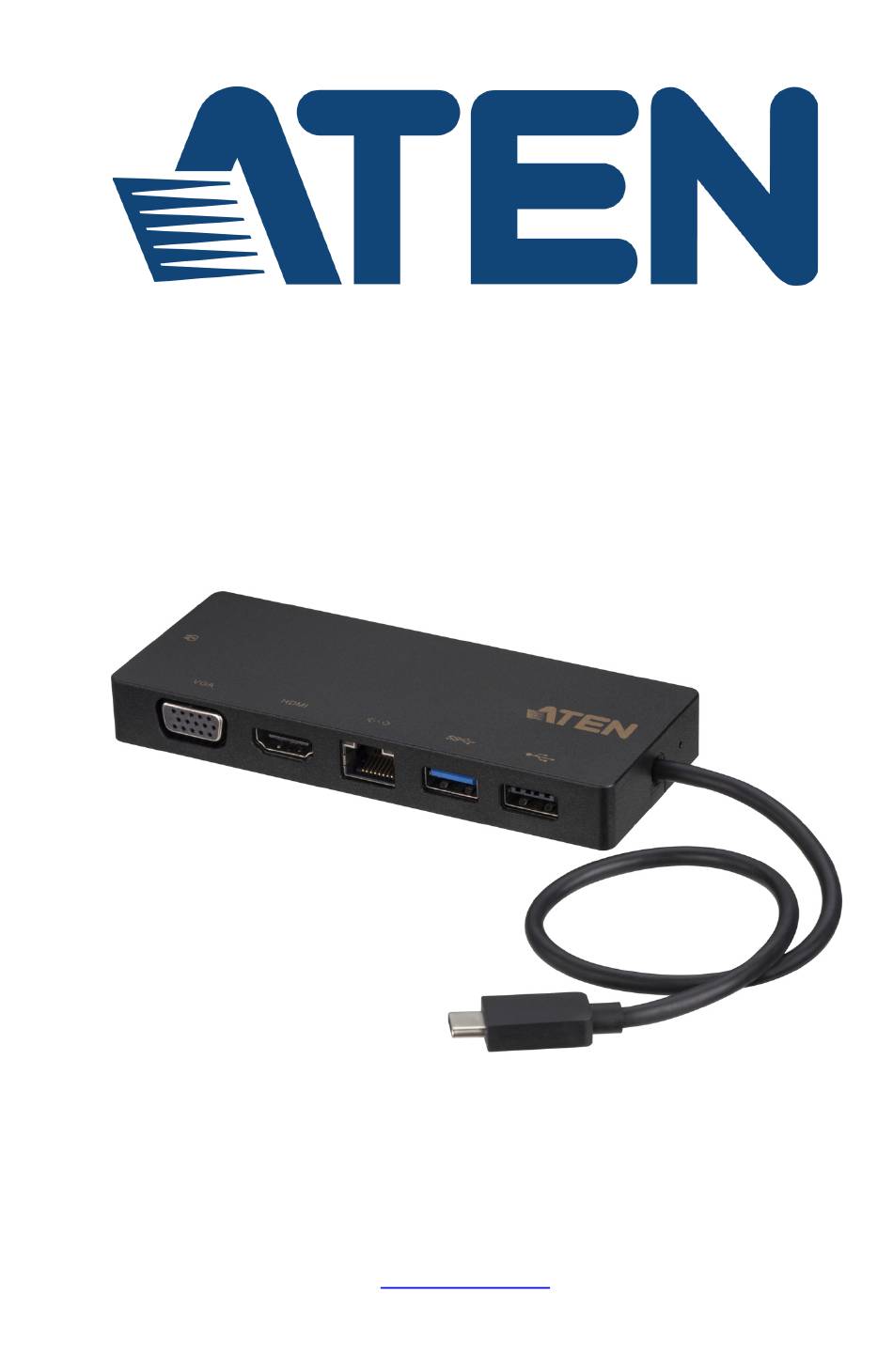

- Page 1 UH3236 USB-C Multiport Mini Dock User Manual www.aten.com...
-
Page 2: Emc Information
UH3236 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 UH3236 User Manual UH3236 備 名 稱 USB-C 埠 迷 你 充 電 擴 充 基 座 型 號 ( 型 式 ) Equipment Type designation USB-C Multiport Mini Dock Name (Type) 限 用 物 質 及 其 化 學 符 號...
-
Page 4: User Information
UH3236 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 5: Package Contents
UH3236 User Manual Package Contents 1 USB-C Multiport Mini Dock 1 User Instructions Note: Make sure that all of the components are present and in good order. If anything is missing or was damaged in shipping, contact your dealer. -
Page 6: Table Of Contents
UH3236 User Manual Table of Contents EMC Information..........ii RoHS . -
Page 7: About This Manual
UH3236 User Manual About this Manual This user manual is provided to help you get the most from the UH3236 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 8: Conventions
Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 9: Introduction
USB 2.0 Type-A, USB 3.1 Gen 1 Type-A, Gigabit LAN, HDMI, and VGA – through a single USB-C cable. The UH3236 routes video from a source computer to a 4K HDMI (3840 x 2160 @ 30 Hz) or VGA (1920 x 1200 @ 60 Hz) monitor via a single cable. -
Page 10: Features
For video output to work through a USB-C port, it must support DP Alt Mode. 2. The total charging time may vary depending on the spec of USB- C power adapter connected to the UH3236. 3. Support Android mirror mode only. System Requirements Windows USB-C enabled computer: ... -
Page 11: Components
Chapter 1. Introduction Components Component Description USB-C DC-in Connects the power adapter of the host to power the unit. Port* VGA Port Connect a VGA monitor for video display HDMI Port Connect an HDMI monitor for video display Gigabit LAN Port For wired Internet, connect an Internet-enabled Ethernet cable to this port USB 3.1 Gen1 Connect a USB peripheral device... - Page 12 UH3236 User Manual This Page Intentionally Left Blank...
-
Page 13: Hardware Setup / Configuration
USB 2.0 HDMI or VGA 1. Plug in the power adapter to the USB-C DC in Port on your UH3236. Note: Please plug in the USB-C power adapter to the USB-C DC in Port before using the dock, as plugging or unplugging of the USB-C DC in port may cause a momentary disconnect on USB devices connected to the docking station. -
Page 14: Configuration And Settings
UH3236 User Manual 5. Connect USB peripheral devices to the USB 3.1 Gen1 and USB 2.0 ports on the UH3236. Configuration and Settings Supported VGA Resolutions Horizontal Vertical Frame Rate 1920 1200 60 Hz 1920 1080 60 Hz 1366 60 Hz... -
Page 15: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 16 CAMLIVE User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
-
Page 17: Technical Support
Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 18: Specifications
CAMLIVE User Manual Specifications Function UH3236 Computer Connections Cable Length 35cm Connectors Computer 1 x USB-C Male (Black) Device 1 x USB 2.0 Type A Female (Black) 1 x USB 3.1 Gen1 Type A Female (Blue) Video Output 1 x HDMI Female (Black) - Page 19 Appendix Function UH3236 Physical Porperties Housing Plastic Weight 0.20 kg (0.44 lb) Dimensions (L x W x H) 14.00 x 5.50 x 1.60 cm (5.51 x 2.17 x 0.63 in.
-
Page 20: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
