- Page 1 USB-C Dual-View Mini Dock USER MANUAL UH3233...
- Page 2 EMC Information Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
-
Page 3: Technical Support
UH3233 User Manual Online Registration http://eservice.aten.com International Telephone Support International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8-4481-58923 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com... -
Page 4: Package Contents

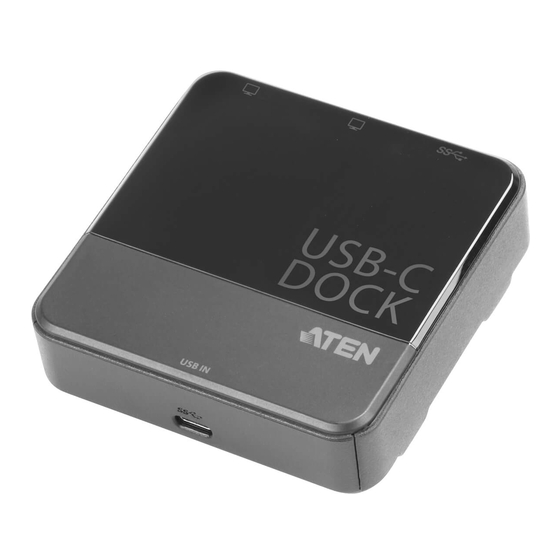

® Copyright © 2017 ATEN International Co., Ltd.® Manual Date: 2017-12-28 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 4 -... - Page 5 USB-C device into a dual monitor workstation, and is compliant with the latest USB 3.1 Gen 1 Type-C specifications. The UH3233 can route video from a source device to one HDMI monitor for 4K resolution or to two HDMI monitors, splitting the video transmission for a dual-view display via a single cable for a resolution of 1920x1080 on each HDMI monitor.
- Page 6 Features Connects a computer to two HDMI monitors with Dual-View output USB 3.1 Gen 1 compliant Supports 4K (UHD) resolution via single display output* Supports dual-display video output up to 1920 x 1080 simultaneously* USB 3.1 Gen 1 port with data transfer rates up to 5 Gbps Plug and Play –...
-
Page 7: System Requirements
System Requirements Hardware A USB Type-C or Thunderbolt™ 3 USB Type-C compatible computer* Two HDMI monitors Note: 1. For video output to work through a USB-C port, it must support DP Alt Mode. 2. For Dual-View to work, the computer’s onboard graphics module or video source requires DisplayPort 1.2 with MST+HBR2 compatibility to support video output under extended mode. -
Page 8: Front View
Component Description Power / Status This LED lights Blue to indicate the UH3233 is powered on, or Orange to indicate that the UH3233 isn’t receiving sufficient power from the computer to supply power to the device connected to the USB 3.1 Gen 1 Type-C port. - Page 9 2. Make sure that all devices you will be installing are properly grounded. To set up the UH3233, use the diagram on the next page (the numbers in the diagram correspond with the numbered instructions below), and do the following: 1.
- Page 10 - 10 -...
-
Page 11: Specifications
Specifications Function UH3233 Computer Connections Connectors Computer 1 x USB-C Female (Black) Device 1 x USB 3.1 Gen 1 Type A Female (Blue) Video Output 2 x HDMI Female (Black) LEDs Power 1 (Blue/Orange) Video HDMI 3840 x 2160 @ 30 Hz... -
Page 12: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
