ATEN UH3234 User Manual

Usb-c multiport dock with power pass-through
Hide thumbs Also See for UH3234:
Table of Contents

Advertisement

Quick Links

Download this manual
USB-C Multiport Dock with Power Pass-Through
USER MANUAL
UH3234

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH3234 and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN UH3234

Summary of Contents for ATEN UH3234

  • Page 1 USB-C Multiport Dock with Power Pass-Through USER MANUAL UH3234...

  • Page 2: Emc Information

    EMC Information Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
  • Page 3 - 3 -...
  • Page 4 UH3234 User Manual Online Registration International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 Technical Support  For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com...

  • Page 5: Package Contents

    ® Copyright © 2018 ATEN International Co., Ltd.® Manual Date: 2019-11-20 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 5 -...

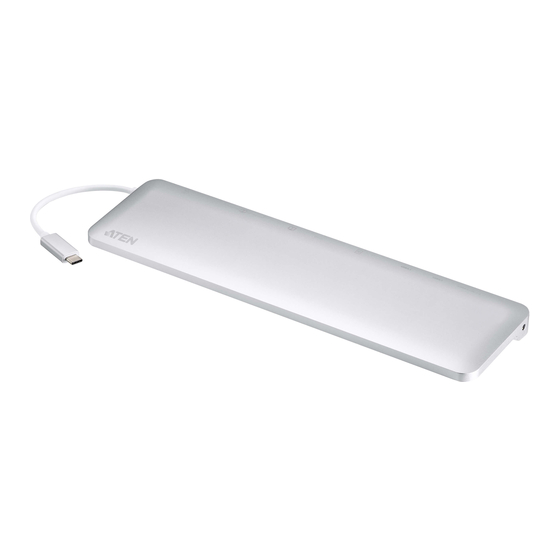

  • Page 6 Overview The ATEN UH3234 USB-C Ultra-Slim Multiport Dock is an ultra- sleek, one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 10 devices, with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB 3.1 Gen 1, SD/MMC/Micro SD, Ethernet and Audio connectivity.
  • Page 7 MST technology. Mac computers only support single-view output. 3. UH3234 does not support DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI. 4. SD and Micro SD Card cannot be used at the same time;...

  • Page 8: System Requirements

    System Requirements Windows USB-C enabled computer:  - Windows® 10 (32-bit / 64-bit) and above  - With Intel 7th-Generation Core Processor (Kaby Lake with HD 6XX series integrated graphics) and above. Note: For more information about CPU generation, please go https://www.intel.com/content/www/us/en/processors/ processor-numbers.html ...
  • Page 9 VGA Port The cable from an VGA monitor plugs into this port. USB-C DC In Port The power adapter cable plugs into this jack. USB-C Host The Host connector enabled UH3234 plugs into your USB-C Connector laptop. - 9 -...

  • Page 10: Installation

    2. Make sure that all devices you will be installing are properly grounded. To set up the UH3234, use the diagram on the next page (the numbers in the diagram correspond with the numbered instructions below), and do the following: 1.
  • Page 11 Supports charging ( 5 V / 1.5 A ) Gigabit Ethernet Support 20V/3A 12V/3A 9V/3A 5V/3A Check USB-C charge rate of your laptop. HDMI or VGA - 11 -...

  • Page 12: Configuration And Settings

    Configuration and Settings Video Output Support Resolution Frequency Single View Dual View 30 Hz (3840 x 2160) Full HD 60 Hz (1920 x 1080p) Monitor/Sound Settings External Monitor Settings: Mac OS X Option 1: Extend Mode 1. Open System Preferences and click Displays. 2.

  • Page 13: Specifications

    2. The minimum system power requirement for basic USB functions and video output should be at least 5V, 15W. 3. The first 15W will supply the UH3234, and the balance power will supply to the laptop. - 13 -...
  • Page 14 Function UH3234 Video Single DisplayPort 3840 x 2160 @ 30 Hz Resolution View HDMI 3840 x 2160 @ 30 Hz 1920 x 1200 @ 60 Hz Dual DisplayPort 1920 x 1080 @ 60 Hz View HDMI/VGA 1920 x 1080 @ 60 Hz...
  • Page 15 Safety Information Avoid circuit overloads. Before connecting any equipment to a circuit, know the power supply's limit and never exceed it. Always review the electrical specifications of a circuit to ensure that you are not creating a dangerous condition or that one doesn't already exist. Circuit overloads can cause a fire and destroy equipment.

  • Page 16: Limited Warranty

    What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or...
