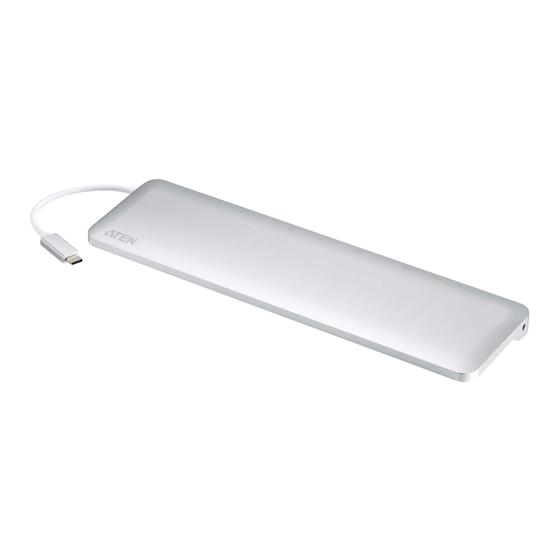

- Page 1 USB-C Multiport Dock with Power Pass-Through USER MANUAL UH3234...
-
Page 2: Emc Information
© Copyright 2021 ATEN® International Co., Ltd. Manual Date: 2021-01-06 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. - Page 3 - 3 -...
- Page 4 For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For North American technical support: Email Support support@aten-usa.com...
-
Page 5: Package Contents
Package Contents 1 UH3234 USB-C Multiport Dock with Power Pass-Through 1 User Instructions Check to make sure that all the components are present and that nothing got damaged in shipping. If you encounter a problem, contact your dealer. Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit, and/or any of the devices connected to it. - Page 6 Overview The ATEN UH3234 USB-C Ultra-Slim Multiport Dock is an ultra- sleek, one-step total upgrade for your laptop that provides all the extra expansion capabilities that you need. Simply use one cable to add up to 10 devices, with power delivery pass-through to boost your productivity with extra HDMI, DisplayPort, VGA, USB 3.1 Gen 1, SD/MMC/Micro SD, Ethernet and Audio connectivity.
- Page 7 Features Connects up to 10 devices instantly through a USB-C cable Supports USB Power Delivery 2.0 (PD 2.0) for laptop charging up to 60W via a USB-C PD power adapter - power profile includes 5V, 9V, 12V, and 20V ...
-
Page 8: System Requirements
System Requirements Windows USB-C enabled computer: - Windows® 10 (32-bit / 64-bit) and above - With Intel 7th-Generation Core Processor (Kaby Lake with HD 6XX series integrated graphics) and above. Note: For more information about CPU generation, please go https://www.intel.com/content/www/us/en/processors/ processor-numbers.html ... - Page 9 Components UH3234 Component Description 3.5 mm Stereo 4- The cable from your microphone/speakers plugs in here. Pole Audio Jack with Microphone USB 3.1 Gen 1 The cables from USB 3.1 Gen 1/2.0/1.1 peripheral devices plug Type-A Port with into these port and can be used for charging. This port supports BC 1.2 fast Battery Charging Specification Revision 1.2 (BC 1.2) and provides charging (5V/...
-
Page 10: Installation
Installation 1. Make sure that the power to any device that you connect to the installation has been turned off. 2. Make sure that all devices you will be installing are properly grounded. To set up the UH3234, use the diagram on the next page (the numbers in the diagram correspond with the numbered instructions below), and do the following: 1. - Page 11 Supports charging ( 5 V / 1.5 A ) Gigabit Ethernet Support 20V/3A 12V/3A 9V/3A 5V/3A Check USB-C charge rate of your laptop. HDMI or VGA - 11 -...
-
Page 12: Configuration And Settings
Configuration and Settings Video Output Support Resolution Frequency Single View Dual View 30 Hz (3840 x 2160) Full HD 60 Hz (1920 x 1080p) Monitor/Sound Settings External Monitor Settings: Mac OS X Option 1: Extend Mode 1. Open System Preferences and click Displays. 2. -
Page 13: Specifications
Specifications Function UH3234 Computer Connections Connectors Computer 1 x USB-C Male Device 3 x USB3.1 Gen1 Type A Female* *1. 1 port supports BC1.2 with 7.5W (5V/ 1.5A), the other 2 ports share 5W (5V/ 2. The total output of 3 x USB3.1 Gen1 Type A Female is 10W(5V@2A) Video Output 1 x DisplayPort Female... - Page 14 Function UH3234 Video Single DisplayPort 3840 x 2160 @ 30 Hz Resolution View HDMI 3840 x 2160 @ 30 Hz 1920 x 1200 @ 60 Hz Dual DisplayPort 1920 x 1080 @ 60 Hz View HDMI/VGA 1920 x 1080 @ 60 Hz Power Consumption DC 5V, 15W...
- Page 15 Safety Information Avoid circuit overloads. Before connecting any equipment to a circuit, know the power supply's limit and never exceed it. Always review the electrical specifications of a circuit to ensure that you are not creating a dangerous condition or that one doesn't already exist. Circuit overloads can cause a fire and destroy equipment.
-
Page 16: Limited Warranty
What is covered by the Limited Hardware Warranty ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or...
