- Page 1 Thunderbolt 3 Multiport Dock USER MANUAL UH7230...
- Page 2 EMC Information Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment.
-
Page 3: Technical Support
UH7230 User Manual Online Registration International http://eservice.aten.com Telephone Support International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8-4481-58923 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com... -
Page 4: Package Contents

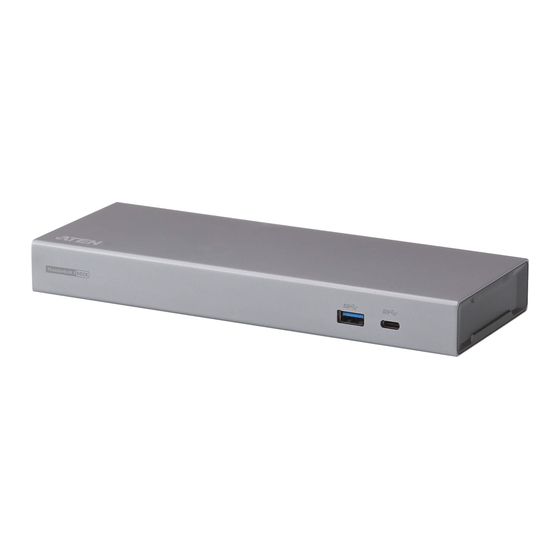

® Copyright © 2017 ATEN International Co., Ltd.® Manual Date: 2017-12-19 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 4 -... - Page 5 Overview The UH7230 Thunderbolt 3 Multiport Dock connects a laptop to Ethernet, DisplayPort, USB-C 3.1 Gen 1, speaker, and microphone ports through a single USB-C cable. The all-in-one dock provides a total of 8 ports and is designed to instantly connect and disconnect from your Thunderbolt 3 laptop.
- Page 6 Features Supports both Thunderbolt 3 (40Gbps) and USB 3.1 Gen 2 (10Gbps) protocols through a single Thunderbolt cable Connect up to 8 devices to a laptop via a single Thunderbolt 3 USB-C cable, or daisy-chain up to 5 additional Thunderbolt devices Supports 5K resolution on a single Thunderbolt 3 display or dual 4K resolution on one DisplayPort display and one...
-
Page 7: System Requirements
System Requirements Hardware 1 Thunderbolt 3 enabled laptop Software Windows® 10 (32-bit / 64-bit) and above Mac OS X 10.12 and above* - 7 -... - Page 8 Components UH7230 Front View Component Description USB 3.1 Gen 1 Plug a USB 3.0/2.0/1.1 peripheral device into this port. Type-A Port* USB 3.1 Gen 1 Connects to a compatible USB 3.1 Gen 1 Type-C peripheral. Type-C Port UH7230 Front View...
- Page 9 Component Description Thunderbolt 3 Connect the laptop via Thunderbolt 3 USB-C cable to this port USB-C Host Port (package included). Thunderbolt 3 Connect a USB-C or Thunderbolt 3 peripheral device to this port. USB-C Data Port DisplayPort Port Connect the cable that connects a DisplayPort monitor to this port. DC Power Jack Plug the power adapter into this port.
- Page 10 2. Make sure that all devices you will be installing are properly grounded. Hardware To set up your UH7230 installation, refer to the diagram (the numbers in the diagram correspond to the steps), and do the following: 1. Plug the AC power adapter (included with this package) to the DC power jack on the rear of the UH7230.
- Page 11 Note: A Thunderbolt 3 or USB-C monitor can be connected to the Thunderbolt 3 USB-C Data Port along with the DisplayPort monitor (in step 3) to provide a dual view setup. Alternatively, by disconnecting the DisplayPort monitor (in step 3) and connecting a Thunderbolt 3 monitor to the Thunderbolt 3 USB-C Data Port, you can achieve 5K resolution, if the monitor supports a 5K video resolution.
-
Page 12: Specifications
Specifications Function UH7230 Laptop Connections 1 Thunderbolt Laptop Device Connections 5 Max (via Thunderbolt Daisy-Chaining) Connectors Laptop 1 x Thunderbolt 3 (USB-C) Female (Black) Device 1 x Thunderbolt 3 (USB-C) Female (Black) 3 x USB 3.1 Gen 1 Type-A Female (Blue) 1 x USB 3.1 Gen 1 Type-C Female (Black) - Page 13 Function UH7230 Weight 0.37 kg (0.83 lb) Dimensions (L x W x H) 22.20 x 8.20 x 2.60 cm (8.74 x 3.23 x 1.02 in.) - 13 -...
- Page 14 ATEN will provide a repair service, without charge, during the Warranty Period. If a product is defective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
