ATEN UH3237 User Manual

ATEN UH3237 User Manual

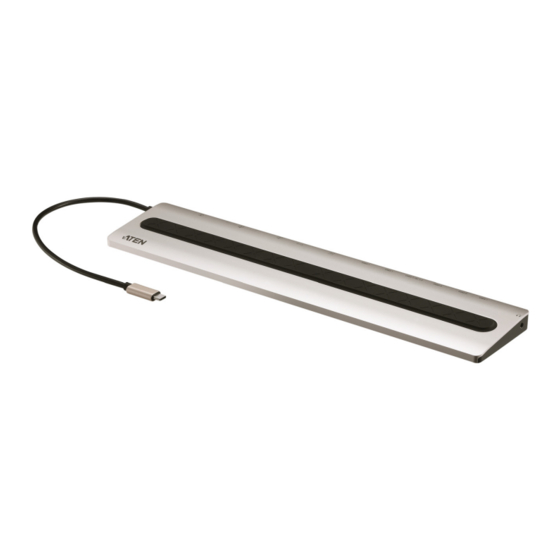

Usb-c multiport dock with power pass-through

Advertisement

Quick Links

UH3237
USB-C Multiport Dock with Power Pass-Through
User Manual
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH3237 and is the answer not in the manual?

Questions and answers

Summary of Contents for ATEN UH3237

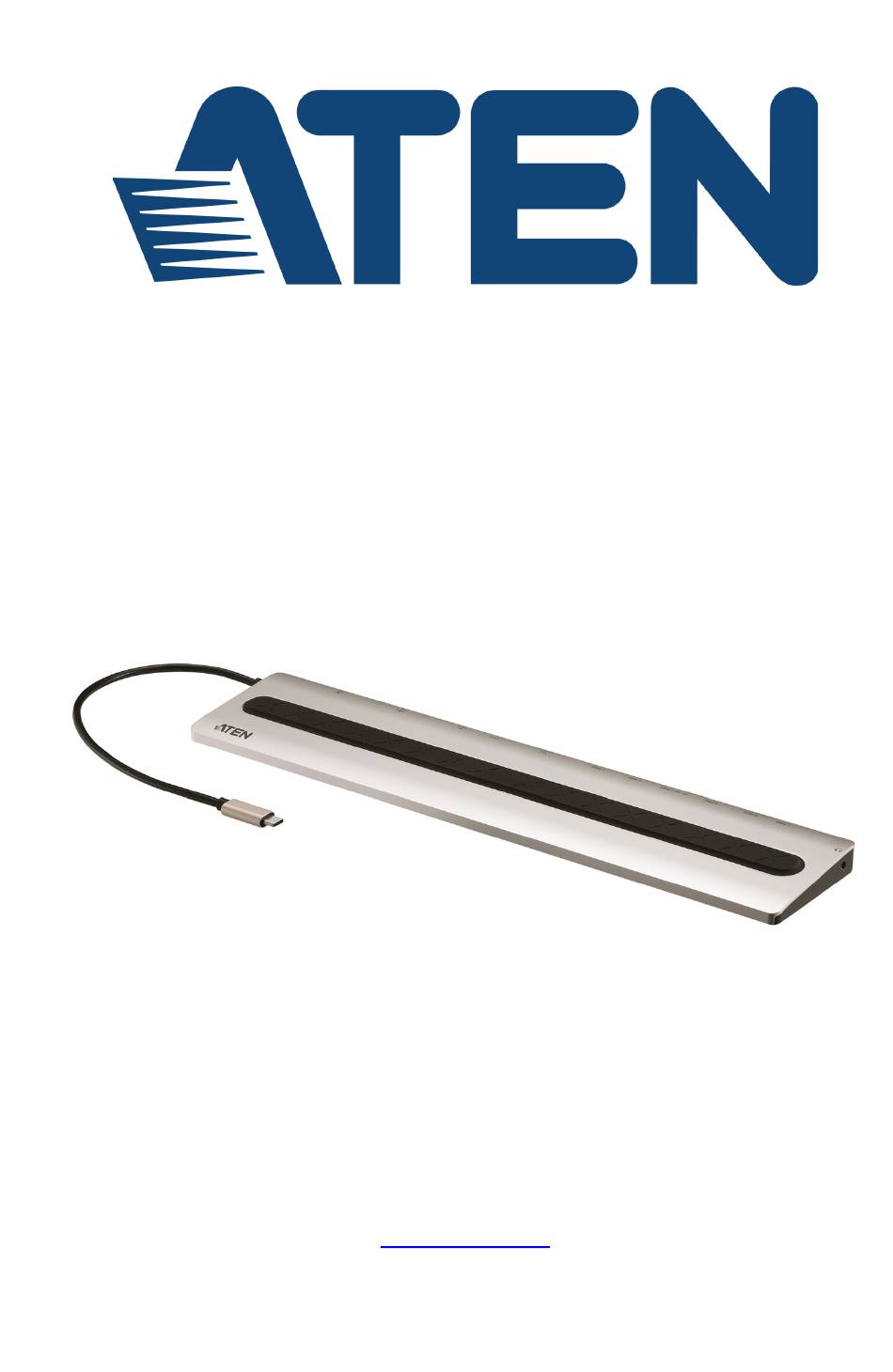

  • Page 1 UH3237 USB-C Multiport Dock with Power Pass-Through User Manual www.aten.com...
  • Page 2: Emc Information

    UH3237 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: User Information

    UH3237 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988...
  • Page 4: Package Contents

    UH3237 User Manual Package Contents 1 USB-C Multiport Dock with Power Pass-Through 1 User Instructions Note: Make sure that all of the components are present and in good order. If anything is missing or was damaged in shipping, contact your dealer.
  • Page 5: Table Of Contents

    UH3237 User Manual Table of Contents EMC Information ..........ii RoHS.
  • Page 6: About This Manual

    UH3237 User Manual About this Manual This user manual is provided to help you get the most from the UH3237 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below.
  • Page 7: Conventions

    Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 8 UH3237 User Manual This Page Intentionally Left Blank viii...
  • Page 9: Introduction

    /MicroSD, Ethernet and Audio connections. Enjoy stunning 4K video or a dual HD monitor setup with HDMI, and VGA functionality. The UH3237 routes video from a source computer to a HDMI monitor via a single cable while maintaining the highest quality 4K resolution.
  • Page 10: Features

    UH3237 User Manual Features  Expands up to 13 devices instantly through a USB-C cable  Supports USB power delivery 3.0 (PD3.0) for laptop charging up to 85W via USB-C PD power adapter – power profiles include 5V, 9V, 12V, 15V, 20V ...
  • Page 11: System Requirements

    Chapter 1. Introduction System Requirements Windows USB-C enabled computer:  - Windows® 10 (32-bit / 64-bit) and later  - With Intel 7th-Generation Core Processor (Kaby Lake with HD 6XX series integrated graphics) and later. Note: For more information about CPU generation, please go to https://www.intel.com/content/www/us/en/processors/processor- numbers.html ...
  • Page 12: Hardware Review

    UH3237 User Manual Hardware Review UH3237 (Side View) UH3237 (Rear View) Component Description 3.5mm Stereo 4- Connects to speakers or earphones. Pole Audio Jack with Microphone USB 3.2 Gen 1 Connects to a USB 3.2 Gen 1 Type-C peripheral storage Type-C Port (Data device.
  • Page 13: Hardware Setup

    2. Power on your laptop and connect the USB-C Host Connector of the UH3237 to the USB-C enabled computer. 3. For dual-view display, either connect two monitors to the UH3237’s HDMI Ports or connect one monitor to the VGA Port and the other monitor to HDMI Port 1.
  • Page 14: Configuration And Settings

    UH3237 User Manual 7. Connect an audio device (earphones or earphones with microphone) to the 3.5mm Stereo Audio Jack. Note: 1. Please plug in the USB-C power adapter to the USB-C DC-in Port before using the dock, as plugging or unplugging of the USB-C DC-in Port may cause a momentary disconnect on USB devices connected to the dock.
  • Page 15: Appendix

    Appendix Safety Instructions General  This product is for indoor use only.  Read all of these instructions. Save them for future reference.  Follow all warnings and instructions marked on the device.  Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 16 UH3237 User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes.  To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
  • Page 17: Technical Support

    Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand:  Product model number, serial number, and date of purchase  Your computer configuration, including operating system, revision level, expansion cards, and software ...
  • Page 18: Specifications

    5V, 15W. 3. For device charging, a Limited Power Source (LPS) certified USB-C PD power adapter over 65W is recommended. 4. The first 15W will supply to the UH3237, and the balance power will supply to the laptop. Performance...
  • Page 19 Appendix Function UH3237 Flash Memory 1 x SD Card Slot (SD/SDHC/SDXC) 1 x Micro SD Card Slot (Micro SD/SDHC/ SDXC up to 128G) Video Resolution Single HDMI 3840 x 2160 @30Hz View 1920 x 1080 @60Hz Dual HDMI1 1920 X 1080 @60Hz...
  • Page 20 UH3237 User Manual Function UH3237 Housing Top Cover - Aluminum Bottom Panel - Plastic Weight 0.37 kg (0.82 lb) Dimensions (L x W x H) 35.03 x 7.50 x 1.48 cm (13.79 x 2.95 x 0.58 in.)
  • Page 21: Limited Warranty

    ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
  • Page 22 UH3237 User Manual...
