- Page 1 UH3239 USB-C Mul port Mini Dock with Power Pass-Through User Manual...
-
Page 2: Compliance Statements
UH3239 User Manual Compliance Statements FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 UH3239 User Manual HDMI Trademark Statement The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. RoHS This product is RoHS compliant.
-
Page 4: About This Manual
UH3239 User Manual About this Manual This user manual is provided to help you get the most from the UH3239 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 5: Conventions
UH3239 User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 6: Product Information
For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... -
Page 7: User Notice
UH3239 User Manual User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 8: Table Of Contents
UH3239 User Manual Table of Contents Compliance Statements ........ii About this Manual . -
Page 9: Introduction

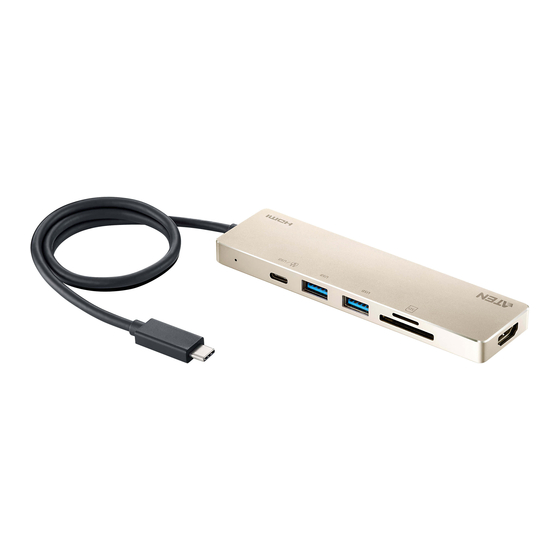

Introduction Overview The UH3239 USB-C Multiport Mini Dock is a portable device that helps you expand your USB-C workstation with a USB mouse, USB keyboard, monitor, external hard drive, SD card, and micro SD card, all through a USB-C port. -
Page 10: Getting Started Tasks
UH3239 User Manual Getting Started Tasks Follow the steps below to get started with your UH3239 USB-C Multiport Mini Dock. Step Task Detailed Information Unpack the package and check if you have the following: 1 x UH3239 USB-C Multiport Mini Dock with Power Pass-Through ... -
Page 11: Supported Host Devices And Requirements
Processor Version, page 12 and Identifying Computer’s System Architecture Version, page 13. USB-C port At least one USB-C port for connecting the UH3239 USB-C Multiport Mini Dock. DP Alt Mode To transmit video through a USB-C port, make sure your USB-C host device supports DP Alt Mode over the USB-C port, and that it has been enabled. -
Page 12: Mac-Based Usb-C Enabled Computer
MacBook 2015 or above MacBook Pro 2016 or above Mac OS X 10.12 or later USB-C port At least one USB-C port for connecting the UH3239 USB-C Multiport Mini Dock. iPadOS USB-C enabled Tablet Component Minimum Requirements ... -
Page 13: Components
Chapter 1. Introduction Components Component Description HDMI output Connects to an HDMI monitor for video display. port Micro SD card Receives a Micro SD card. slot SD card slot Receives an SD card. USB 3.2 Gen 1 Connects to USB peripheral devices. Type-A ports Note: We do not recommend to connect these ports to Bluetooth mouse or keyboard as it may cause interference... - Page 14 UH3239 User Manual This Page Intentionally Left Blank...
-
Page 15: Hardware Setup / Configuration
Please review the safety information regarding the placement of this device in Safety Instructions, page 9. Connecting the Unit Follow the steps below to connect the UH3239 unit. Support Check USB charge rate of your laptop* The total charging time may vary depending on the devices connected to the UH3239. - Page 16 UH3239 User Manual This Page Intentionally Left Blank...
-
Page 17: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. -
Page 18: Cables
UH3239 User Manual If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair. The power cord or plug has become damaged or frayed. Liquid has been spilled into the device. -
Page 19: Troubleshooting
USB-C host device with the rest of the power supply. When the total of power consumption of the UH3239 exceeds 15 W, a self- protection mechanism is activated, and some of the connected devices (excludes USB-C host device) may not be found. -
Page 20: Identifying Computer's System Processor Version
UH3239 User Manual Identifying Computer’s System Processor Version To identify the system processor version from your Windows-based USB-C computer, follow the steps below: 1. From your Windows-based USB-C computer, go to Control Panel > System. 2. This page appears. You should find the processor information there. -
Page 21: Identifying Computer's System Architecture Version
Appendix Identifying Computer’s System Architecture Version To identify the system architecture version from your Windows-based USB-C computer, follow the steps below: 1. From your Windows-based USB-C computer, go to Control Panel > Device Manager. 2. This page appears and click Display adapters to show the architecture version. -
Page 22: Specifications
UH3239 User Manual Specifications Function UH3239 Computer Connections Cable Length 55cm Connectors Computer 1 x USB 3.2 Gen1 Type-C Male Cable Device 2 x USB 3.2 Gen1 Type-A Female (Blue) Video Output 1 x HDMI Female (Black) Power 1 x USB Type-C Female (supports USB 3.2 Gen1 Type-C Port data transfer) Supports Power Delivery 2.0 for laptop charging up to... - Page 23 Appendix Function UH3239 System Requirements 1. Windows USB-C enabled computer: ® Windows 10 (32-bit / 64-bit) or above With Intel 7th-Generation Core Processor (Kaby – Lake with HD 6xx series integrated graphics) or above For video output to work through a USB-C port, it must support DP Alt Mode 2.
-
Page 24: Technical Support
UH3239 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://support.aten.com For telephone support, see Telephone Support, page vi: North America Email Support support@aten-usa.com Online Technical Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates... -
Page 25: Limited Warranty
© Copyright 2021 ATEN® International Co., Ltd. Released: 2021-08-10 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
