- Page 1 USB-C Multiport Dock with Power Charging USER MANUAL UH3230...
-
Page 2: Emc Information
EMC Information Federal Communication Commission Interference Statement: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. -
Page 3: Online Registration
UH3230 User Manual Online Registration International http://eservice.aten.com Telephone Support International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8-4481-58923 Technical Support For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com... -
Page 4: Package Contents

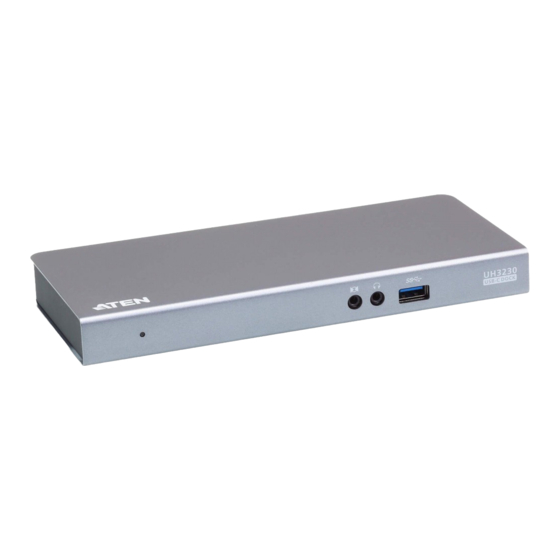

® Copyright © 2017 ATEN International Co., Ltd.® Manual Date: 2017-10-12 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 4 -... - Page 5 It supports dual view setups and a variety of video converters that can convert HDMI, DVI or VGA outputs for use in dual display modes. The UH3230 can route video from the source device to a DisplayPort and HDMI monitor, splitting the video transmission for a dual view display via a single cable while maintaining a high quality 4K resolution.
- Page 6 USB 3.1 Gen 1 front panel port supports Fast-Charging*** Note: 1. Mac computers only support a single-view output. 2. The UH3230 will not charge a device that uses a proprietary USB-C charging interface. Supported power profiles include 20V/3A, 20V/1.8A, 12V/3A, and 5V/3A.
-
Page 7: System Requirements
System Requirements Hardware 1 USB-C enabled computer Software Windows® 10 (32-bit / 64-bit) and above Mac OS X 10.12 and later* Note: 1. Multi-Stream Transport (MST) is not supported by Mac OS X. 2. Only one additional video output can be utilized for extended desktop under the Mac OS X. - Page 8 5 6 7 9 10 Component Description Power LED This LED lights green to indicate the UH3230 is powered on. Audio In Port The cable from your microphone plugs in here. Audio Out Port The cable from your speakers plug in here.
-
Page 9: Installation
3. Unzip the driver and run Setup.exe. The driver will install and a reboot might be necessary. 1. Download the Mac OS X driver from www.aten.com 2. Save the dmg file where you can easily locate it. 3. Run the dmg file. The driver will install and a reboot might be necessary. - Page 10 Hardware To setup the UH3230, use the diagram on the next page (the numbers in the diagram correspond with the numbered instructions below), and do the following: 1. Plug the included AC power adapter to the DC power port on the UH3230.
- Page 11 - 11 -...
-
Page 12: Configuration And Settings
Configuration and Settings Video Output Support Single or Dual Screen Resolution Frequency Mirror Mode Extended Mode 30 Hz (4096 x 2160) 30 Hz (3840 x 2160) 60 Hz (2560 x 1600) Full HD 60 Hz (1920 x 1080p) Monitor/Sound Settings External Monitor Settings: Mac OS X Option 1: Extend Mode 1. -
Page 13: Specifications
DisplayPort 1 2048 x 1200 @ 60 Hz* View HDMI 2 1920 x 1200 @ 60 Hz* DP++ *The UH3230 supports DP++ standard for using optional active/passive video adapters to convert DP signals to DVI/ HDMI. Power Consumption DC 20 V, 90 W... -
Page 14: Safety Information
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is defective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
